Fast Delivery High Security Metallic Casing Water Protection Standalone Access Control
US$ 46 - 54
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Biometric Time Recording
Biometric Measurement:
Fingerprint
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Nordson FR-MA300 Metal Network Fingerprint Access Control Terminal &Time AttendanceUS$ 86 - 92MOQ: 10 Pieces -
Hot Selling Biometric Time Attendance System Screw Terminal Biometric Fingerprint Time RecordingUS$ 86 - 92MOQ: 10 Pieces
-
CE/ROSH Certificated Fingerprint Time Attendance System/Electronic Time Clock Time Attendance/Monitoring SystemUS$ 62 - 68MOQ: 10 Pieces
-
Nordson FR-F18 Fingerprint Access Control &Time Attendance Terminal Wiegand Input&output Quality ChoiceUS$ 96 - 114MOQ: 10 Pieces
-
Nordson FR-F2 Fingerprint Access Control &Time AttendanceTerminal RS232 and RS485 With KeypadUS$ 70 - 85MOQ: 10 Pieces
Type
Biometric Time Recording
Biometric Measurement
Fingerprint
Place of Origin
Guangdong, China
Brand Name
Nordson
Model Number
FR-W1
Fast Delivery High Security Metallic Casing Water protection Standalone Access Control
Overview

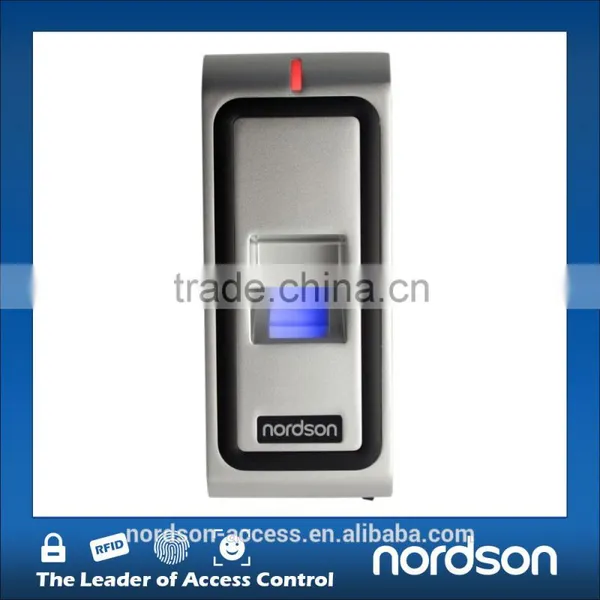

FR-W1 all-metal waterproof Fingerprint Access Control of CHINA,Fingerprint Access Control Terminal,IP65 waterproof grade,all-metal zinc alloy body, anti-sabotage and strong attacks, tamper design.Unique elongated design to use more convenient,can be installed on the door frame,unique activation fingerprint sensing,unique activation fingerprint sensing,32-bit low-power high-speed processors,stable and reliable, the new generation of fully enclosed waterproof and dustproof design,longer life and more reliable performance.
Funcation
1.Full Metal waterproof design,IP65 waterproof grade.

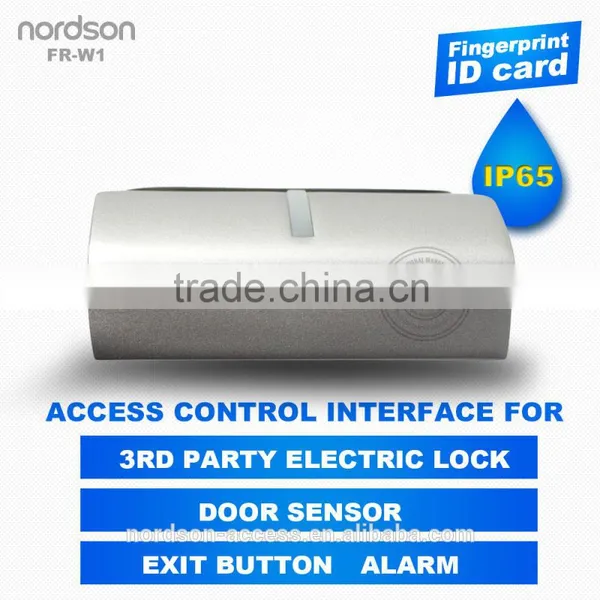

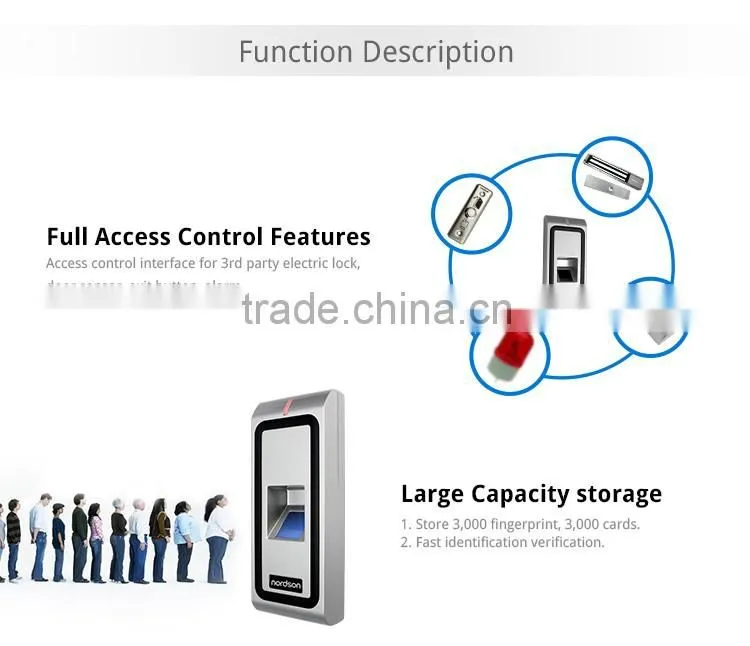

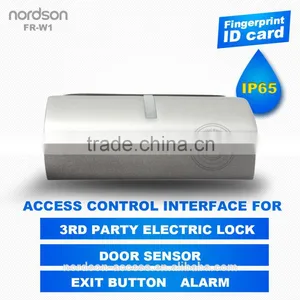

2.internal direct electric lock control, switch out,door magnetic detection (independent control mode).
3.optical induction fingerprint readers, standby dormancy
4.standard built-in RFID card and 125 KHZ,optional Mifare,realize the combination of card and fingerprint
5.standard administrator functions without PC can operate independently,operation more convenient
6.Wiegand output,seamless integration with all standard controllers
7.standard USB,U disk function
2.internal direct electric lock control, switch out,door magnetic detection (independent control mode).
3.optical induction fingerprint readers, standby dormancy
4.standard built-in RFID card and 125 KHZ,optional Mifare,realize the combination of card and fingerprint
5.standard administrator functions without PC can operate independently,operation more convenient
6.Wiegand output,seamless integration with all standard controllers
7.standard USB,U disk function
Specification
| CPU | ARM9 |

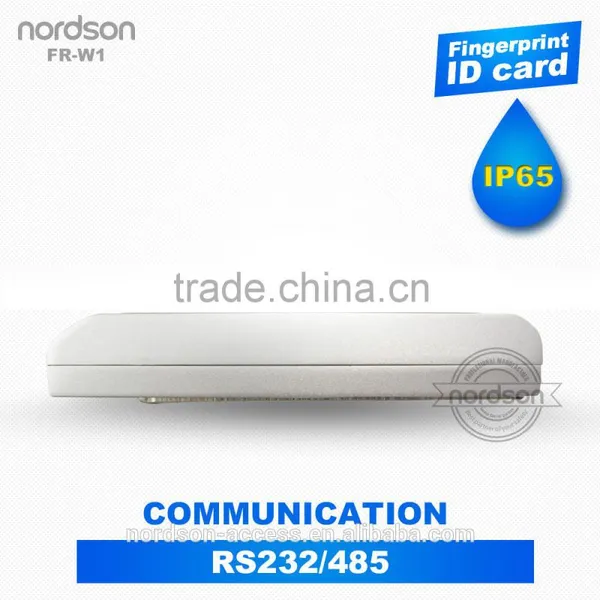

| Metallic Casing,Water protection grade | IP65 |

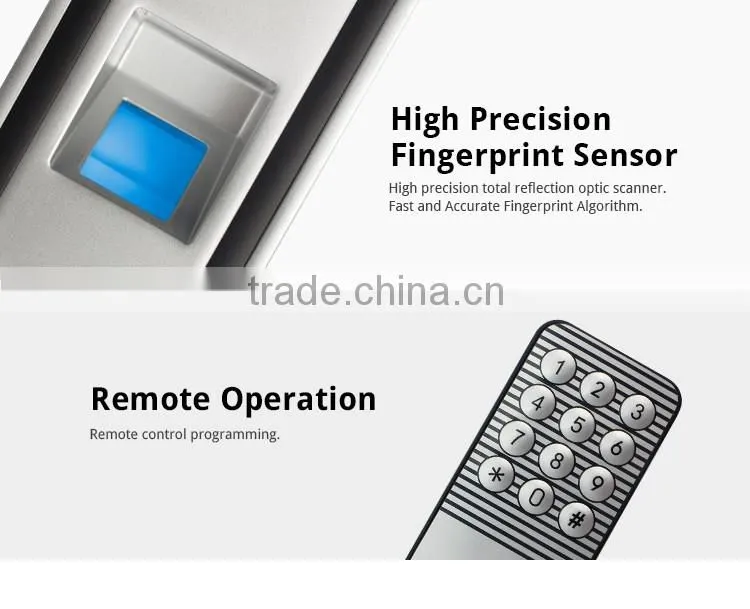

| Fingerprint sensor | Subminiature optical fingerprint scanner |
| Fingerprint activation method | Capacitive sensing |
| Fingerprint collecting area | 17mm*19mm |

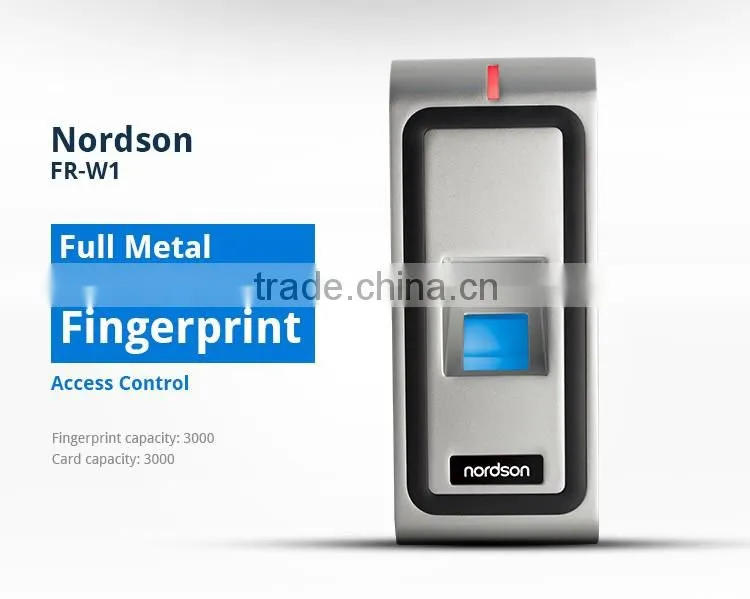

| Fingerprint capacity | 3000 |
| Card capacity | 3000 ID Card |
| Verification Method | Fingerprint, RFID |
| Identification time | < 1 second |

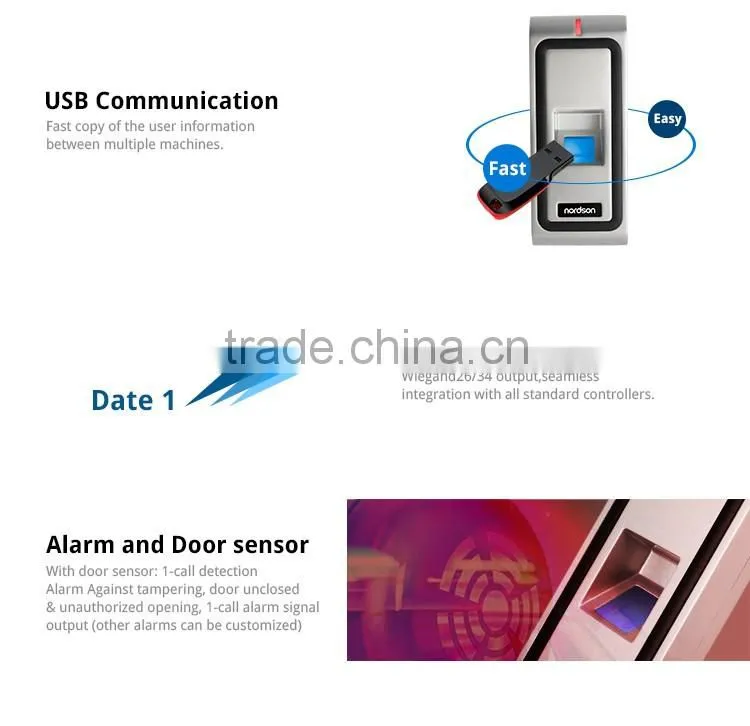

| Communication interface | USB-Disk |
| Prompt tone | Human voice |
| Electric lock | Direct control |
| Relay | DC 12V |

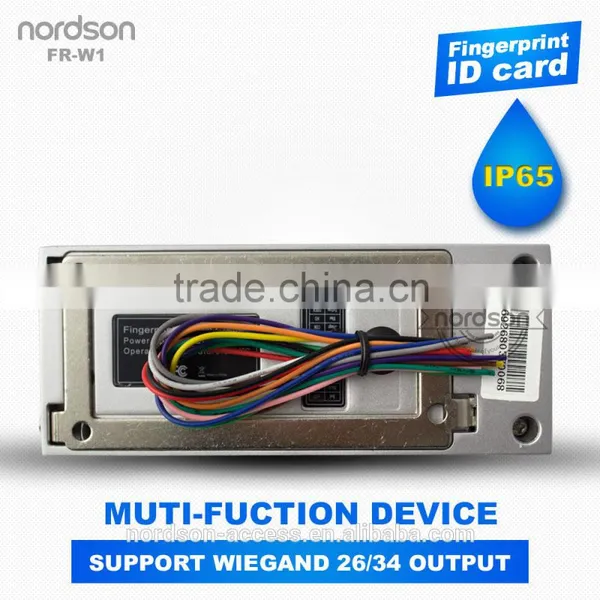

| Wiegand | Wiegand 26/34 Output |
| Door sensor | 1-call detection |
| Alarm | Against tampering, door unclosed & unauthorized opening, 1-call alarm signal output (other alarms can be customized) |
| Shell | ABS |
| Operation temperature | -15℃~65℃ |

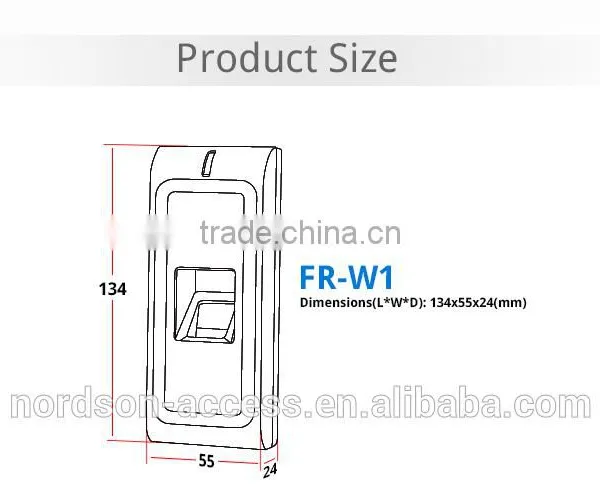

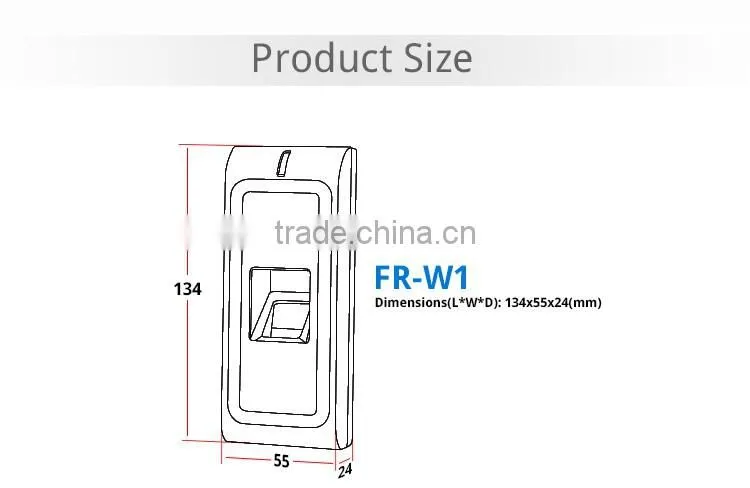

| Dimensions | 134x55x24mm |
| Gross Weight | 0.65kg |
| Applications | SME, hotel, restaurant, real estate industry, government office, financial industry, educational and training institution |

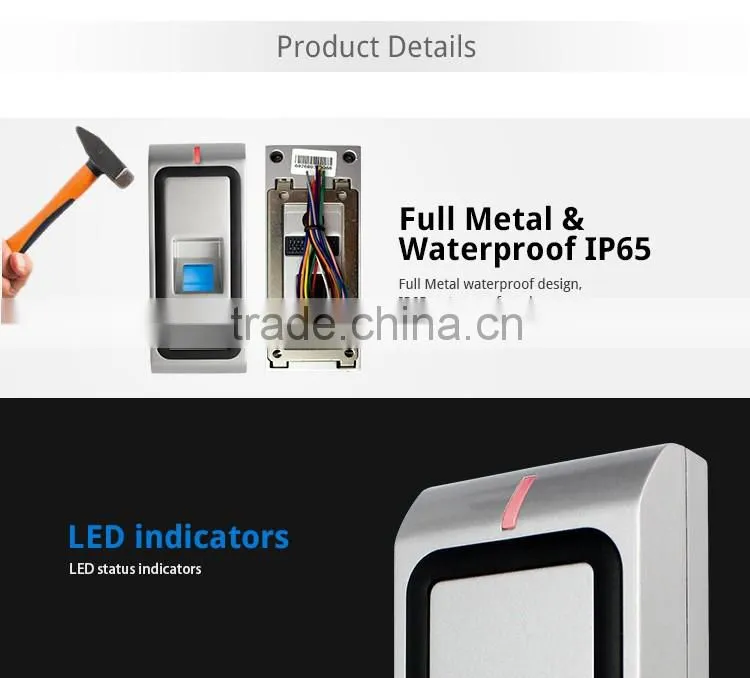

Product Details
Scope of Application
Our Factory
Warranty
Nordson's Partner
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2012
Factory Size
5,000-10,000 square meters
Total Employees
51 - 100 People
