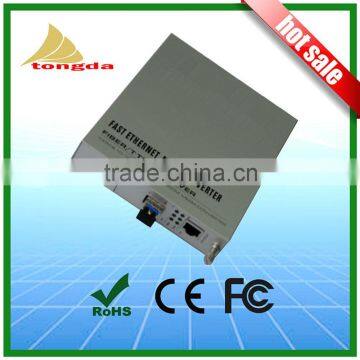

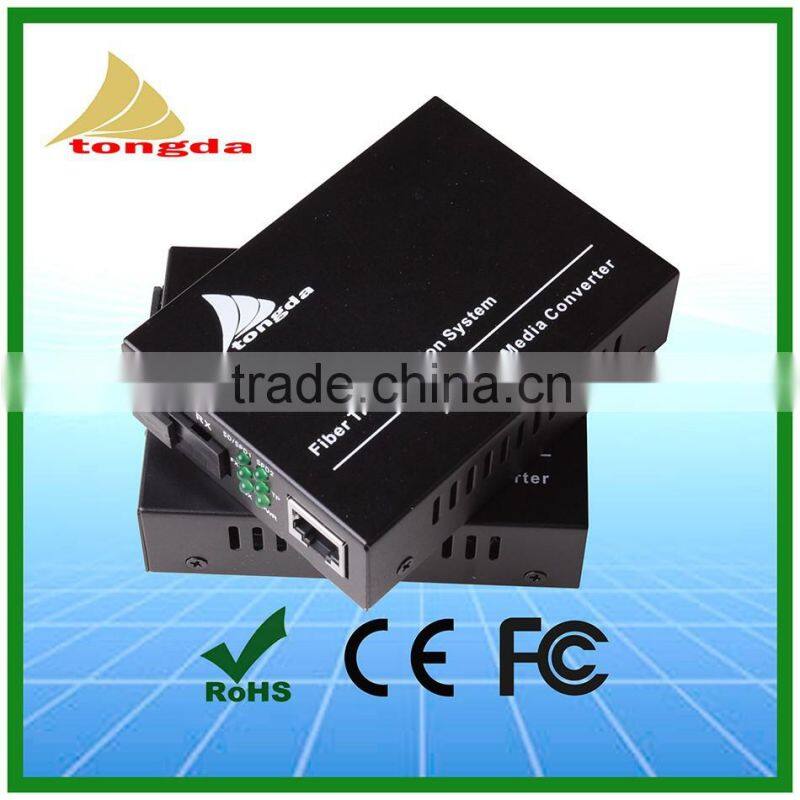

Made in China 10/100M 20KM Single Fiber Single Mode Fiber Media Converter

Name: Made in China 10/100M 20KM Single Fiber Single Mode Fiber Media Converter
Brand: Atongda
SKU: 114826497
Availability: InStock

US$ 1 - 18 MOQ: 50 Pairs

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Atongda

Model Number:

ATD-A110-SS320(ATD-A110-SS520)

Shenzhen Atongda Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Atongda

Model Number ATD-A110-SS320(ATD-A110-SS520)

made in china 10/100Mbps 20KM Single Fiber Media Converter

Description

Ø 10/100M optical media converter can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX).
Ø It could extend traditional 10/100M Fast Ethernet to the distance of 90km through single optical fiber link. It possesses stable performance and good quality by adopting latest IC from USA and Taiwan.
Ø It must be used in couples,because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters.
Ø It is easy for users to observe network operation.

Features

Ø Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex.
Ø The UTP port supports MDI/MDI-X auto crossover.
Ø Supporting 1600 bytes packet for management.
Ø Internal circuit of prevented thunder could greatly reduce damage of converters caused by thunderbolt induction.
Ø Indicator function of link fault (LFP): When optical fiber is at fault, the converter could stop all the link. (Optional)
Ø Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.

Technical Specification

Operating standards:	IEEE802.3 10BASE-T Ethernet IEEE802.3u,10/100Base-TX and 100Base-FX; IEEE802.3x
Data buffer:	128K.
Wavelength:	1310nm/1550nm
Cable UTP:	20-120Km
Fiber ( Singlemode):	SC/ST/FC
Network Cable:	10BASE-T: Category 3,4 or 5 UTP/STP (Max:100m) EIA/TIA- 568 100 Ω STP (Max:100m) 100BASE-TX: 2pairs of category 5 UTP (Max:100m) EIA/TIA- 568 100 Ω STP (Max:100m) 100BASE-FX: SMF:8.3/125,8.7/125,9/125,10/125μm (20~120km)
LED Power:	FX SD, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power Requirement:	AC 110 ~ 240V to DC 5V; DC48V to DC 5V.
Ambient Temperature:	0 ~ 55°C
Storage Temperature:	- 40 ~ 70 °C
Humidity:	5 ~ 90%
Dimensions:	Internal power: 30×110×140mm
Dimensions:	External power: 26×70×93mm

Product List

10/100M Single Fiber Media Converter (Internal power)
Model	Description
ATD-A110-SS320 ATD-A110-SS520	Single fiber, Single-mode, 0-20km, SC/ST/FC, inside power,
ATD-A110-SS340 ATD-A110-SS540	Single fiber, Single-mode, 0-40km, SC/ST/FC, inside power,
ATD-A110-SS360 ATD-A110-SS560	Single fiber, Single-mode, 0-60km, SC/ST/FC, inside power,
ATD-A110-SS380 ATD-A110-SS580	Single fiber, Single-mode, 0-80km, SC/ST/FC, inside power,
10/100M Single Fiber Media Converter (External power)
ATD-B110-SS320 ATD-B110-SS520	Single fiber, Single-mode, 0-20km, SC/ST/FC, external power,
ATD-B110-SS340 ATD-B110-SS540	Single fiber, Single-mode, 0-40km, SC/ST/FC, external power,
ATD-B110-SS360 ATD-B110-SS560	Single fiber, Single-mode, 0-60km, SC/ST/FC, external power,
ATD-B110-SS380 ATD-B110-SS580	Single fiber, Single-mode, 0-80km, SC/ST/FC, external power,
