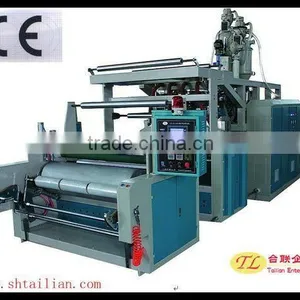

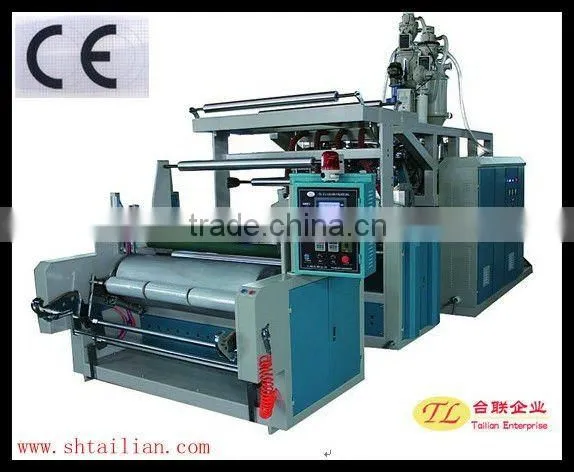

Tl Single Stretch Film Making Machine
US$ 43,000 - 58,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1000mm Two Layers Co-extrusion Stretch Film MachineUS$ 10,000 - 52,000MOQ: 1 Set -
Double Layer Co-extrusion Stretch Film MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Automatic Stretch Film Rewinder MachineUS$ 4,500 - 6,000MOQ: 1 Set
-
TL-500-55*2 Two Layer Co-extrusion Stretch Film MachineUS$ 21,000 - 22,000MOQ: 1 Set
-
TL-1500 mm Two Layer Air Bubble Film MachineUS$ 20,000 - 60,000MOQ: 1 Set
Condition
New
Application
Film
Plastic Processed
PE
Screw Design
Double-screw
Place of Origin
Shanghai, China
Brand Name
Tailian
Model Number
TL-1500
Specifications
Cast stretch film machine1,high output,stable quality
2,wide applicable range
3,durable and reliable
( Products show )

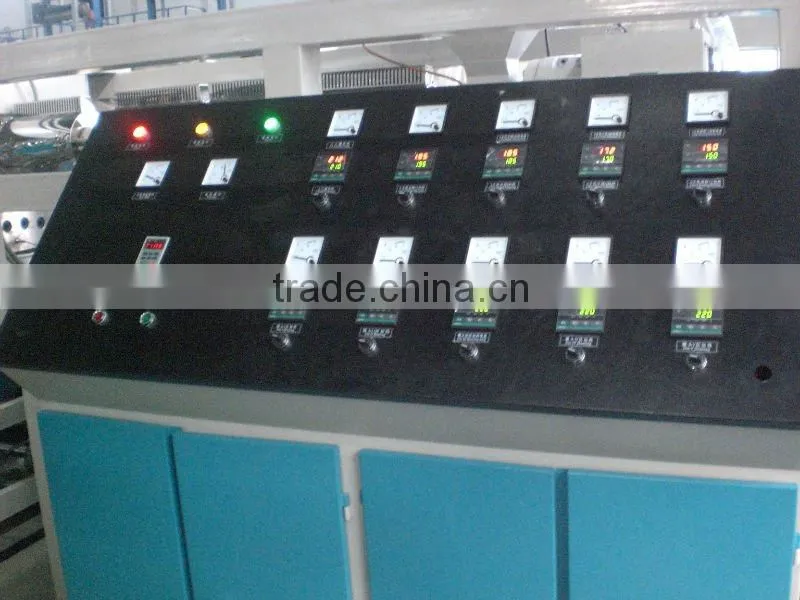

distribution box
plastic stretch film machine:This unit uses LLDPE as main material and adopts several kinds of resigns to manufacture the single/double-side self-sticky stretch wrapping film,the film has good tensile strength,anti-pricking ablilty and impact strength.its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust.the transparency and tensile strength of this product can make the packaging beautiful,economical and practical,the film can be widely used in wrapping of pelletized goods,it’s a good substitude for hot shrinking packing film during transportation.
| MODEL | TL-A1000mm | TL-B1000mm | TL-A1500mm | TL-B1500mm | TL-C1500mm |
| Screw diameter | 75mm | 65mm x2 | 90mm | 75mm x2 | 55x55x90mm |
| L/D ratio of screw | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| width of die head | 1250mm | 1250mm | 1750mm | 1750mm | 1750mm |
| width of finished products | 1000(500X2)mm | 1000(500X2)mm | 1500(500X3)mm | 1500(500X3)mm | 1500(500X3)mm |
| thichness of finished products | 0.008-0.05mm | 0.008-0.05mm | 0.008-0.05mm | 0.008-0.05mm | 0.008-0.05mm |
| structure of film layers | _ | A/B | _ | A/B | A/B/C |
| Max outpu | 60-80kg/h | 70-90kg/h | 80-120kg/h | 100-140kg/h | 120-160kg/h |
| linear speed of machinery | 50-100m/min | 50-100m/min | 50-100m/min | 50-100m/min | 50-100m/min |
| Total power | 70kw | 80kw | 110kw | 110kw | 140kw |
| overall dimension(LXWXH) | 10x4x3m | 10x4x3m | 11x4.5x3m | 13x4.5x3m | 15x4.5x3m |
| Weight(about) | 6T | 8T | 8T | 9T | 11T |
