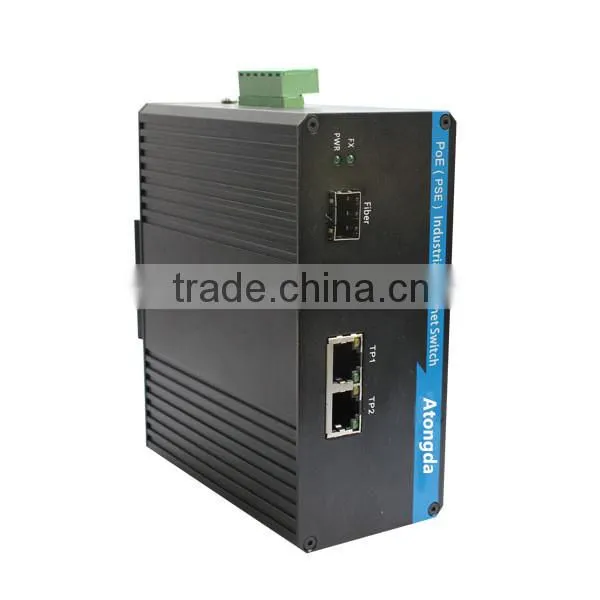

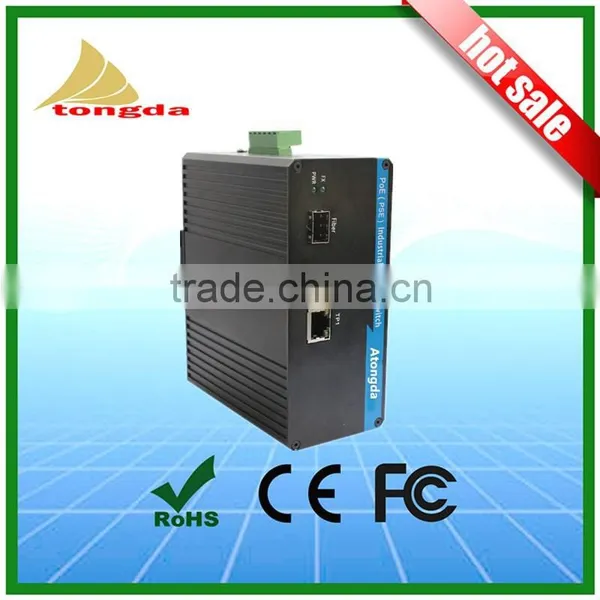

30W Ieee802.3at Poe Industrial Fiber Switch 10/100/1000M

Name: 30W Ieee802.3at Poe Industrial Fiber Switch 10/100/1000M
Brand: Atongda
SKU: 114825485

US$ 1 - 254 MOQ: 2 Pairs

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Atongda

Model Number:

ATD-GP-110

Shenzhen Atongda Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Atongda

Model Number ATD-GP-110

30W ieee802.3at industrial switch 10/100/100 poe

Product Description

Comply to IEE 802.3 10Base-T,IEEE802.3u ,100Base-TX/FX
Provide a SC single-mode /multimode optical port and 10/100M RJ45 port, support for Full/half duplex mode and auto MDI/MDI-X connection
Comply to IEEE 802.3af , provide power for the IP cameras over Ethernet
Dynamic LED indicator, display the current operating status, providing a simple working condition and troubleshooting tips
Adopt IEEE 802.3x Standard full-duplex flow control ,with standard duplex Backpressure flow control

Description

1, Wide Operate Temperature : -45°C~80 °C

2, PoE (PSE) IEEE802.3af /at Compliant

3, Redundant dual power input booster : 48V DC (46~50VDC)

4, industrial grade EMS certified

5, Support OP-Ring, proprietary technology ( patent Protocol )

6, OP-Ring protection and recovery within 15ms

7, IP 40 Protection grade housing protection

8, Full /Half duplex mode

9, DIN-Rail and Wall Mounting Installation ,flexible and convenient

10, Web-based,CLI management(Unmanagement optional)

Specification

Standards:	IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX	Input Voltage:	Input Voltage: 48V DC (46~50VDC) Redundant power input Overload Current Protection Support dual power backup Support dual power alarm input Connection: 6 pin terminal
RJ45 port rate:	10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection	Input Voltage:
Fiber Ports:	100BaseFX ports (SC/ST/FC/LC connector, optional)	Casing:	IP40 protection, Aluminium Alloy
Multi-mode:	2,5Km,optional	Instanation:	DIN-Rail or wall mounting
Wavelength Input Voltage	850nm, 1310 nm, 1550nm	EMI	FCC Part 15, CISPR (EN55022) class A
Wavelength Input Voltage	48V DC(46~50VDC)	EMI
Typical 100Base-FX	155Mbps, 1310nm, 2Km, average output≥-18dBm, sensitivity≤-35dBm	EMS:	EN61000-4-2 (ESD),Level 3
			EN61000-4-3 (RS),Level 3
			EN61000-4-4 (EFT),Level 3
	Single-mode:155Mbps, 1310nm, 20Km, average output≥-12dBm, sensitivity≤-36dBm		EN61000-4-5 (Surge),Level 3
			EN61000-4-6 (CS),Level 3
			EN61000-4-8,Level 3
Warranty	5 year	Shock:	IEC 60068-2-27 PASS
Dimensions:	60.5 x 118 x 140mm	Free Fall	IEC 60068-2-32 PASS
Weight:	720g	Vibration:	IEC 60068-2-6 PASS
