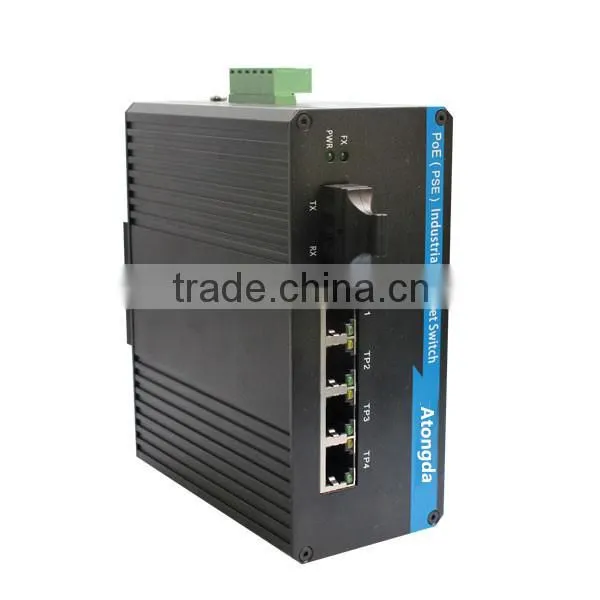

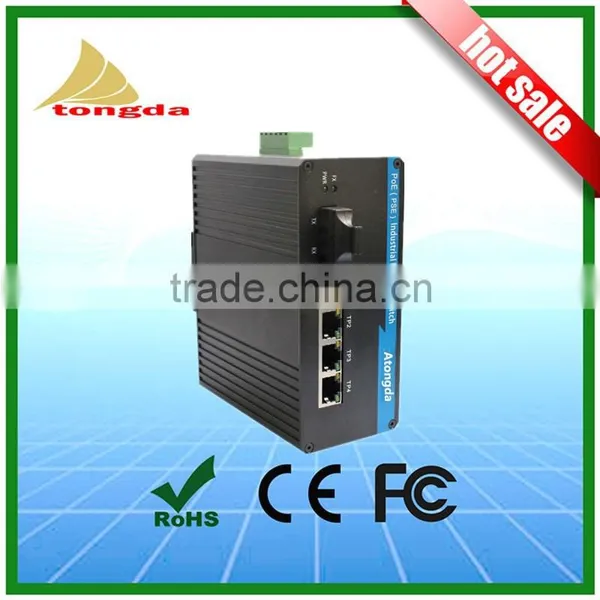

4 Port Unmanaged 10M/100M Industrial PoE Switch

Name: 4 Port Unmanaged 10M/100M Industrial PoE Switch
Brand: Atongda
SKU: 114825503

4 Port Unmanaged 10M/100M Industrial PoE Switch thumbnail-1

4 Port Unmanaged 10M/100M Industrial PoE Switch thumbnail-2

4 Port Unmanaged 10M/100M Industrial PoE Switch thumbnail-3

4 Port Unmanaged 10M/100M Industrial PoE Switch thumbnail-4

4 Port Unmanaged 10M/100M Industrial PoE Switch photo-1

4 Port Unmanaged 10M/100M Industrial PoE Switch photo-2

4 Port Unmanaged 10M/100M Industrial PoE Switch photo-3

4 Port Unmanaged 10M/100M Industrial PoE Switch photo-4

US$ 1 - 358 MOQ: 2 Pairs

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Atongda

Model Number:

ATD-GP-104

Contact Supplier Request Quote Chat Now

Shenzhen Atongda Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Atongda

Model Number ATD-GP-104

4 Port Unmanaged 10M/100M Industrial PoE Switch

Desctription

This unmanaged Ethernet PoE switch is specialized for harsh industrial environment. It is classified as power resource

equipment, which can be used to power IEEE 802.3af/at compliant powered devices, eliminates the need of additional

wiring.

With simple operation, excellent quality and competitive price, it provides an economical solution for your industrial

Ethernet network, which is also specially designed for the needs of multiplex broadband access with limited optical fibers.

Features & Benefits

v 4 IEEE 802.3af/at PoE compliance 10/100Base-T(X) ports and 1 100Base-FX port

v Up to 30W at 48V DC power output on each PoE port

v Super lightening protection, IP40 protection

v Excellent heat elimination without cooling fan

v Redundant dual DC power inputs

v -40℃-85℃ operating temperature range

Specification

Switch Properties

v MAC Table Size: 2K

v Packet Buffer Size: 6KX64bit

v Processing Type: Store and Forward

v Exchange Properties: 148800pps (100M)

Physical Characteristics

v Housing: Aluminum Alloy material with IP40 Protection

v Dimension: 138mm(L) X 112mm(W) X 60mm(H)

v Weight: 640g

v Installation: Din-Rail mounting, Wall mounting

Interfaces

v 4 RJ45 Ports

v Comply with IEEE802.3, IEEE802.3u, 10/100Base-T(X), IEEE802.3af/at PoE,

v 10/100Base-T(X) auto negotiation speed

v Full/Half duplex mode

v Auto MDI-MDI-X connection

v Up to 100M Cat-5 transmission distance

1 Fiber Port

v Comply with IEEE802.3u, 100Base-FX

v Rate: 100Mbps

v Wavelength: 1310nm/1550nm

v Up to 2Km transmission distance with multi-mode

v Up to 20km,40km,60km,80km transmission distance with single-mode

v SC/ST/FC interfaces optional

Power

v Input Voltage: 48V DC(46-56VDC), Redundant dual inputs

v Input Current: <0.5A @24VDC

v Overload Current Protection: Present

v Reverse Polarity Protection: Present

v Redundant Protection: Present

v Connection: 1 removable 6-pin terminal blocks

Environmental Limits

v Operating Temperature: -40℃-85℃

v Storage Temperature: -40℃-85℃

v Ambient Relative Humidity: 5%-95% (non-condensing)

Standard

v Safety: UL 60950-1

v EMS:

EN61000-4-2 (ESD),Level 3

EN61000-4-3 (RS),Level 3

EN61000-4-4 (EFT),Level 3

EN61000-4-5 (Surge),Level 3

EN61000-4-6 (CS),Level 3

EN61000-4-8,Level 3

v Shock: IEC 60068-2-27

v Free Fall: IEC 60068-2-32

v Vibration: IEC 60068-2-6

v EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

v Industry: IEC61000-6-2

v Rail: EN50155, EN50121-4

v Traffic: NEMA TS-2

Warranty

5 years

Models Available
Model No	Description
Dual Fiber
AT-GYFP104BM	multi-mode; 2Km; SC/ST/FC interfaces optional
AT-GYFP104BS20	Single-mode; 20Km; SC/ST/FC interfaces optional
AT-GYFP104BS40	Single-mode; 40Km; SC/ST/FC interfaces optional
AT-GYFP104BS60	Single-mode; 60Km; SC/ST/FC interfaces optional
AT-GYFP104BS80	Single-mode; 80Km; SC/ST/FC interfaces optional
Single Fiber
AT-GYFP104BSF/20	Single-mode; 20Km; SC/ST/FC interfaces optional
AT-GYFP104BSF/40	Single-mode; 40Km; SC/ST/FC interfaces optional
AT-GYFP104BSF/60	Single-mode; 60Km; SC/ST/FC interfaces optional
AT-GYFP104BSF/80	Single-mode; 80Km; SC/ST/FC interfaces optional
