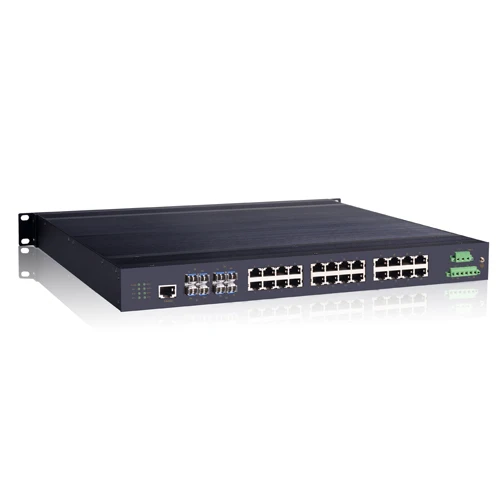

24 Ports Gigabit Rack Mounted Managed Industrial Ethernet Switch
US$ 1 - 1,089
MOQ: 1 Pair
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Atongda
Model Number:
ATDIES-8024, ATDIES-8024
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial 1x100Base-FX +2x10/100Base-TX Ethernet Fiber Optic TransceiversUS$ 1 - 59MOQ: 1 Pair -
Industrial SFP 1x1000Base-FX +2x10/100/1000Base-TX Gigabit Ethernet Fiber Optic Media ConverterUS$ 1 - 85MOQ: 1 Pair
-
Industrial 1SFP 1000Base-FX +2 RJ45 10/100/1000Base-TX Gigabit Ethernet Fiber Optic Media ConverterUS$ 1 - 85MOQ: 1 Pair
-
Industrial 1x1000Base-FX +2x10/100/1000Base-TX Gigabit Ethernet Fiber Optic TransceiversUS$ 1 - 65MOQ: 1 Pair
-
6 Port 2 Fiber to 6RJ45 Managed Industrial PoE Optical Fiber SwitchUS$ 1 - 485.5MOQ: 2 Pairs
Place of Origin
Guangdong, China
Brand Name
Atongda
Model Number
ATDIES-8024, ATDIES-8024
24 Ports Gigabit Rack mounted Managed
Industrial Ethernet Switch
Features:
1, Modular design
2,4 Gigabit Optic and RJ45 combo port, 44 10/100/1000Base-TX Self-adaption Ethernet RJ45 Interface
3, Support: RIP, OSPF protocol
4, Based on MW-Ring technology, support MSTP and VRRP
5,Clustering technology
6, Redundance dual power supply
7, Anti-electromagnetic interference
Product Performance
|
24 Ports Gigabit Rack mounted Managed Industrial Ethernet Switch ATISCOM 8024 Serial | ||
| Models | ||
| ATISCOM8024-4GX-24GE | 4×Gigabit optic and RJ45 combo Port+24×10/100/1000Base-TX | |
| Interface | ||
| Combo Port |
1000Base-X Gigabit SFP Port 10/100/1000Base-TX Self-adaption RJ45 Interface |
|
| 10/100/1000Base-TX | Self-adaption RJ45 Interface | |
| Console port | RS232, R45 | |
| Fiber Optic Port-Optional |
Multi mode/Single mode ST/SC/FC |
|
| Communication Distance | ||
| Twisted-pair | 100m | |
| Fiber optic line |
Multi mode: 850mm, 550m (1000Base) Single mode: 1310nm, 10Km/40Km (1000Base) 1550nm, 60Km/80Km(1000Base) |
|
| Topology Structure | ||
| Support | Chain network/Star network/Ring network | |
| Power | ||
| Power | Redundant dual power supply | |
| Power Supply | AC85~265V/DC110~370V | |
| Power consumption | <59w | |
| Alarm output | MAX: Current (1A@24VDC) Voltage (500VDC) | |
| Support | Over-load protection, reverse connection, Redundance | |
| Backplane bandwidth | 96G | |
| MAC | 16k | |
| IEEE Standard | IEEE802.3,IEEE802.3u,IEEE802z,IEEE802.1x,IEEE802.3x,IEEE802.1p, IEEE802.1q,IEEE802.1d/w | |
| Protocol | MW-Ring,Port-based VLAN, 802.1q VLAN, TRUNK, Qos, 802.1p/1q and Tos/DiffServe, IGMP Snooping, RSTP, SNMPv1/v2c, MSTP,VRRP | |
| Environmental | ||
| Operating temperature | -40℃~85℃ | |
| Storage temperature | -45℃~85℃ | |
| Ambient Humidity | 5%~95% | |
| Front Panel | ||
| Working | RUN | |
| Power lights | PWR | |
| Interface lights |
Link/ACT, Speed (100Base FX) Link/ACT, G Speed (1000Base FX) |
|
| Physical Data | ||
| Material | Aluminium housing | |
| Size | 483mm×44mm×405mm | |
| Weight | 2.7kg | |
| Installation | 19inch 1U | |
| IP | 40 | |
| Electromagnetic Compatibility | ||
| EMI | EN55022 Class A | |
| EMS | ||
| EN61000-4-2 | Anti-static; ±8KV Contact discharge; ±15KV Air discharge | |
| EN61000-4-3 | Electromagnetic field 10V/m (80~1000MHz) | |
| EN61000-4-4 | EFT , Power Line: ±4KV ; Date Line: ±2KV | |
| EN61000-4-5 | Surge Voltage, Power Line: ±2KV/DM, ±4KV/CM ; Date Line: ±2KV | |
| EN61000-4-6 | Antistatic conductive 3V (10KHz~150KHz), 10V (150KHz~80MHz) | |
| IEC68-2-6 | Shake | |
| IEC68-2-27 | Impact | |
| IEC68-2-32 | Free-falling | |
| Accessories | ||
| ATD-FCZ-RJ45-01 | Dust cover (Free) | |
