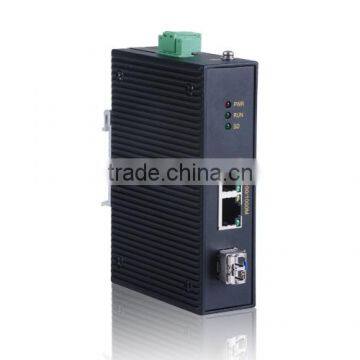

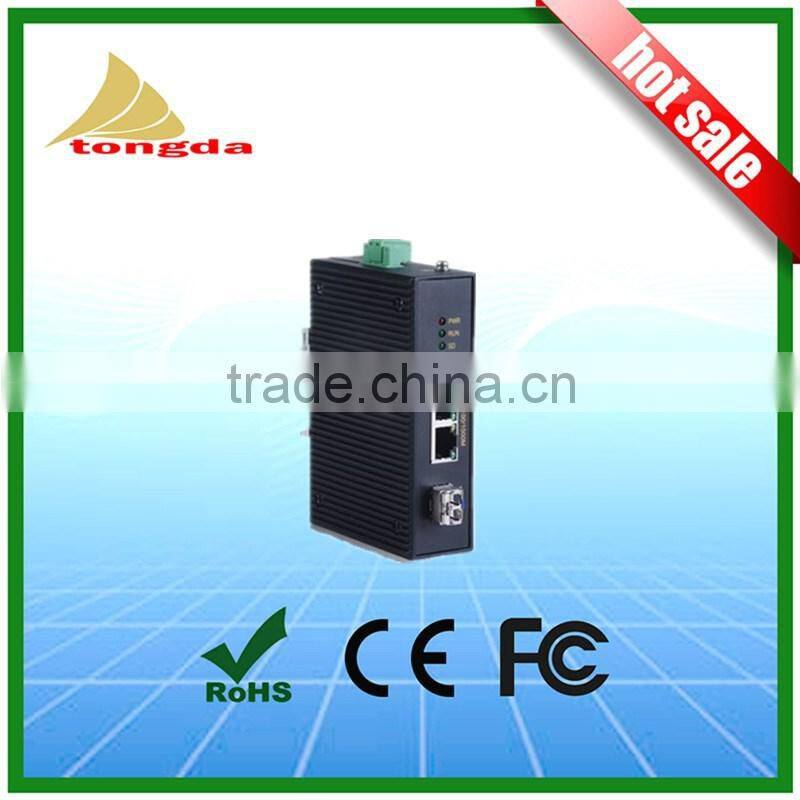

Industrial SFP 1000Base-FX +2x10/100/1000Base-TX Gigabit Ethernet Fiber Optic Transceivers Media converter
Specifications
1.Self-adaption,
2.Full/half Duplex, MDI/MDIX
3.Industrial
4.Over Voltage,
5.over current protection
1×1000Base-FX +2×10/100/1000Base-TX Gigabit Ethernet Fiber Optic Transceivers
Features:
1×1000Base-FX +2×10/100/1000Base-TX Gigabit Ethernet Fiber Optic Transceivers
- 1. RJ45 Port 10/100M Self-adaption, Full/half Duplex, MDI/MDIX Auto connection
- 2. Wide-range working temperature
- 3. IP 40
- 4. Industrial power design, Over Voltage, over current protection
- 5. LED Lights
1×1000Base-FX +2×10/100/1000Base-TX Gigabit Ethernet Fiber Optic Transceivers | |
Models |
|
MIGE1203-GS/GM |
1×1000Base-FX +2×10/100/1000Base-TX |
Interface | |
10/100/1000Base TX Port |
10/100Base-TX Self-adaption Ethernet RJ45 |
1000Base FX Port |
1000Base-X Gigabit SFP Interface |
Fiber Optical Port |
Multi mode=GM/Single mode=GS LC Interface |
Communication Distance | |
Twisted-pair |
100m |
Fiber optic line |
Multi mode: 1310nm, 5Km (1000Base) Single mode: 1310nm, 10Km/40Km (1000Base) 1550nm, 60Km/80Km(1000Base) |
Power | |
Power Supply |
DC12-48V |
Power consumption |
<5W |
Support |
Over-load & reverse protection |
MAC |
1K |
Backplane/Forward rate |
6G/1.25G |
IEEE Standard |
IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z |
Environmental | |
Operating temperature |
-40°C~85°C |
Storage temperature |
-45°C~85°C |
Ambient Humidity |
5%~95% |
Front LED Lights | |
Power lights |
PWR |
Interface lights |
Link/ACT, Speed (TX) Link/ACT ( FX) |
Physical Data | |
Material |
Aluminium housing |
Size |
114mm×80mm×33mm |
Weight |
0.3kg |
Installation |
Din-rail/Wall-mounted |
IP |
40 |
Accessories |
|
MW-FCZ-RJ45-01 |
RJ Dust cover |
