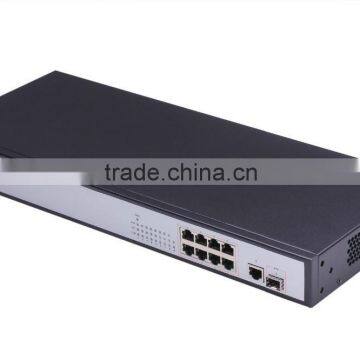

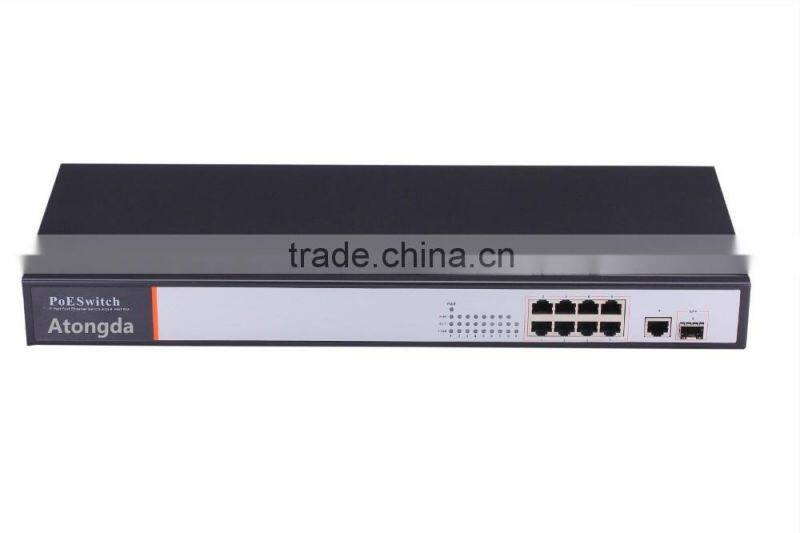

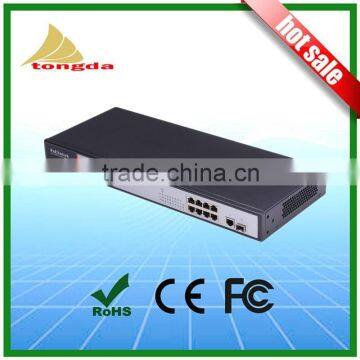

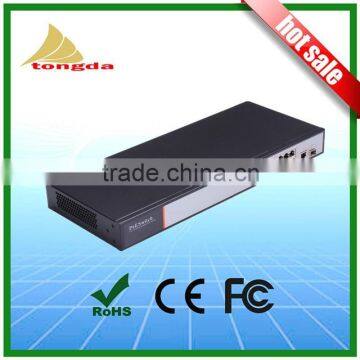

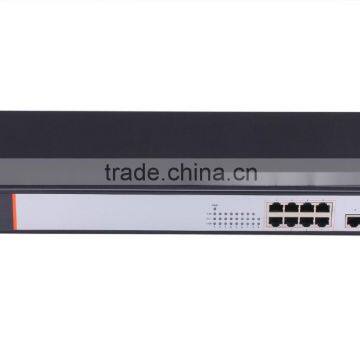

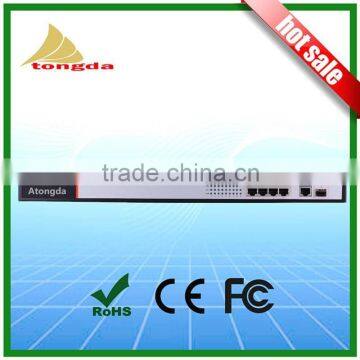

High quality 8 Port 100 Mbps Internal high Power 150W High Power PoE fiber optic Switch
Overview:
ATP1008P Series POE Switch compliance with IEEE802.3at standard, with power supply distance within 100meter, and support 802.3af/at terminal device. Therefore, there is no need to worry about damaging private standard PoE or non-PoE device. In addition, when the PoE is not connected, it will stop power supply. PoE switch supply power and transfer date by network cables, network cables do not require a qualified electrician to fit them, and can be located anywhere, so reducing the time and expense of having electrical power cabling installed. It is also very compact and flexible in design.ATP1008P Series is the ideal choice for those who desire to economically use PoE to deploy wireless access point and small-size commercial network that is based on IP camera.
Features:
§ IEEE 802.3at Power over Ethernet PoE compliant
§ Supports 10/100Mbps fast Ethernet
§ 8 x 100M bit Auto-MDIX PoE port, 1 gigabit uplink,1 gigabit SFP
§ Select Uplink/SFP, can’t use at the same time
§ Internal power supply
§ Provides up to 30 watts for each PoE port
§ Automatically detects the PoE class level of a Powered Device
§ 5.6Gbps Backplane bandwidth
§ Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps
§ Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity
§ Full wire-speed non-blocking reception and transmission
§ Store-and-forward switching method
§ Back pressure Flow Control for Half-Duplex mode
§ IEEE 802.3x Flow Control for Full-Duplex mode
§ Power saving technology powers down unused ports and when a connected device is in standby mode
§ Plug and Play
§ Sturdy rack mountable metal case
§ Easy installation and use , no need to convert by software and network protocol
§ 1-year limited warranty
Technical Specification
Network port |
10/100Mbps POE port (8 ports) 10/100M/1000Mbps Uplink (the 9th) 10/100M/1000Mbps SFP (the 10th) |
Speed |
100M/1000Mbps full duplex Internet port:100BASE-T or 1000BASE-TX POE RJ-45 port |
Function standard |
· Bandwidth:3.6Gbps ·Network delay(100 to 100M bps):Max 20 microsecond · Packet buffer memory:96KB ·Database size:1,024 MAC address 1000Mbps/ 1488.00 pps, 100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps |
Network standard |
· IEEE 802.3i 10BASE-T · IEEE 802.3u 100BASE-TX · IEEE 802.3x Flow Control · IEEE 802.3at Power over Ethernet |
LEDs indicator |
Power, PoE, Link / Activity |
Power adapter |
Built-in 250W power adapter |
Size |
dimensions: 280 x180x 35 mm weight:2kg |
Environment |
Work temperature:0°~40°C(32°~104°F) Humidity:10%~ 90%(non-condensing) |
Electromagnetism compatibility |
CE Class B FCC Part 15,Class B VCCI Class B C-Tick |
Safe standard |
CE/LVD |
Certification |
CE. FCC ROHS |
Warranty |
1 year warranty |
User Guide
1.Check the PoE switch
(1)Please check the enclosure,RJ45 ports,LED indicators ,sure they are ok.
(2)Connect the PoE switch with power,make sure the initialization of PoE switch is available as below:
POE indicator is off at the beginning when power connected
PWR indicator is on and keeps
Other green indicators will be on ,then off after one or two seconds
