Hot selling 16 port PoE Switch
2 gigabit combo port IEEE802.3 af /at standard
The 16 Port unmanaged PoE Switch, with 16 100Mbit RJ45 ports,2 Gigabit Como, model ATP1016S, reduces equipment and installation costs by delivering data and power over existing Ethernet cables to Power over Ethernet (PoE) enabled devices such as Access Points and IP Cameras.
Boost office efficiency and reduce network congestion with a total switching capacity of 7.2Gbps. LED indicators display device status for easy power management and troubleshooting. An internal power supply reduces clutter and delivers 30 Watts to each PoE port. A convenient on/off button is located on the back of the switch. Non-PoE devices can connect to the switch—auto sensing PoE technology cuts power to non PoE connected devices. Use PoE Splitter with the ATP-1016S to install non-PoE devices in remote locations.
Key features
• 16-Port 10/100Mbps + 2 Gigabit Como unmanaged PoE Switch
• 16-Port support power to PoE Powered Device
• Complies with the IEEE 802.3f/at standard
• If 8 POE port work only, then complies with IEEE 802.3at standard,25W each port
• Each Switching port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet) , 1000/2000Mbps (Gigabit Ethernet) supported
• Support MAC address auto-learning and auto-aging
• Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x PAUSE frame flow control (Full-duplex)
• High performance Store and Forward architecture, broadcast storm control, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 7.2 Gbps Switching Capacity
• On/Off power switch
Hardware Specification | |
Fast Ethernet Ports |
16 10/100Base-TX RJ-45 Auto-MDI / MDI-X ports |
Gigabit ports |
2 Gigabit Como |
Power over Ethernet ports |
16-Port with PoE injector function |
Switch Processing Scheme |
Store-and-Forward |
Switch fabric |
7.2Gbps |
Flow Control |
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
Dimensions |
440 x 290 x 45 mm (1U height) |
Weight |
5kg |
Power Requirement |
100-240V AC, 50-60 Hz |
Temperature |
Operating: 0~50 °C |
Humidity Operating |
5% to 90%, Storage: 5% to 90% (Non-condensing) |
Warranty |
1 year |
Power over Ethernet | |
PoE Standard |
IEEE 802.3af/at Power over Ethernet / PSE |
PoE Power Supply Type |
End-Span |
PoE Power Output |
Per Port 48V DC, 350mA. Max. 15.4 watts |
Power Pin Assignment |
1/2(+), 3/6(-) |
Power dissipation |
110 watts |
Standards Conformance | |
Certifications |
FCC , CE, ROHS |
Standards Compliance |
IEEE 802.3 Ethernet |
User Guide
1.Check the PoE switch
(1)Please check the enclosure,RJ45 ports,LED indicators ,sure they are ok.
(2)Connect the PoE switch with power,make sure the initialization of PoE switch is available as below:
POE indicator is off at the beginning when power connected
PWR indicator is on and keeps
Other green indicators will be on ,then off after one or two seconds
2.Connection cables:
(1) Connected the PoE switch to PD( like IP camera, wireless AP) by CAT5 or 6 cables
(2) Connected the external power adapter to PoE switch
(3) Connected the power cord to AC plug
System Design

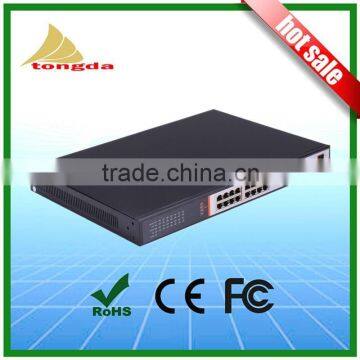

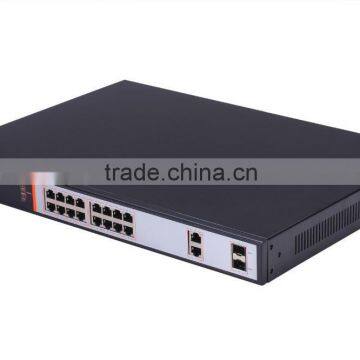

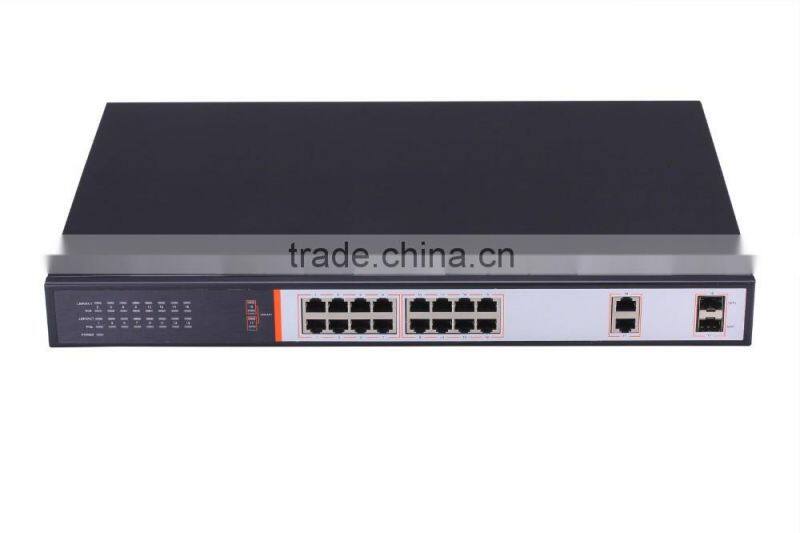

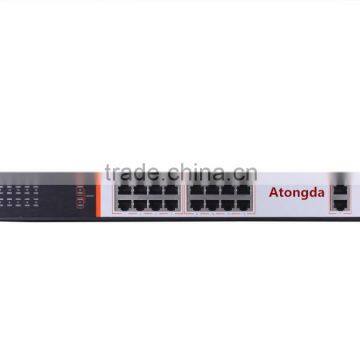

Products Display
Certificate
Shipment
Payment
