10/100Mbps 8 port PoE switch 1 uplink 15.4W per each POE port for CCTV IP Camera
The PoE Switch ATD-P1008E provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The nine Fast Ethernet ports can be used for any 10/100 Mbps link and four of 1-8 port can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to IEEE802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch ATD-P1008E automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™.

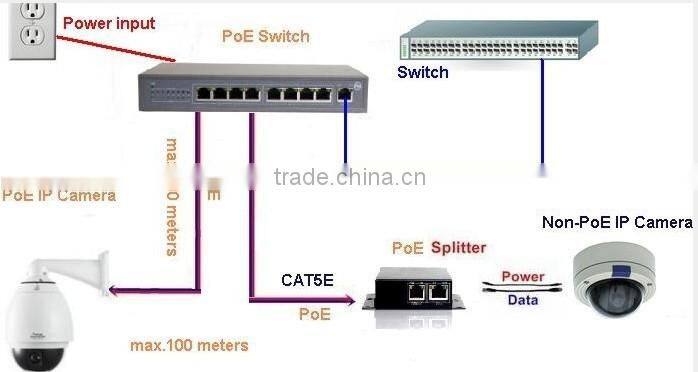

The affordably priced PoE Switch ATD-P1008E delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the PoE Switch ATD-P1008E is ideal for small business networks that need to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras.
Product features:
• 9* 10/100Mbps Auto-Negotiation RJ45 ports with 8 POE port
• Complies with IEEE802.3af/at standards
• Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)
• Bandwidth 1.8Gbps
• Supports PoE power up to 15.4W for each PoE port
•Supports automatically detect function to protect the system when the system power is overloaded or there is non-POE device
• LED indicators for monitoring power, link,activity and speed
• 48V 3.15A power adapter
Specifications:
Hardware | |
Standard and Protocols |
IEEE802.3, 802.3u, 802.3af, 802.3x |
|
CSMA/CD, TCP/IP |
|
Basic Function
|
Wire-speed Performance |
MAC Address Auto-Learning and Auto-aging | |
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode | |
Bandwidth |
1.8 Gbps |
|
Power support
|
Each POE port 15.4W,(30W optional) Total 96W (144W Optional) |
DC 48V/ 3.15A Power adapter | |
Transmission Method |
Store-and-Forward |
Ports |
9*10/100/Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
|
Network Media
|
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) |
EIA/TIA-568 100Ù STP (maximum 100m) | |
100Base-Tx: UTP category 5, 5e cable (maximum 100m) | |
EIA/TIA-568 100Ù STP (maximum 100m) | |
1000Base-T: UTP category 5, 5e cable (maximum 100m) | |
LED Indicators |
Power, Link/Act ( 10/100Mbps) |
Safety & Emission |
FCC, CE, RoHS |
|
Environment
|
Operating Temperature: -20°C~70°C |
Storage Temperature: -20°C~70°C | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing | |
Product Size: |
206x100x28mm |
Security Standard |
CE/LVD |
