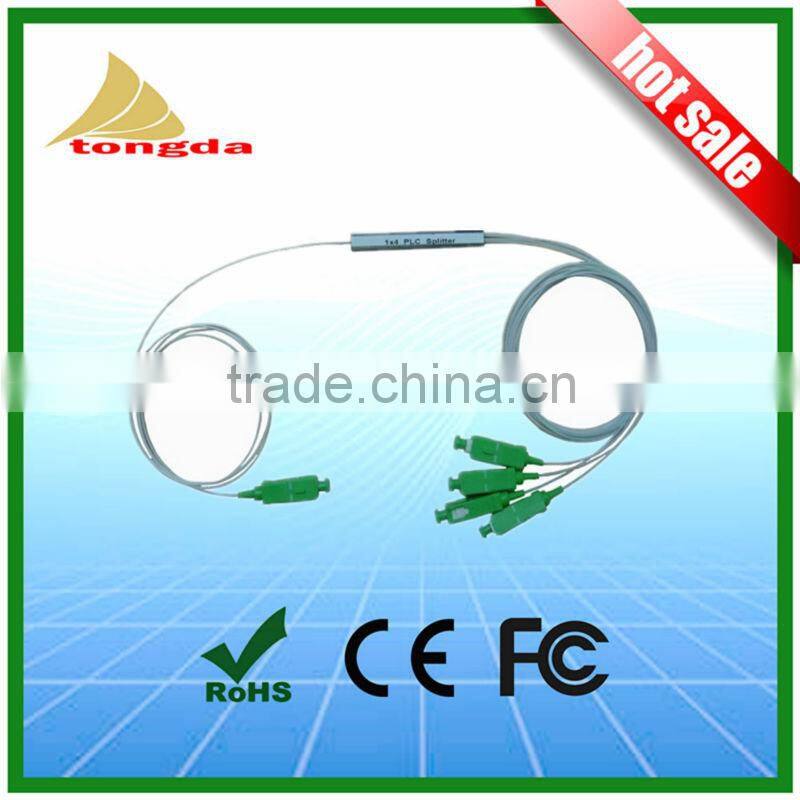

Mini type PLC Splitter 1x8 SC APC Steel Tube G657A fiber 0.9mm
PLC splitter is based on plannar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Atongda PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Applications:
-FTTH,FTTB,FTTX Systems
-LAN,WAN and Metro Networks
-Analog/Digital Passive Optical Networks
-CATV Networks
-Test Equipment
-Other applications in fiberoptic systems
Dada Sheet
| 1×4 Single Mode PLC Splitter Data Sheet | |||||||
| Operating Wavelength(nm) | 1260-1650 | Inspected Date | 2015/8/10 | ||||
| P/N: | 1x4--SC-UPC-0.9-0.5 | Operating Temperature | 150803301 | ||||
| Fiber Type | G.657A with 0.9mm loose tube | Fiber Length(m) | ≥0.5 | ||||
| Connector Type | SC/UPC | Package Dimension(mm) | 60×7×4 | ||||
| Storage Temperature | -40~+85℃ | Operating Temperature | -40~+85℃ | ||||
| Item | IL(dB) | PDL(dB) | RL(dB) | ||||
| Wavelength(nm) | 1310 | 1550 | 1310 | 1550 | 1310 | 1550 | |
| Spec. | MAX7.3 | MAX 0.2 | ≥55 | ||||
| Port1 | 7.03 | 7.07 | 0.02 | 0.03 | Pass | Pass | |
| Port2 | 7.01 | 7.05 | 0.03 | 0.03 | Pass | Pass | |
| Port3 | 7.03 | 7.05 | 0.02 | 0.02 | Pass | Pass | |
| Port4 | 7.02 | 7.06 | 0.02 | 0.03 | Pass | Pass | |
| Input | N/A | ||||||
| MAX. | 7.03 | 7.07 | 0.03 | 0.03 | N/A | ||
| MIN. | 7.01 | 7.05 | 0.02 | 0.02 | N/A | ||
| Average | 7.02 | 7.06 | 0.02 | 0.03 | N/A | ||
| Uniformity(≤0.6dB) | 0.02 | 0.02 | Directivity(dB) | ≥55 | |||
1×8 Single Mode PLC Splitter Data Sheet
| Operating Wavelength(nm) | 1260-1650 | Inspected Date | 2015/8/3 | ||||
| P/N: | 1x8-way Splitter | S/N | 150803077 | ||||
| Fiber Type | G.657A with 0.9mm loose tube | Fiber Length(m) | ≥0.6 | ||||
| Connector Type | SC APC | Package Dimension(mm) | 60×7×4 | ||||
| Storage Temperature | -40~+85℃ | Operating Temperature | -40~+85℃ | ||||
| Item | IL(dB) | PDL(dB) | RL(dB) | ||||
| Wavelength(nm) | 1310 | 1550 | 1310 | 1550 | 1310 | 1550 | |
| Spec. | MAX 10.5 | MAX 0.2 | >55 | ||||
| Port1 | 10.03 | 10.27 | 0.03 | 0.04 | Pass | Pass | |
| Port2 | 10.30 | 10.21 | 0.03 | 0.03 | Pass | Pass | |
| Port3 | 10.31 | 10.02 | 0.03 | 0.03 | Pass | Pass | |
| Port4 | 10.08 | 10.19 | 0.03 | 0.03 | Pass | Pass | |
| Port5 | 10.00 | 10.31 | 0.03 | 0.04 | Pass | Pass | |
| Port6 | 10.34 | 10.11 | 0.02 | 0.04 | Pass | Pass | |
| Port7 | 10.15 | 10.36 | 0.03 | 0.04 | Pass | Pass | |
| Port8 | 10.04 | 10.16 | 0.03 | 0.04 | Pass | Pass | |
| Input | |||||||
| MAX. | 10.34 | 10.36 | 0.03 | 0.04 | N/A | ||
| MIN. | 10.00 | 10.02 | 0.02 | 0.03 | N/A | ||
| Average | 10.16 | 10.20 | 0.03 | 0.03 | N/A | ||
| Uniformity(≤0.8dB) | 0.34 | 0.34 | Directivity(dB) | >55 | |||
System Design
Three PCS in a carton. size 60x7x4
1.What is your MOQ?
Free MOQ. You'll be highly appreciated,if you could provide us your QTY. Then we'll calculate cost correspondingly.
2.Can I get samples?
Yes. Samples will be sent for checking. We usually send samples by DHL,Fedex,UPS,TNT or Aramex. If you have carrier account,it'll be pleased to ship with your account. If not,
you can pay it by Western Union
3.How long is sample & production leadtime?
A.Sample leadtime: 1-2 days,after confirmed your payment.
B.Production leadtime:1-2 days,after confirmed sample & payment.
5.Do you accept OEM or ODM?
Yes,we're factory. And we have our own Engineering Department. You just need to send us your requirements.
