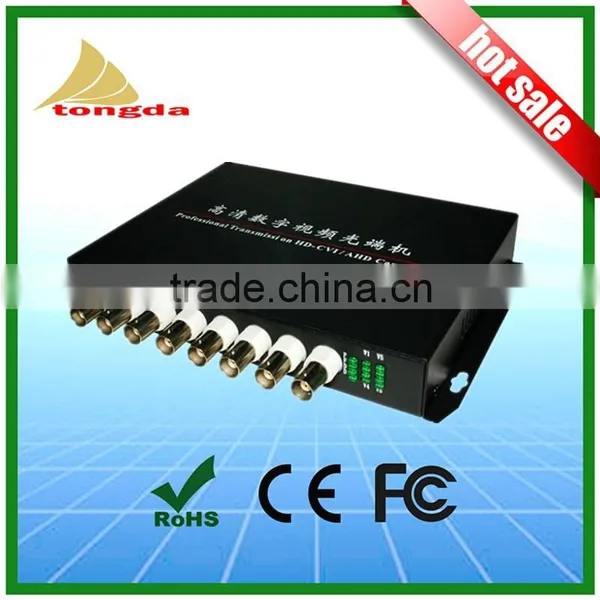

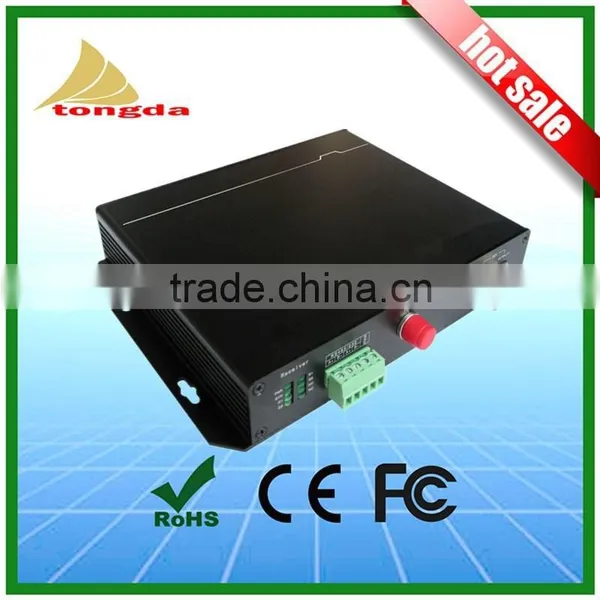

Fiber Optical Video Converter 4 channal BNC SDI CVI to fiber
Description
ATD610-8V1DT/R optical video transmitter and receiver transmit 1ch video and 1ch RS485 data signals on optical fiber.On 9/125um Single mode fiber its working distance is
20Km to 80KM while on multimode fiber it’s 1Km.
Applications
- Police and safe city monitoring system
- Express way security protection and toll station system
- City traffic monitoring system
- Building and campus monitoring system
- Industrial monitoring (airport, chemical plant, railway, etc.)
- Military monitoring (frontier defense, national defense)
- Electronic power oil field, TV station program broadcasting
- Gymnasium (live video and audio transmission)
Description
ATD610-8V1DT/R optical video transmitter and receiver transmit 4ch video and 1ch RS485 data signals on optical fiber.On 9/125um Single mode fiber its working distance is
20Km to 80KM while on multimode fiber it’s 1Km.
Applications
- Police and safe city monitoring system
- Express way security protection and toll station system
- City traffic monitoring system
- Building and campus monitoring system
- Industrial monitoring (airport, chemical plant, railway, etc.)
- Military monitoring (frontier defense, national defense)
- Electronic power oil field, TV station program broadcasting
- Gymnasium (live video and audio transmission)
Optical | |
Wavelength |
1310nm/1550nm |
Output Power |
-8~3dBm |
Optic fiber |
Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m |
Receiving sensitivity |
-30dBm |
Interface |
FC standard, ST/SC optional |
Video | |
Channel Quantity |
8ch, from camera to control center |
Compatible Systems |
NTSC/PAL/SECAM |
Impedance/Voltage |
BNC 75Ω (unbalanced) / 2.0Vp-p |
Differential Gain |
< ±1% |
Differential Phase |
< ±1 |
S/N ratio |
>60dB(weighting)(8 bit) |
Interface |
BNC |
Data | |
Channel Quantity |
1ch, from control center to camera |
Data protocol |
RS485 |
Bandwidth |
0~300kbps |
Error rate |
10-9 |
Interface |
Phoenix terminal |
Electrical. Environmental. Mechanical | |
Operating voltage |
DC 5V1A |
Operating temperature |
-35℃~+75℃ |
Storage temperature |
-45℃~+85℃ |
Humidity |
0~95%non-condensing |
