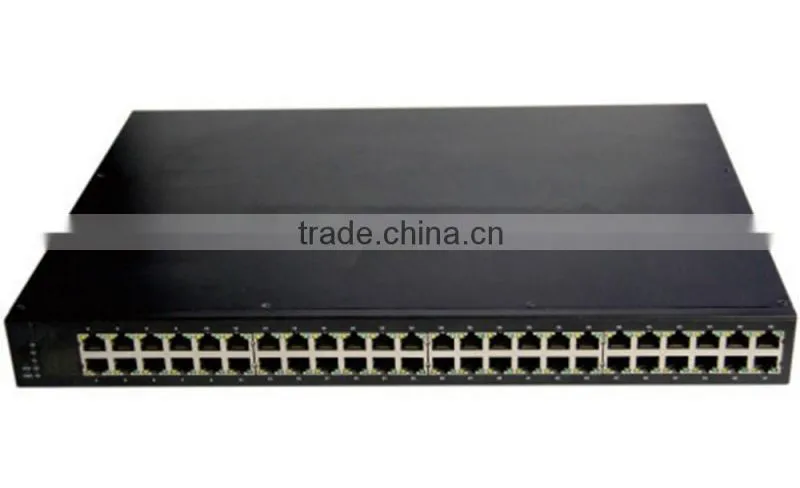

48 ports gigabit
networking switches with 4 SFP ports
Key Features:
- 10/100/1000M 48 ports +4 10G SFP ports
- Supports static routing function
- Management features, complete security policy
- Comprehensive ACL access control policies, powerful QoS capabilities
- VLAN Function
Flexible expansion capabilities
ATP-4028S supports 10/100/1000M 48ports Adaptive RJ45 ports and 4 10G SFP fiber module expansion slot, the networking port type for the user to provide a great deal of flexibility to fully protect user investment.
Comprehensive network security access policies.
Supports Port / MAC / IP / VLAN ID four yuan automatic, intelligent binding, users can quickly locate information; built a variety of DoS attack detection, DoS attacks effectively enhance the security risks for the overall defense capability; supports security for each port, effective defense MAC address attacks, comprehensive protection for network security.
Multi-level, diversified access policies to control
ACL powerful hardware capabilities,supports L2 ~ L4 data stream classification,provid based on source MAC address,destination MAC,source IP address,destination IP address,IP protocol type, TCP / UDP ports defined ACL,And supports based on port, VLAN, ACL..
VLAN Feature
Supports IEEE 802.1Q VLAN,Protocol Based VLAN,Private VLANand VLAN VPN, Can be divided according to the different needs of different virtual networks.IEEE 802.1Q VLANCompatible with Port VLAN,Protocol Based VLAN agreement to divide VLAN,Private VLAN can isolate broadcast packets ,VLAN VPN expand the VLAN resources,Implement user VLAN transparent transmission for technology.
Specifications
| Hardware Specifications | ||
| Product Model | ATP-4028S | |
| Network Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab ,IEEE 802.3z,IEEE 802.3x,IEEE 802.1X,IEEE 802.1q ,IEEE 802.1p,IEEE 802.1s,IEEE 802.1d ,IEEE 802.1w,IEEE 802.3ad,IEEE 802.1v | |
| Port | 10/100/1000M RJ 45Port | 48 |
| Gigabit SFPport | 4x10G(Independent Port) | |
| Console | 1 | |
| Indicator | Each port | Link/Ack ,Speed |
| Device | Power,System | |
| Performance | Storage | Support |
| Bandwidth | 176Gbps | |
| MAC Add | 32K | |
| Environment | Work Temp:0℃~40℃ Storage Temp:-40℃~70℃ Operating Humidity:10%~90% RH Non-condensing Storage Humidity:5%~90% RH Non-condensing | |
| Input Power | 100-240V~ 50/60Hz | |
| Size(L×W×H) | 440mm×44mmx310mm | |
| Software Specifications | ||
| Static Routing | ARP Agent | Yes |
| Entries Article | 440 | |
| Port | 16 | |
| Security | IP-MAC-Port-VID | Yes |
| IP Source protection | Yes | |
| DoS protection | Yes | |
| Port Security | Yes | |
| 802.1X Authenticate | Yes | |
| Guest VLAN | Yes | |
| Contral | L2 ~ L4 packet filtering | Yes |
| VLAN | Yes | |
| Time-based | Yes | |
| Flow direction | Yes | |
| Speed contral | Yes | |
| QoS label | Yes | |
| VLAN | Private VLAN | Yes |
| 802.1Q VLAN | Yes | |
| VLAN VPN | Yes | |
| Protocol Based VLAN | Yes | |
| Voice VLAN | Yes | |
| GARP/GVRP | Yes | |
| Address | Address | Yes |
| IVL/SVL | Yes | |
| Static state MAC Add | Yes | |
| Dynamic MAC Add | Yes | |
| MAC Add Filter | Yes | |
| Port Contral | Port trunk | Hands / LACP |
| TcpView | Yes | |
| Port speed limit | Yes | |
| Storm suppression | Yes | |
| STP (802.1d) | Yes | |
| RSTP (802.1w) | Yes | |
| MSTP (802.1s) | Yes | |
| Safety | Yes | |
| Multicast Management | IGMP V1/V2/V3 | Yes |
| Fast Leave | Yes | |
| Address | Yes | |
| VLAN | Yes | |
| Multi-Cast Port | Yes | |
| Static state | Yes | |
| Unknown | Yes | |
| Filter | Yes | |
| QoS | Port Line | 4 |
| Port Priority | Yes | |
| 802.1P Priority | Yes | |
| DSCP/ToS Priority | Yes | |
| Priority Contral | SP WRR SP+WRR |
