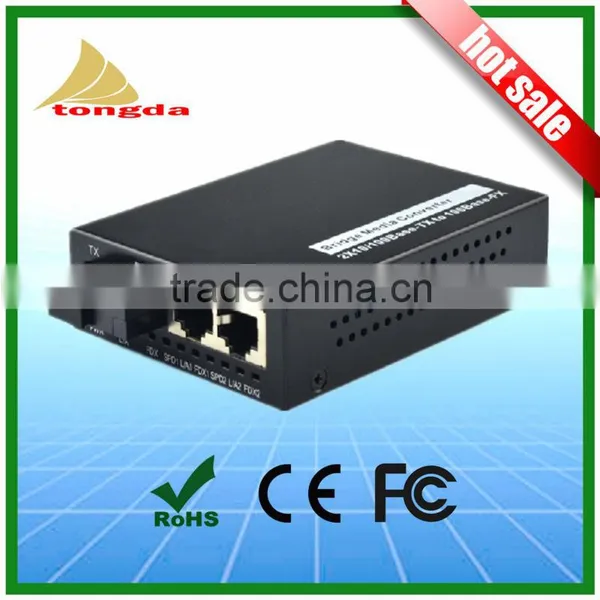

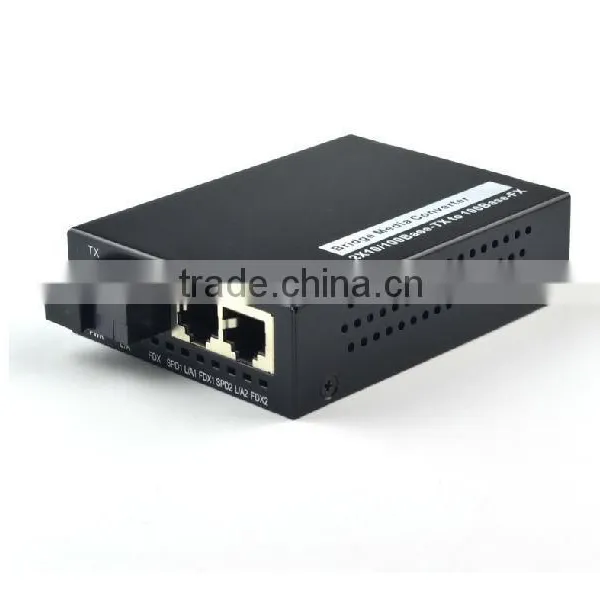

1 Fiber to 2 UTP Unmanaged 10/100Mbps Megabit Ethernet Fiber Switch
Description
1 fiber to 2 UTP switch uses 1X9 fiber modules which supports multimode or single mode dual fiber, bi-directional single fiber. The transmission distance is 2km max on MMF and 100km max on SMF. Standard in-stock fiber interface is SC. ST and FC available upon requests.
Applications
- Where 1 FX needs to be extended to several copper ports
- 1 fiber source to multi-users
- Offices and work groups
- Schools
- Power supply stations
Features
- 1 x SMF/MMF, simplex/duplex fiber port
- 2 x10/100M auto-sensing Half/Full duplex RJ45 ports
- Excellent cooling system with unique HIC solution
- Follow control and broadcast storm control
- IEEE802.3/u/x compliant
- Conspicuous LED indicators for power/link diagnose/data
- 50,000 hours MTBF
Technical Specification
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
Protocol |
CSMA/CD |
Fiber |
1 x Single fiber or Dual fiber |
Distance |
Single fiber SM: 20-100km, Dual fiber MM: 1km, Dual fiber SM:20-100km |
Optical interface |
SC (ST, FC) |
Ethernet Interface |
2 x MDI/MDIX RJ45 ports |
Power Supply |
DC5V 1A (external power) |
Operating Temperature |
0℃~+50℃ |
Storage Temperature |
-30℃~+60℃ |
Humidity |
5%~90% non-condensing |
Dimension |
158mm ×100mm ×27mm |
Weight |
0.78 kg (Gross Weight) |

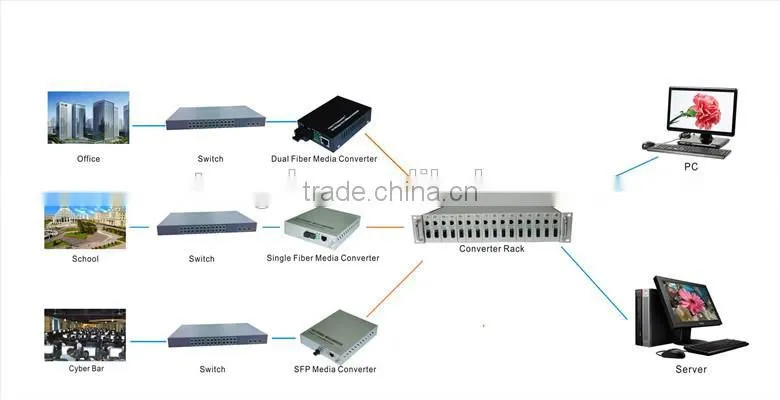

System Design

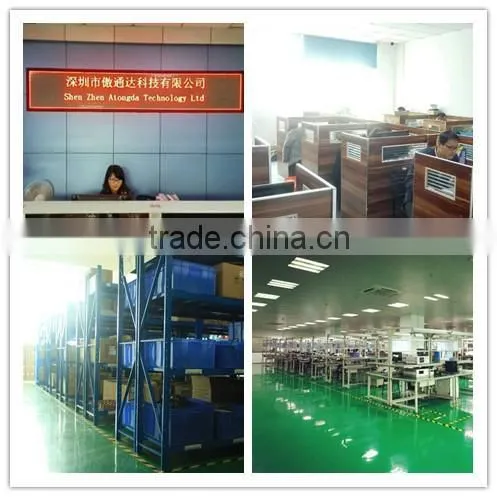

Production Show
Certificate
Shipment
Payment
