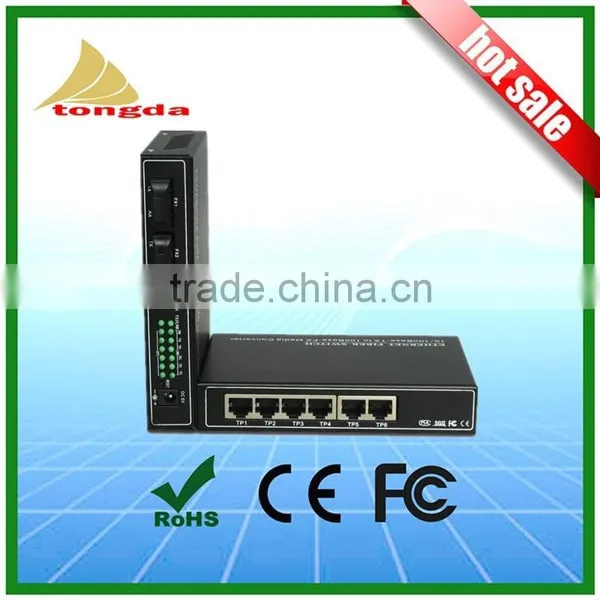

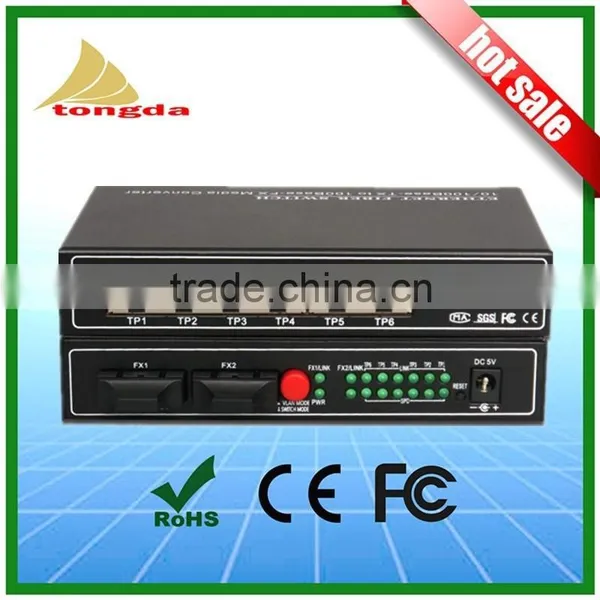

China manufacturer fast ethernet 2 fiber 6 rj45 fiber optical ethernet switch
Overview
It provides 6 10/100Mbps UTP/STP RJ45 ports with auto-MDI/MDIX and 1 fiber port.
It also provides powerful functions such as supporting Web management, intelligent matching among working mode, port, VLAN ,priority, data rate and security of the interface.
IEEE802.3z/AB 1000Mbps 6 port Gigabit Ethernet Switches supports two types media for network connection and switching such as 10/100/1000Base-T and 1000Base-SX/LX.
The switch is designed with controller and buff memory that connects two types segments to operate smoothly.The Switch with 6 RJ45 port 10/100/1000Base-T and 1SFP port 1000Base-T/SX/LX.All support only 1000Mbps and Full-Duplex modes.
With external power unit, it provides good stability and reliability.
Specifications
The Four Port Gigabit Ethernet Switch conforms to the follwoing standards:
Standards : IEEE802.3z/AB 10/100/1000Base-T 1000Base-SX/LX/ZX
UTP Cable Cat. 5e or Cat.6 cable up to 100m.
Fiber Cable : 1000SX:50/125,62.5/125 µ m mplti-mode
1000LXZX :8.7/125.9/125µm single-mode.
Data Transfer Rate: RJ45 port 10M,100M,1000mBPS,SFP 1000Mbps.
LED Indicators (5×2) : TPx100,TPx1000, TPx Link /Act,SFP1, SFP2, PWR, (x 1-5)
Duplex Modes: RJ45 port N way Full/Half , Duplex auto-negotiation ,SFP full-duplex mode
Power Requirement: 220V(100-260V)AC,50Hz,DC5V/2A
Ambient Temperature:0~50°C
Humidity: 5%~90%
Dimensions: 30high×140 width×100 length (mm)
Standard: |
IEEE802.3,IEEE802.3u ,IEEE802.3x |
Protocol: |
CSMA/CD |
Port: |
6 MDI/MDIX RJ45 ports and 2 fiber port |
Input Voltage: |
AC100V-AC240V/50-60Hz |
Operational Temperature: |
0°C~ 50 °C |
Storage Temperature: |
-30°C~ 60 °C |
Humidity: |
5%~90% non-condensing |
Dimensions |
232mm*142mm*45mm |
