Product Details
Place of Origin: | Guangdong, China | Brand Name: | Atongda | Model Number: | ATD-G240-SM20 |
Product Description

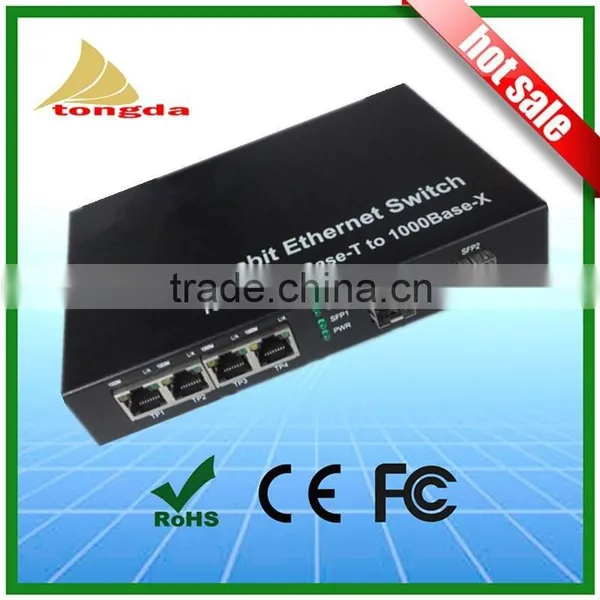

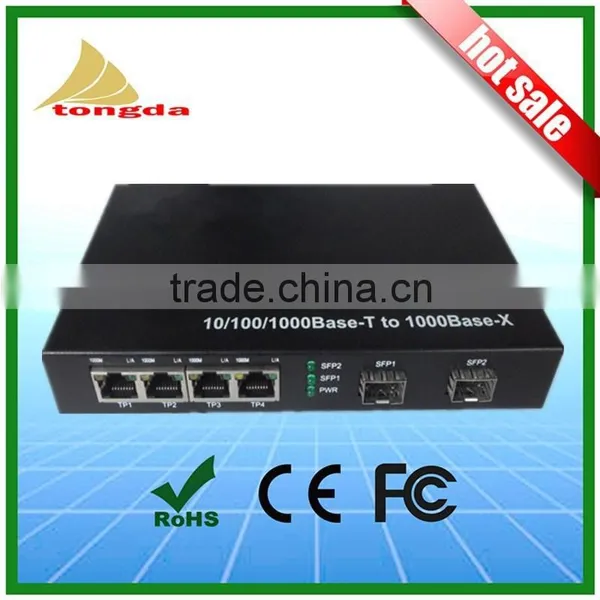

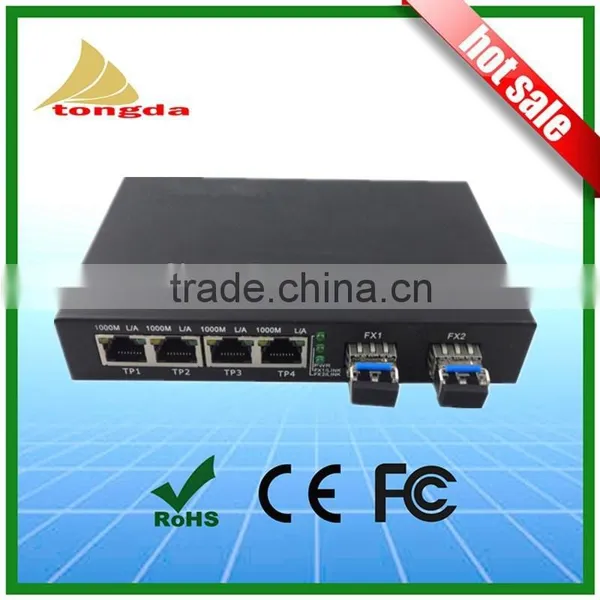

4X10/100/1000M Base-TX - 2X1000Base-FX ethernet sfp Fiber optic Switch converter
Description
ATD-GS240-SS20
fiber to 4 UTP switch uses 1X9 sfp fiber modules which supports multimode or single mode dual fiber,
bi-directional single fiber. The transmission distance is 2km max on MMF and 100km max on SMF.
Standard in-stock fiber interface is SC. ST and FC available upon requests.
Applications
- Where 1 FX needs to be extended to several copper ports
- 2 fiber source to multi-users
- Offices and work groups
- Schools
- Power supply stations
Features
- 2 x SMF/MMF, simplex/duplex fiber port
- 4 x10/100/1000M auto-sensing Half/Full duplex RJ45 ports
- Excellent cooling system with unique HIC solution
- Follow control and broadcast storm control
- IEEE802.3/u/x compliant
- Conspicuous LED indicators for power/link diagnose/data
- 50,000 hours MTBF
Technical Specification
Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
Protocol | CSMA/CD |
Fiber | 2 x Single fiber or Dual fiber |
Distance | Single fiber SM: 20-100km, Dual fiber MM: 1km, Dual fiber SM:20-100km |
Optical interface | SC (ST, FC) |
Ethernet Interface | 4 x MDI/MDIX RJ45 ports |
Power Supply | DC5V 2A (external power) |
Operating Temperature | -30℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Humidity | 5%~90% non-condensing |
|
