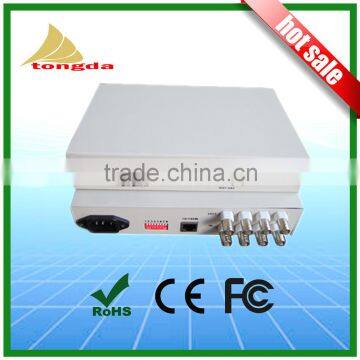

4E1 PDH Converter Fiber Optic Multiplexer
US$ 1 - 150
MOQ: 5 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Atongda
Model Number:
ATD-3120-E1-PDH, ATD-3120-E1-PDH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Atongda Optical Extender RS232 Data Fiber Optic Converter Fiber Optic ModemUS$ 1 - 56MOQ: 5 Pairs -
Atongda RS485 to Fiber Optic Media ConverterUS$ 1 - 38MOQ: 100 Pairs
-
RS485 Rs 422 Fiber Modem Fiber Optic ConverterUS$ 25 - 35MOQ: 10 Pairs
-
Optical Extender RS422 Data Mode Fiber Optical Converter 20 40 60 80 120KM FCUS$ 28 - 45MOQ: 20 Pairs
-
Meda in China Atongd RS485 Data Fiber Optical Converter 20KM FCUS$ 28 - 46MOQ: 100 Pairs
Place of Origin
Guangdong, China
Brand Name
Atongda
Model Number
ATD-3120-E1-PDH, ATD-3120-E1-PDH
4E1 PDH converter fiber optic multiplexer
Specifications
4E1 ethernet PDH multiplexer
one optional port 10/100M
4E1 channels
Features
- Provide up to 4E1 channels and 1 optional port 10/100Mbps Ethernet channel ,Fiber port bit rate,150Mps,up to 120km distance without repeater.
- E1 Line code, HDB3, compliant to G.703, G.823 and G.742.
- E1 channel support both 75ohm & 120ohm impedance
- Ethernet port support 10/100Mbps auto-detection, Full/Half Duplex auto-negotiation
- Ethernet port can transmit VLAN tag
- Complete alarm functions
- Provide an RS232 asynchronous interface
- Support the local/remote E1 loop back
- Remote loop back provided by software and hardware
- Provide RS232 port for management, GUI interface
- Stand alone,220VAC or -48VDC power supply optional
Description
4E1 PDH Multiplexer can multiplex 4E1 and 1 optional port Ethernet (10/100Mbps line speed) signals in one fiber channel to transmit. It is suitable for low capacity, point-to-point application of remote transmission. The circuit part of the equipment is fully digitized. The whole equipment is reliable, stable, easy to install and maintain. It has good temperature and voltage characteristics, complete alarm functions, one RS232 asynchronous interface and remote loop back functions(from software). At the same time, it can be managed from management software
Specification
Specification
Optical Port
Port number, 1
Bit rate, 150Mb/s /-50ppm
Wavelength, 1310nm, 1550nm
Distance,0 - 120Km
Connector, FC/PC
Port number, 1
Bit rate, 150Mb/s /-50ppm
Wavelength, 1310nm, 1550nm
Distance,0 - 120Km
Connector, FC/PC
E1 Port
Port number, 4
Bit rate, 2.048Mbps( /-100ppm)
Impedance, 75ohm or 120ohm
Line Code, HDB3, compliance with ITU-T G.703
Port number, 4
Bit rate, 2.048Mbps( /-100ppm)
Impedance, 75ohm or 120ohm
Line Code, HDB3, compliance with ITU-T G.703
Ethernet Port
Port number, 1 optional
Speed, 10/100Mbps line speed
Duplex , Half/Full auto-negotiate
Frame Size, 64 - 1536 bytes
MAC address, 1k
MAC aging time, 5mins
Port number, 1 optional
Speed, 10/100Mbps line speed
Duplex , Half/Full auto-negotiate
Frame Size, 64 - 1536 bytes
MAC address, 1k
MAC aging time, 5mins
Power Supply
Input voltage,When -48V, -40V ~ -60V (DC) is allowed
When ~220V, -175V ~ ~264V (AC) is allowed.
Overall power ,5W
Input voltage,When -48V, -40V ~ -60V (DC) is allowed
When ~220V, -175V ~ ~264V (AC) is allowed.
Overall power ,5W
Operating Environment
Temperatur,0°C--45°C
Humidity,95%,no condense
Temperatur,0°C--45°C
Humidity,95%,no condense
Standalone Size
483mm(L)×44.45mm(W)×200mm(H)
Weight,2kg
E1 PDH converter fiber optic multiplexer
