   FTTH Drop cable indoor  optical 1 core G657A  no messenger FRP parallel  LSZH jacket 2.0x3.0mm



                                  FTTH Drop cable indoor optical 1 core G657A no messenger FRP parallel LSZH jacket 2.0x3.0mm

· Description

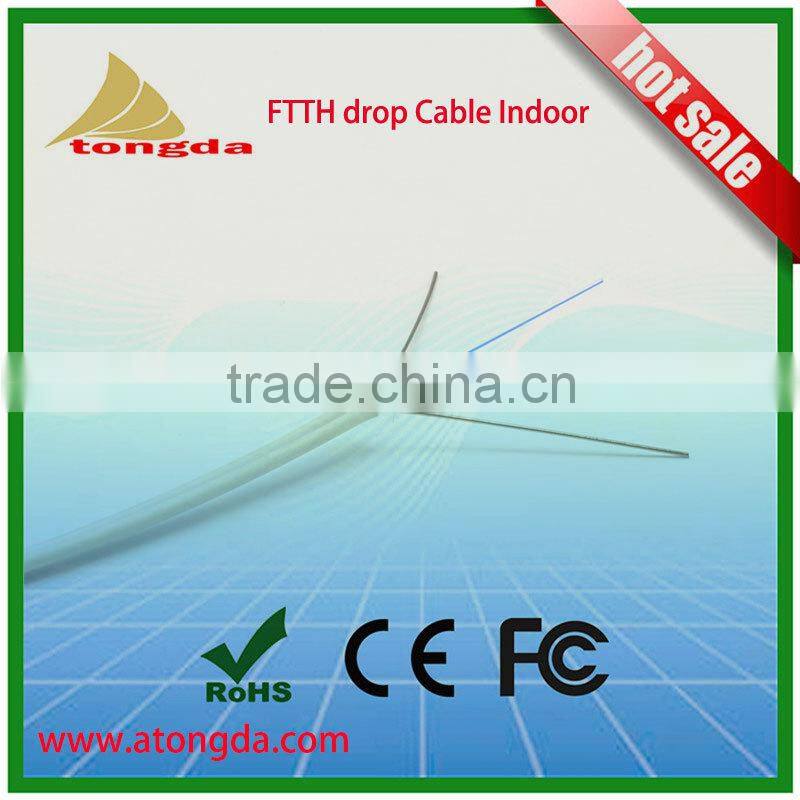

   The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.



·Characteristics

 1· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication

          transmission property;



  2 · Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;



  3 · Simple structure, light weight and high practicability;



  4· Novel flute design, easily strip and splice, simplify the installation and maintenance



  5 · Low smoke, zero halogen and flame retardant sheath.





Optical Characteristics





G.652D

G.657A

50/125μm

62.5/125μm

Attenuation

(+20℃)

@850nm





≤3.0 dB/km

≤3.5 dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤     0.45 dB/km

≤     0.40 dB/km





@1550nm

≤     0.30 dB/km

≤0.30dB/km







Bandwidth (Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

≤1480nm








· Technical Parameters


Fiber Count

Cable Diameter
mm

Cable Weight
kg/km


Tensile Strength

Long/Short Term
N

Crush Resistance

Long/Short Term
N/100mm


Bending Radius

Static
/Dynamic
mm

1

(2.0±0.2)×(3.0±0.2)

8

30/60

300/1000

15/30

2

(2.0±0.2)×(3.0±0.2)

8

30/60

300/1000

15/30

4

(2.0±0.2)×(3.5±0.2)

9

30/60

300/1000

15/30

6

(2.0±0.2)×(4.0±0.2)

10

30/60

300/1000

15/30



Storage/Operating Temperature : -20℃ to + 60℃

 FTTH Drop cable indoor optical 1 core G657A no messenger FRP parallel LSZH jacket 2.0x3.0mm

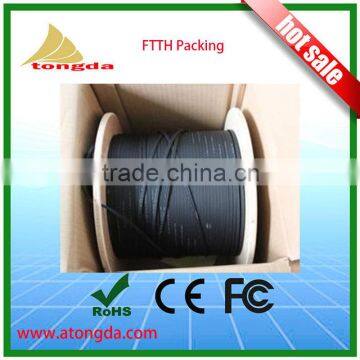

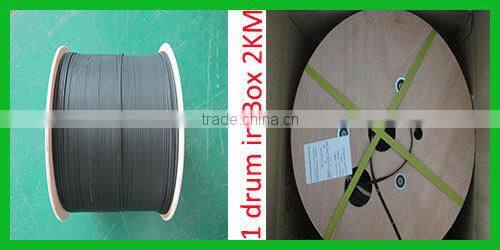

Packing

FTTH Drop cable indoor optical 1 core G657A no messenger FRP parallel LSZH jacket 2.0x3.0mm



FTTH Drop cable indoor optical 1 core G657A no messenger FRP parallel LSZH jacket 2.0x3.0mm

FTTH Drop cable indoor optical 1 core G657A no messenger FRP parallel LSZH jacket 2.0x3.0mm

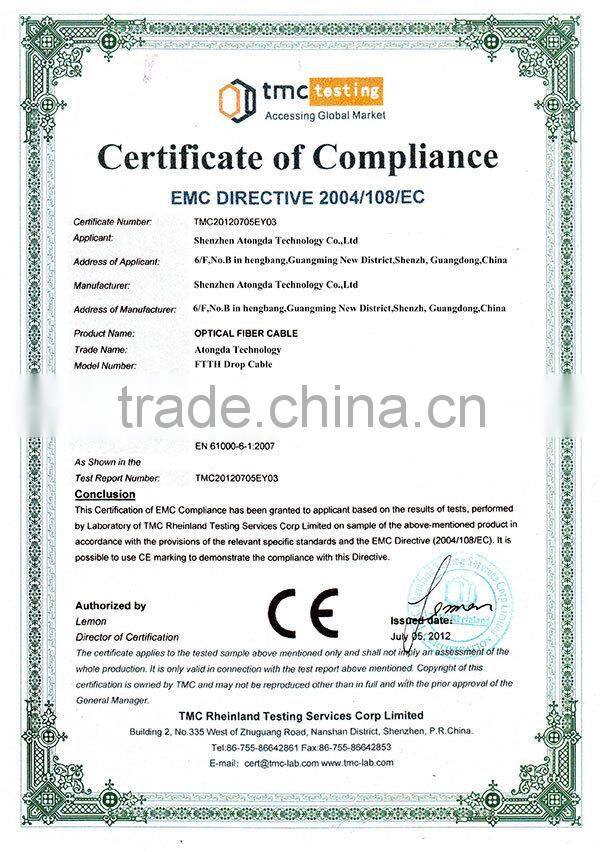

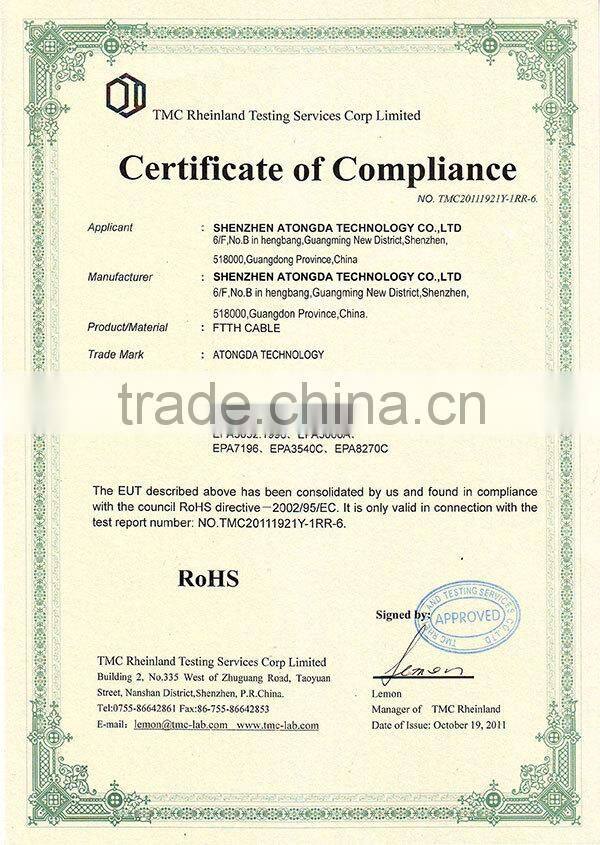

 Certificate

FTTH Drop cable indoor optical 1 core G657A no messenger FRP parallel LSZH jacket 2.0x3.0mmFTTH Drop cable indoor optical 1 core G657A no messenger FRP parallel LSZH jacket 2.0x3.0mm



Delivery time: 10-15Days after receive deposit



Payment:



FTTH Drop cable indoor optical 1 core G657A no messenger FRP parallel LSZH jacket 2.0x3.0mm

Ship

 FTTH Drop cable indoor optical 1 core G657A no messenger FRP parallel LSZH jacket 2.0x3.0mm
