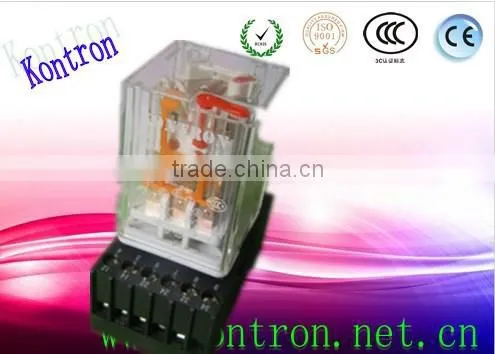

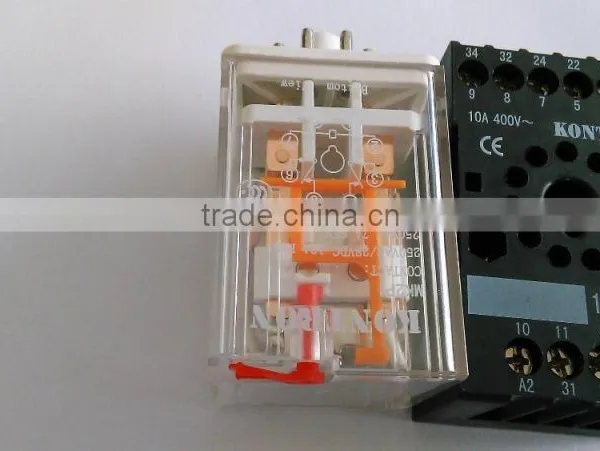

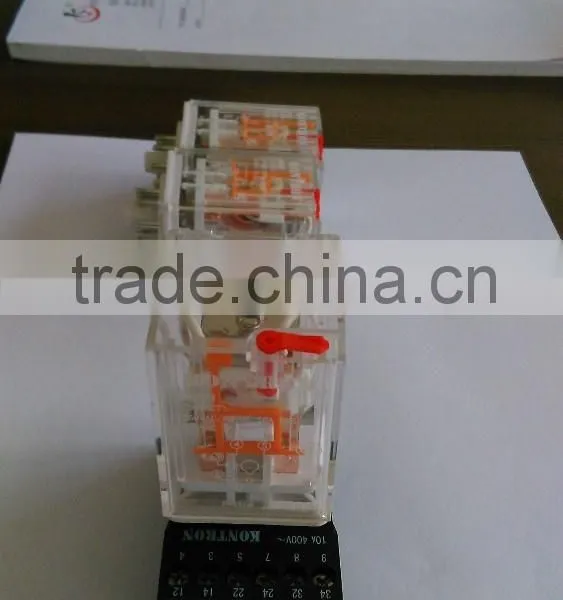

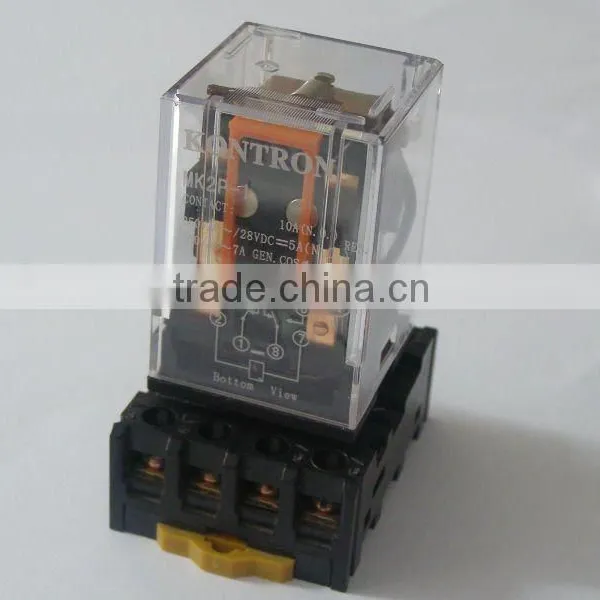

kontron REMK2P series general purpose relay
USD $1.3 - $1.6
/ Piece
100 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- ShangHai
- T/T L/C Credit Card
You May Like
-
DSPC172H Programmable logic controller Fast data processing is possible
-
VMIVME-2540-000 Intelligent counter/controller
-
SPS5785 Analog input and output
-
31C450-503-4-00 Microprocessor inverter
-
F8650X 984865065 Processor module Supports up to 2 axes
-
D136-001-008a Servo valve controller Precise position control of actuators or valves
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | kontron | Model Number: | REMK2P |
| Theory: | Electromagnetic Relay | Usage: | General Purpose | Size: | Other, 34.7x34x59mm |
| Protect Feature: | Other, dust-cover | Contact Load: | High Power |
Product Description
relay
| size | 34.7x34x59MM |
| contact form | 3/2C |
| contact material | Agcdo |
| contact rating | 10A250VAC/DC28V |
| contact resistance | ≤50mΩ |
| coil voltage | DC:5,6,9,12,24,48,60,110,220 AC:5,6,9,12,24,48,60,110,220,240,380V |
| coil power | 1.5W;2.8VA |
| strenth between coil&contact | 2500VAC |
| strength between contact&contact | 1500VAC |
| insulation resistance | ≥100MΩ |
| mechanical life | 1000000 ops |
| electrical life | 100000 ops |
| working temprature | -40-85c |
| weight | 82 grams |
| equal model | omron MK2P/MK3P |
