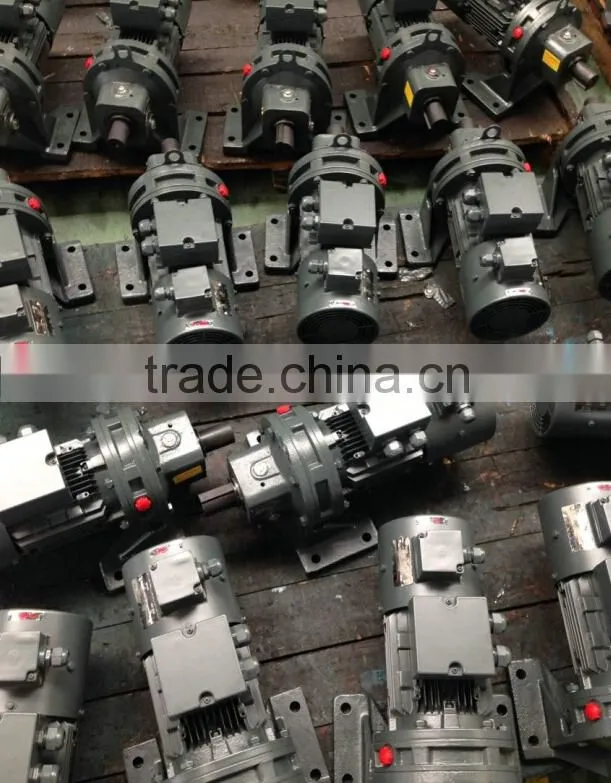

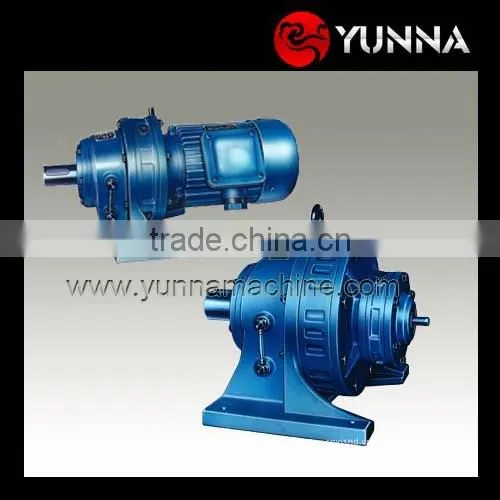

Help CenterBW and XW Series Cyclodial Gear Speed Reducer
Related Products
-
China Made Cast Iron High Speed BWE Series BWEY Cyclodial Gear Speed ReducerNegotiableMOQ: 1 Set -
ZFY Hardened Reducer Speed Horizontal GH Gear ReducerNegotiableMOQ: 1 Set
-
ZSY/ZLY/ZDY/ZFY Reducer Helical Spur Gear Speed ReducerNegotiableMOQ: 1 Set
-
R Series Gear Reducer, Same Model the SEW Gear Reducer Gear TransmissionNegotiableMOQ: 1 Set
-
Enclosed Slew Driv Solar Tracking DriveNegotiableMOQ: 1 Set
Cycloidal reducer model
1.Single stage models: X2, X3, X4, X5, X6, X7, by 8, X9, X10, X11, X12
B09, B10, B11, B12, bl3, B14, B15, B16, B17, B18, B19
2.Single reduction ratio: 9, 11, 17, 23, 25, 29, 35, 43, 59, 71, 71
3.Two-stage models: X42 X43 X53 X63 X74 X85 X95 X106 X118 X128
B109 B110 B120 B121 B131 B141 B153 B163 B174 B185 B195
4.Two-stage reduction ratio: 121 187 289 391 187 595 731 841 1003 1225 1505 1849 2065 2537 1505 4189 5133 7569
Product features
1. The transmission ratio.The reduction gear transmission ratio of 1/6-1/87.Double reduction ratio is 1/99-1/7569.
2. High transmission efficiency.Because the mesh parts adopt the scroll meshing, the general level of the transmission efficiency is 90% - 95%.
3. Compact structure, small volume, light weight.Compared with ordinary cylindrical gear reducer can reduce volume 2/1-2/3.
4. Less faults, long service life.Main transmission mesh use bearing steel grinding manufacturing, so the mechanical properties and wear resistance are good, and for its rolling friction, and thus less faults, long service life.
5. Stable running and reliable.Due to the multiple teeth meshing transmission process, so make it smooth and reliable operation, low noise.
6. Tear open outfit is convenient, easy to maintenance.
7. Overload capacity is strong, impact resistance, small inertia moment, suitable for frequent starting and the characteristics of positive &negative operation.

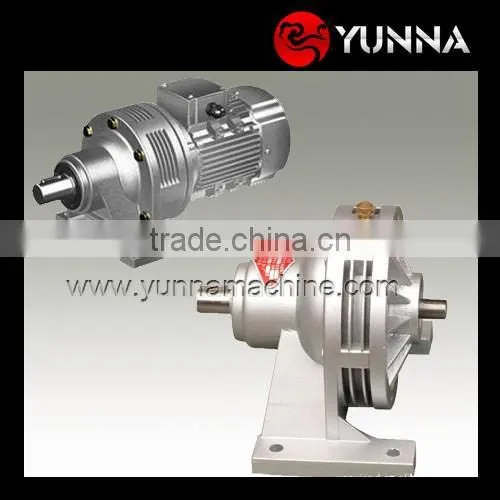

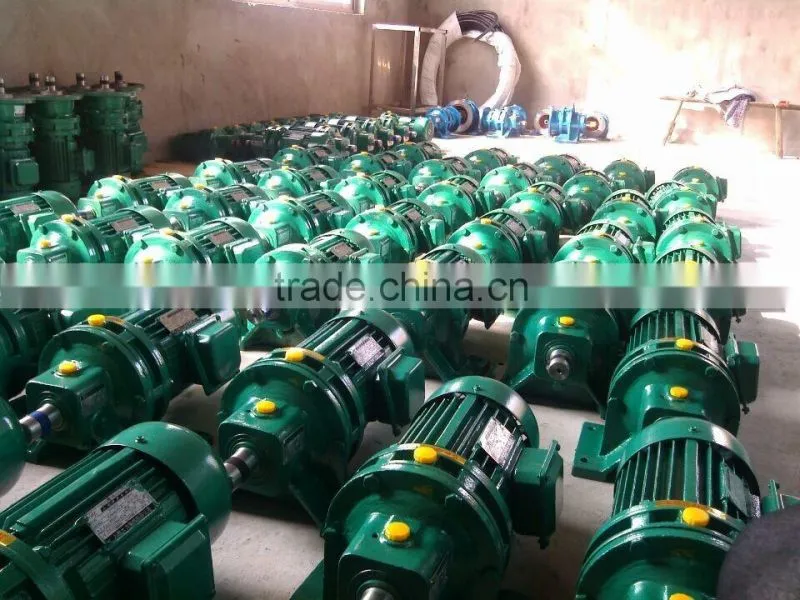

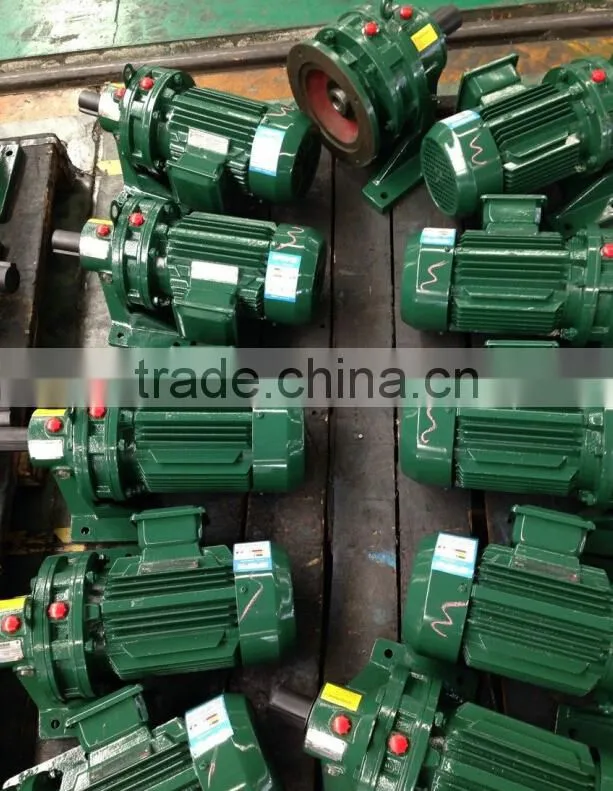

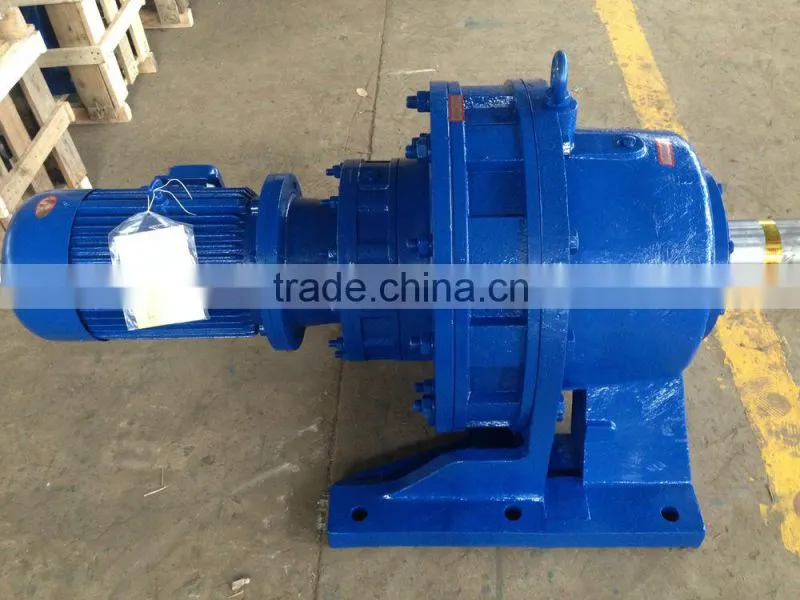

Samples

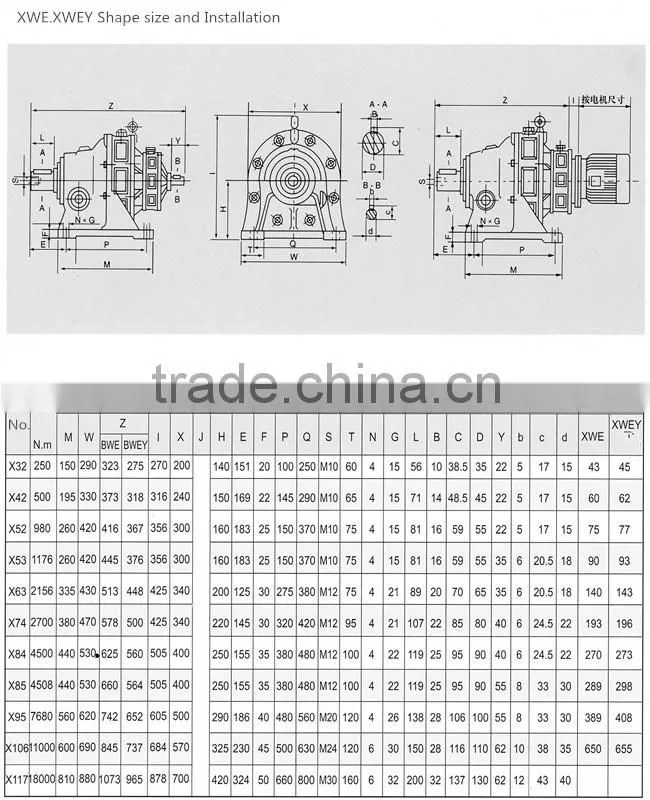

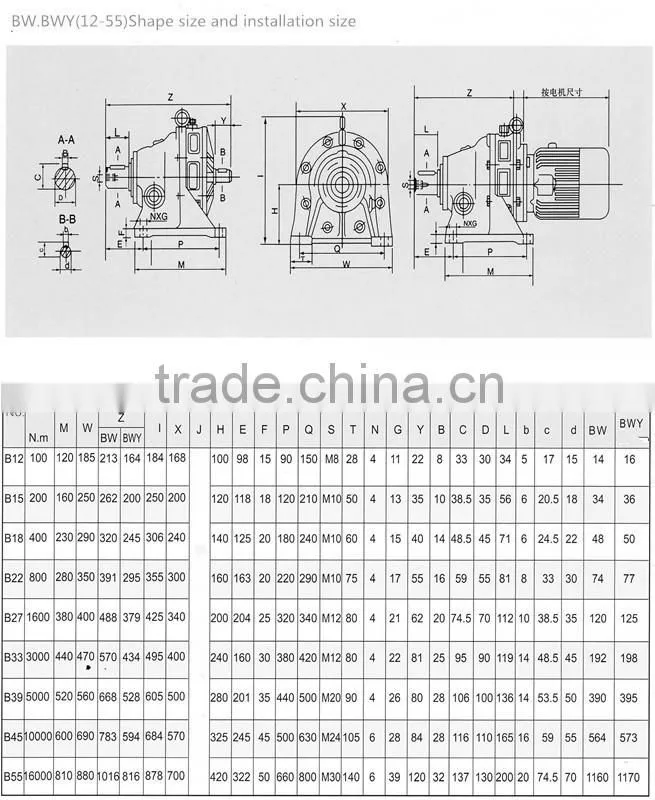

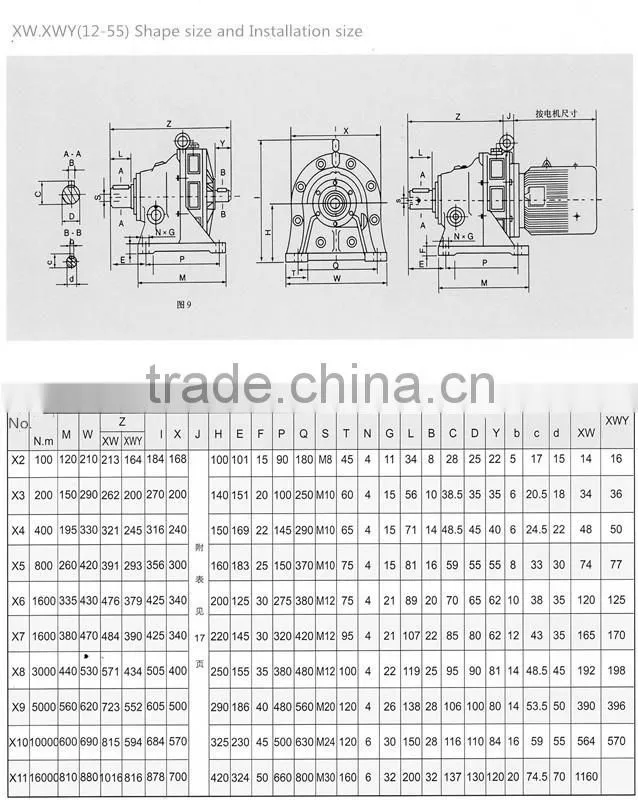

Specifications
Applications
