Help CenterZexel Pump Tester Test the RED4 Electronic Governor Inline Pump
Related Products
-
EDC ---Zexel RED4 Eletronic Control In-line Pump TesterNegotiableMOQ: 1 Set -
REDIV Electric Inline Pump Tester,edc Pump TesterNegotiableMOQ: 1 Set
-
HY-PT pt Cummins Injector Test Bench(3phase,380V)NegotiableMOQ: 1 Set
-
HY-PT Injector Pump Test Stand, High QualityNegotiableMOQ: 1 Set
-
HY-PT Cummins Pump Test Bench,Cummins Test MachineNegotiableMOQ: 1 Set
Specifications
1.most reasonable price to buy the most satisfactory productspetitive price
3.good service attitude
Electronic-controlled Line Pump Measurement Instrument
Digital paraments:
1. Technical Data
1. Eletronic Power: 220V 50HZ
2. Output Power: <200 W
3. Data display: Light Four digital Nixietube
4. Control Range: 5%-95%
5. Precision : ±0.1%
6. 4 Pre-set : 5%, 16.25%, 72.5%, 95%
Button Instructions:
1. “ Select” Button: When the corresponding indicator light turns off, press “↑” “↓”button to adjust PWM value “5%-95%”; while the corresponding indicator light turn on, press “↑” “↓”button to choose 4 kinds of pre-set : 5%, 16.25%, 72.5%, 95%
2. “ RED4 POWER”: The Oil ajusting speed device switch, when it light effective.
3. “ Limp home” Fixed speed switch, while the lamp light, PWM value is “95%”
4. “ Pull Down” switch, When the lamp light, PWM value is “5%”
5. “ Menu” “ Enter” Menu Operating: it can change the controller and run the program. Before left factory, all the data have pre-set well, don’t change it by any way, and leads to abnormal usage.
3. Usage Instructions:

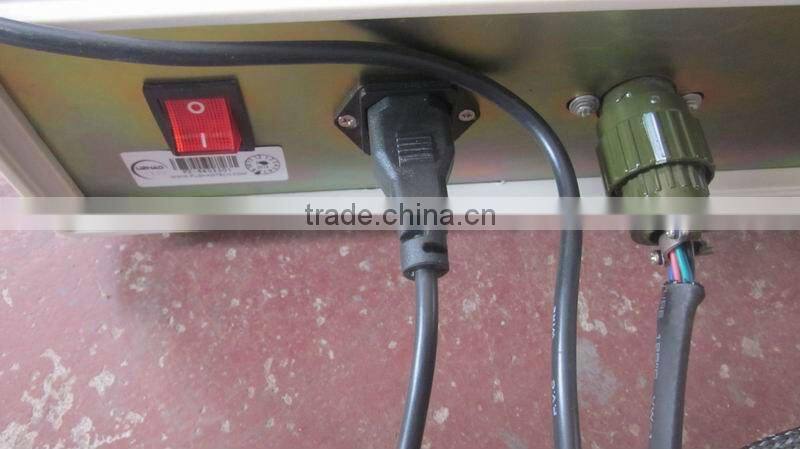

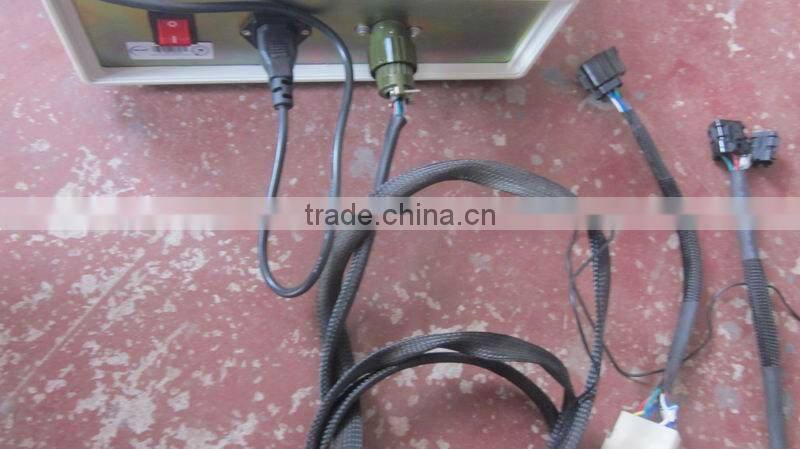

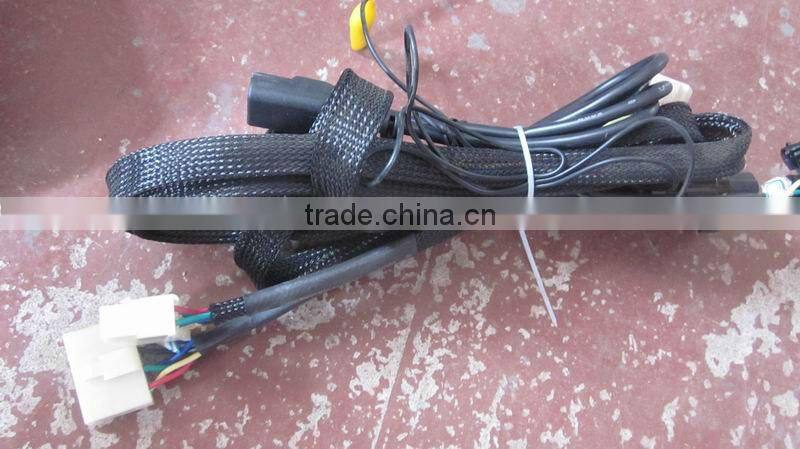

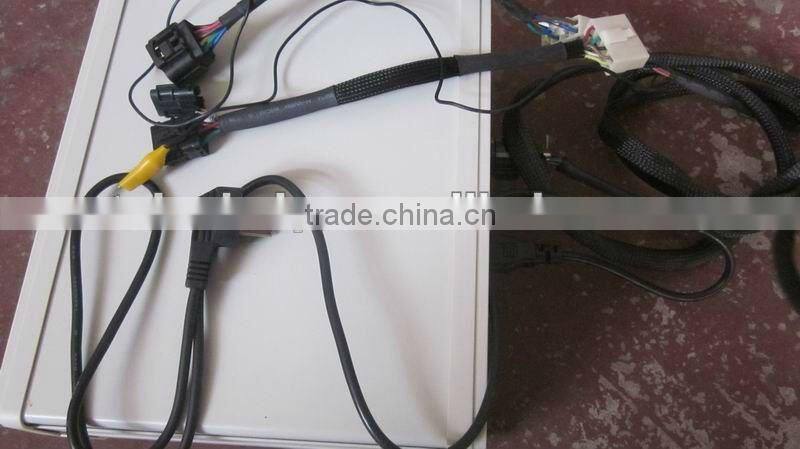

Connect the oil pump adjusting speed device through the cables along with
test EDC itself, Open the power switch, then open “ RED4 Power”, the
corresponding indicator lamp will be light, display will show “ 00.00”, it can
adjust the throttle up and down through the arrow “↑” “↓”. Close the “ RED4
POWER’ switch, oil pump power off.
