Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > 5050 SMD Rigid LED Strip Light Under Cabinet

5050 SMD Rigid LED Strip Light Under Cabinet

Name: 5050 SMD Rigid LED Strip Light Under Cabinet
Brand: QUALITYLED
SKU: 114734985
Availability: InStock

5050 SMD Rigid LED Strip Light Under Cabinet thumbnail-1

5050 SMD Rigid LED Strip Light Under Cabinet photo-1

US$ 3 - 5 MOQ: 100 Pieces

Key Specifications

Get Latest Price

LED Light Source:

5050 SMD LED

Type:

LED Bar Lights

Input Voltage(V):

Contact Supplier Request Quote Chat Now

Quality Led Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source 5050 SMD LED

Type LED Bar Lights

Input Voltage(V) 12

Lamp Power 7.5

Lamp Luminous Flux(lm) 350

Color Temperature(CCT) Warm White/Cool White/Red/Green/Blue/Yellow/RGB

Working Temperature(℃) -40, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

Certification CE

Place of Origin Guangdong, China

Brand Name QUALITYLED

Model Number QS-AL

Specifications

Rigid LED strip light
Aluminum
Waterproof IP65
5050 SMD LEDs
UL&CE&RoHS approvals

Low power consumption
Low working temperature
High brightness
IP65, suitable for indoor and outdoor usage

Photometric Characteristics
Three-in-one 5060 SMD LED
Colors available: cool white(6000-6500K), warm white(2800-3300K), red, blue, green, RGB

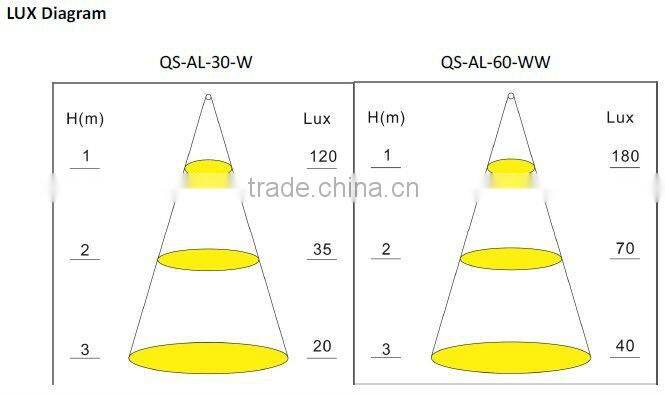

Beam angle: 120°

Electrical Characteristics
Input 12VDC
Compatible with DMX and PWM control system
At most 5 meters can be connected in series.

Mechanical Characteristics
Material: aluminum back and waterproof glue on the surface of pcb
Surface finish: anodized and honed
Working temperature: 40 degrees Celsius at room temperature 25 degree Celsius
Ambient temperature: -40~50 degrees Celsius

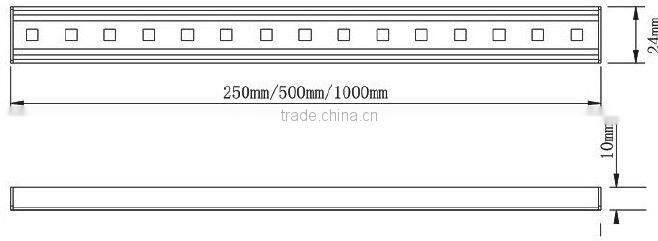

Dimension: 250/500/1000x24x10mm (other length can be nominated by customer)
Waterproof IP65, suitable for indoor and outdoor usage

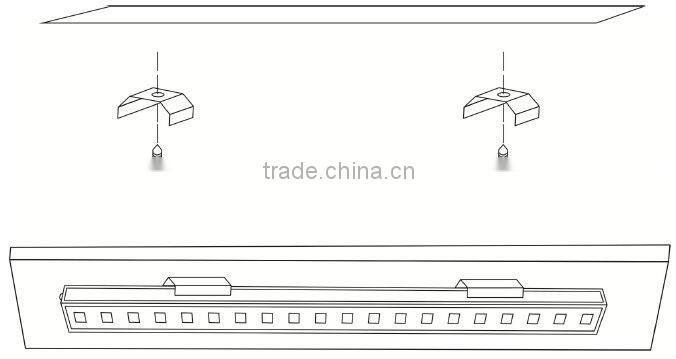

Method of Installation
1. Fix the two clips with screws
2. Put the strip into the clips

Applications:

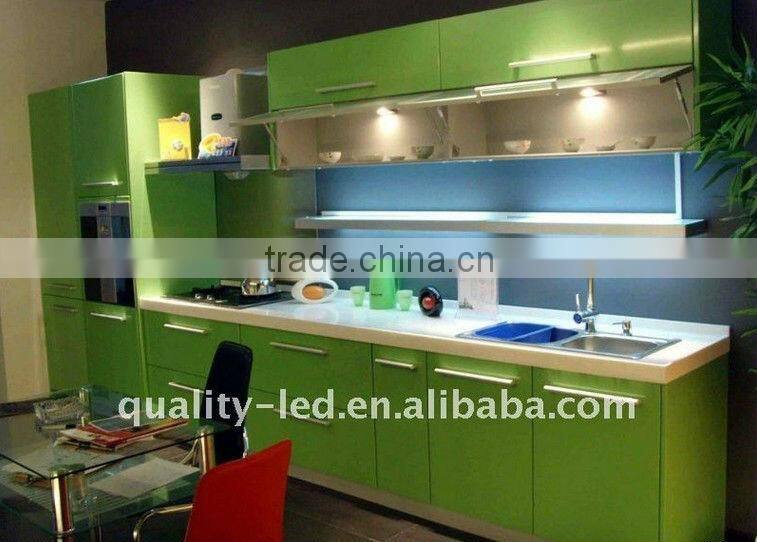

1. Cabinet lighting

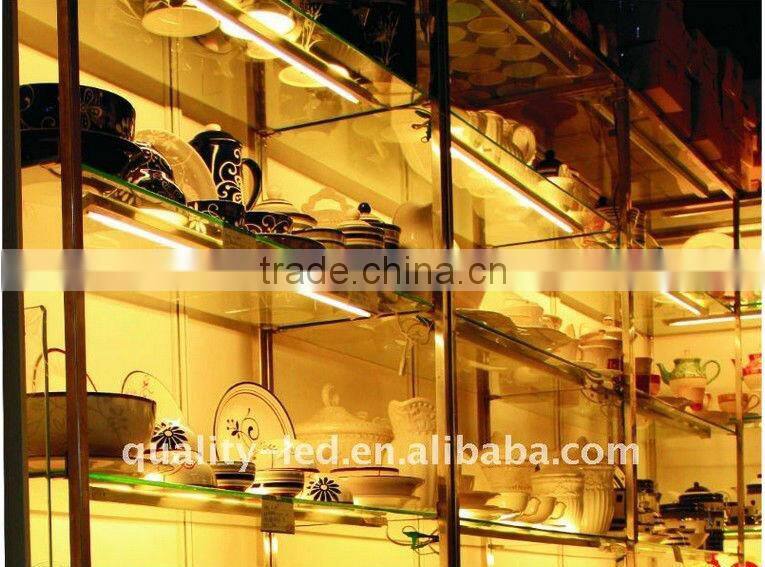

2. Shelf lighting
3. Display lighting
4. Decorative lighting
5. Cove lighting
6. Walkway
7. Household, hotel, restaurant, entertainment places, etc.
