5050 SMD Led Rigid Strips

5050 SMD Led Rigid Strips photo-1
US$ 4 - 7 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
QS
Model Number:
QS-AL-60
Payment & Shipping
Payment Methods:
Port of Shipment:
shezhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name QS
Model Number QS-AL-60
Length 100cm
Rated Power 14.4W
Holiday Name Christmas
Voltage Other, 12V or 24V

Specifications

1) 5050 SMD led rigid strips;
2)low price high quality;
3)CE, RoHS approved;
4)Three years warranty;
5)Different length.

5050 SMD led rigid strips

5050 SMD led rigid strips

 Low power consumption
Low working temperature
High brightness
IP65, suitable for indoor and outdoor usage

Applications:
1. Cabinet lighting
2. Shelf lighting
3. Display lighting
4. Decorative lighting
5. Cove lighting
6. Walkway
7. Household, hotel, restaurant, entertainment places, etc.

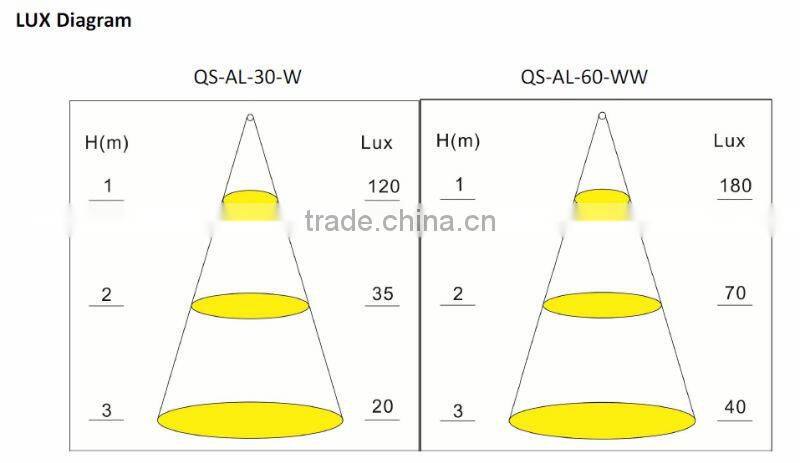

Photometric Characteristics
Three-in-one 5060 SMD LED
Colors available: cool white(6000-6500K), warm white(2800-3300K), red, blue, green, RGB
Beam angle: 120°
Lumen output

 5050 SMD led rigid strips



5050 SMD led rigid strips







Electrical Characteristics
Input 12VDC
Compatible with DMX and PWM control system
At most 5 meters can be connected in series.
Power consumption:



5050 SMD led rigid strips



Mechanical Characteristics
Material: aluminum back and waterproof glue on the surface of pcb
Surface finish: anodized and honed
Working temperature: 40 degrees Celsius at room temperature 25 degree Celsius
Ambient temperature: -40-50 degrees Celsius

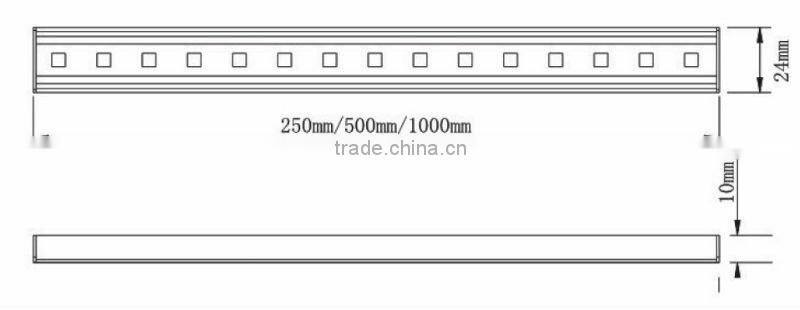

Dimension: 250/500/1000x24x10mm (other length can be nominated by customer)
Waterproof IP65, suitable for indoor and outdoor usage

5050 SMD led rigid strips

 5050 SMD led rigid strips

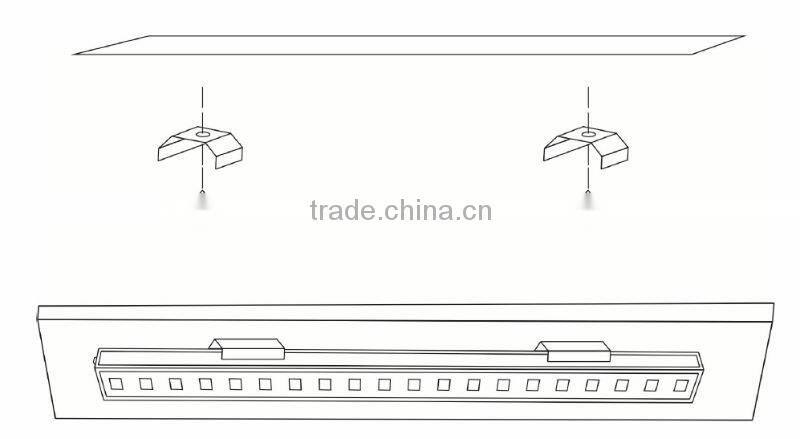

 Method of Installation
1. Fix the two clips with screws
2. Put the strip into the clips

 5050 SMD led rigid strips





5050 SMD led rigid strips



 Cautions

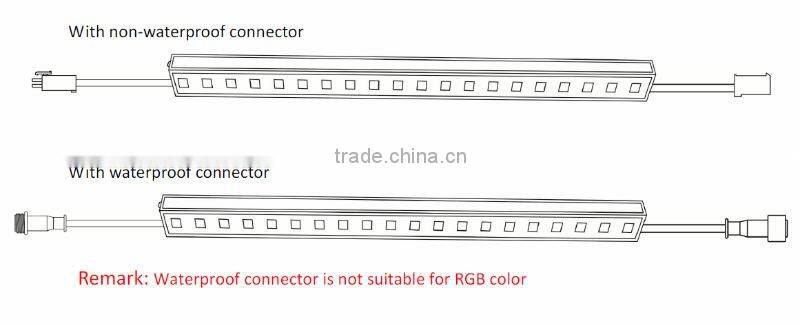

If used outside, please make sure the connector between the strip and the power supply is
waterproof, or shortcut may damage the strip and the power supply.
