Help CenterAutomatic Spiral Forming Machine HJ1602A
Related Products
-
Spiral Pipe Making Machine ----HJTF1500(saw Cutting)NegotiableMOQ: 1 Set -
Spiral Pipe Making Machine---HJTF1602BNegotiableMOQ: 1 Set
-
HVAC Duct Former- HJTF1500 Roll ShearsNegotiableMOQ: 1 Set
-
Flexible Metal Sheet-HJTF1500(saw Cutting)NegotiableMOQ: 1 Set
-
Spiral Air Machine---HJTF1602BNegotiableMOQ: 1 Set
Specifications
automatic spiral forming machineOur clinching rollers Hydraulic automatic.Diameter range 80 - 1600mm
automatic spiral forming machine
The module technique gives the customer the possibility to choose between a number of options, allowing him to create a machine a number of options, allowing him to create a machine for his specific needs.
The frequency controlled main drive ensures a smooth acceleration and an almost noiseless operation.
The outstanding patented flying slitter cuts the tubes to length without noise or hot sparks as known from the saws and provides smooth tube ends without deburring.

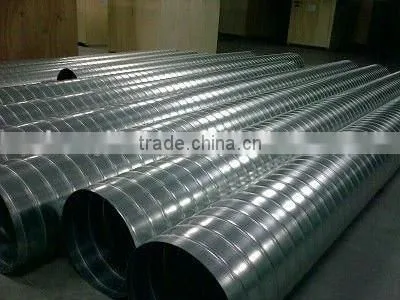

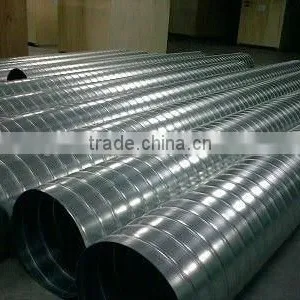

The design and options fulfill the needs in HVAC to produce in mild steel, galvanized steel, stainless steel or aluminum
The corrugation unit allows a reduction in material costs and makes the bigger diameter tubes more rigid.
Main Technical Specification:
Diameter range |
80 - 1600mm |
Thickness of strip |
0.4 -1.3mm Glvanized steel |
0.8mm Sinless steel | |
0.4-1.2mm Auminum | |
| |
Strip Width |
standard 137mm up to 1mm thickness, 140mm above. Other widths on request. |
Lock seam |
Outside tube, on the inside on request. |
Production speed |
Max. 60 meters/min. depending on material |
Cutting system |
The pqtented flying slitter |
Net weight |
2900kg |
Gross weight |
3200kg |
Machine dimension |
3000mm*1950mm*1700mm, |
Package dimension |
3050mm*2000mm*1800mm |
Options |
Automatic length control system, controlled corrugation unit.METU flange slitter Saw blade cutter |
