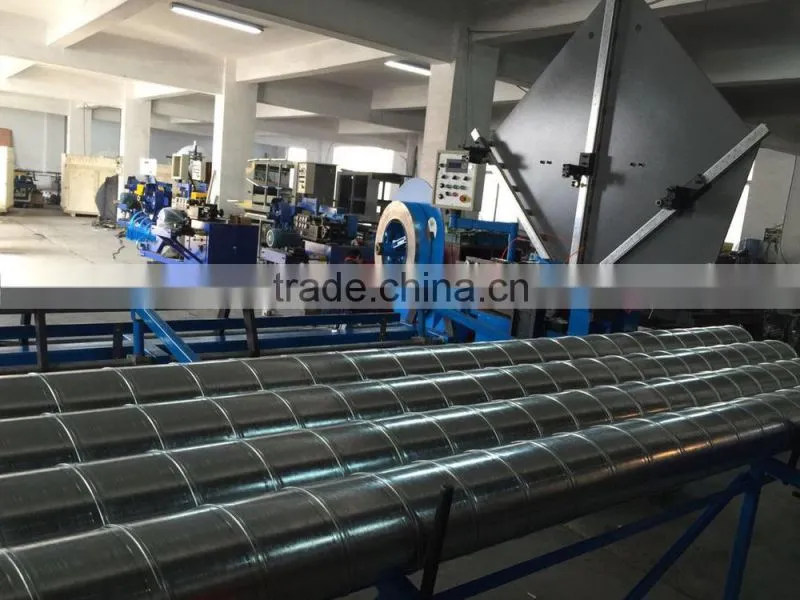

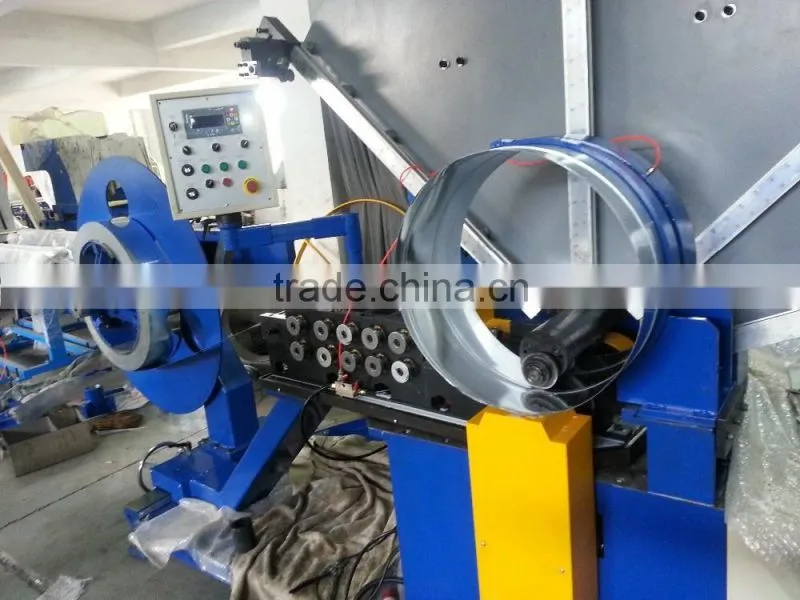

HVAC Duct Former- HJTF1500 Roll Shears
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Molding Machine
Pipe Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flexible Metal Sheet-HJTF1500(saw Cutting)NegotiableMOQ: 1 Set -
Spiral Air Machine---HJTF1602BNegotiableMOQ: 1 Set
-
Saw Cutting Tube Former---HJTF1500NegotiableMOQ: 1 Set
-
Roll Shears Automatic Pipe Making Machine ----HJTF1500NegotiableMOQ: 1 Set
-
Spiral Flexible Pipe Making Machine---HJTF1602BNegotiableMOQ: 1 Set
Condition
New
Type
Pipe Molding Machine
Pipe Material
Stainless Steel
Application
Drain Pipe
Place of Origin
Jiangsu, China
Brand Name
HJKJ
Model Number
HJTF1500
Voltage
380V/50HZ
Power(W)
5.5kw
Dimension(L*W*H)
3720*2000*2550mm
Weight
2500kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

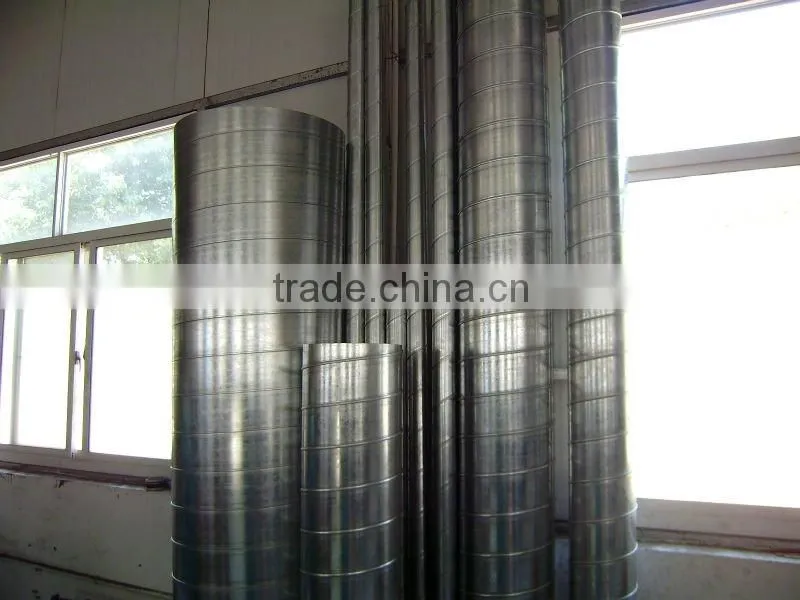

stainless steel pipe former
HJTF1500(Saw Cutting)Diameter range 80-1500mmMain Technical Date:
Diameter range |
Φ80-Φ1500mm |
Tube Length |
120-8000mm |
Thickness of Strip |
0.4-1.2mm |
Width of Strip |
137-140mm |
Strip Speed |
1-45/min |
Lockseam |
Outside tube,on the inside on request |
Control System |
PLC automatic control |
Electric Power |
380V/3PH/50HZ (Acorrding to customer’s request) |
Main Motor Power |
5.5kw |
Cutting System |
Saw cutting |
Cutting motor power |
4kw |
Suitable Material |
Galvanized steel,Stainless steel,Aluminum |
Weight |
About 2200kg |
Dimension |
3200*1950*2610mm |
,
