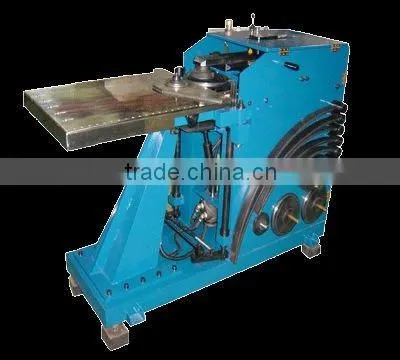

Spiral Elbow Forming Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Pipe Molding Machine
Place of Origin:
Jiangsu, China
Brand Name:
HJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhangjiagang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Pipe Molding Machine
Place of Origin
Jiangsu, China
Brand Name
HJ
Model Number
HJEM1100
Specifications
Hydraulic elbow making machine1.Electrical power380V/50HZ/3PH 2.Diameter range of the curves125-1000mmHydraulic elbow making machine
Technical Data
Electrical power |
380V/50HZ/3PH |
Diameter range of the curves |
125-1000mm |
Max. segment angle |
30o |
Sheet thickness |
Galvanized steel 0.4~1.2mm |
Stainless: 0.4~0.9mm | |
Aluminum: 0.4~1.2mm | |
Copper: 0.4~1.2mm | |
Flange heights |
5mm/7.5mm/10mm |
Recommended ranges |
5 mm to 200 mm diameter 7.5mm to 700mm diameter 10mm above 700mm diameter |
Circumferential speed of the roller |
0 - 15 m/min |
Weight |
680kg |
Dimensions(L*W*H) |
1350mm*620mm*1170mm |
Pckaging Size |
1530×730×1220mm |
