Help CenterSpiral Duct Making Machine
Related Products
Specifications
Spiral Tube former machine(Uncoiler together)1.diameter range 80-1600mm
2.thickness of strip 0.4-1.3mm

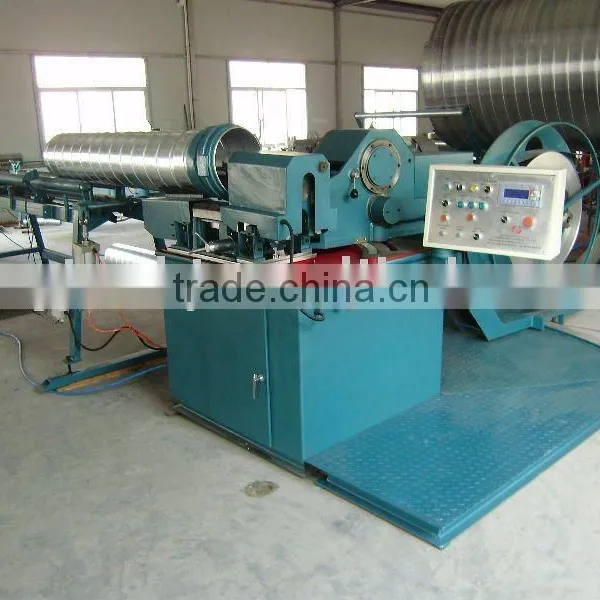

Spiral Tube former machine (uncoiler together)
Main Technical Specification:
Diameter range |
80 - 1600mm |
Thickness of strip |
0.4 -1.3mm Glvanized steel |
0.8mm Sinless steel | |
0.4-1.2mm Auminum | |
| |
Strip Width |
standard 137mm up to 1mm thickness, 140mm above. Other widths on request. |
Lock seam |
Outside tube, on the inside on request. |
Production speed |
Max. 60 meters/min. depending on material |
Cutting system |
The pqtented flying slitter |
Net weight |
2900kg |
Gross weight |
3200kg |
Machine dimension |
3000mm*1950mm*1700mm, |
Package dimension |
3050mm*2000mm*1800mm |
Options |
Automatic length control system, controlled corrugation unit.METU flange slitter Saw blade cutter |
The module technique gives the customer the possibility to choose between a number of options, allowing him to create a machine a number of options, allowing him to create a machine for his specific needs.
The frequency controlled main drive ensures a smooth acceleration and an almost noiseless operation.
The outstanding patented flying slitter cuts the tubes to length without noise or hot sparks as known from the saws and provides smooth tube ends without deburring.
The design and options fulfill the needs in HVAC to produce in mild steel, galvanized steel, stainless steel or aluminum
The corrugation unit allows a reduction in material costs and makes the bigger diameter tubes more rigid.
Zhangjiagang Hong Jun Science and Technology Co., Ltd. It is located in Zhangjiagang, a modern port city close to the Changjiang River, and with Suzhou, Wuxi, Changzhou, Shanghai-Ningbo Expressway to the south and Nantong city to the north, enjoying very convenient transport. The company boasts a team of high-caliber and experienced professionals. Leading by high technology, our company has been designed and developed and manufactured varities machinery for many democtic and overseas corporationa. We have gotten the certificates of ISO9001:2000 and ce. Our customers from many countries in the world.
In new century, the competition is focused on quality and credit. Quality and customers' satisfaction are the key of development. We will seize the market opportunity. We believe that quality and customer are number one priority. We want to get further development through experience absorption and communication. The chairman Chen Huibin and all the staffs welcome your visit.
