Specifications
1professional fuel injector trip test benchweight:40kg
3.humanization design
4.stable performance
petitive price

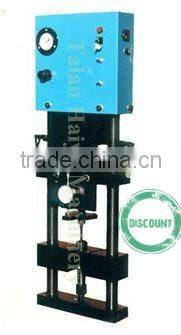

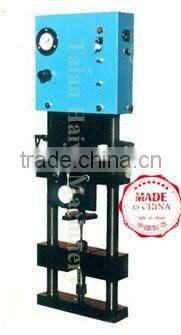

HY-PTXW injector trip test bench
professional injector trip test equipment, high quality
Introduction:
After the debugging of the injector flow, flow-up column components of injector must conduct the top stop debugging and trip debugging.STC type and high-pressure injector in the future all have flow-up column. After completing the injector leak test ,,the injector can be assembled to the debugging instrument to conduct the tappet top stop debugging or tappet trip debugging. Taking out the injector tappet, installing the elastic cushion and spring, reassembling the tappet, then the debugging is done.
Standard Specifications:
Name |
PT injector trip test bench |
Model |
PTXW |
Pressure |
550±20Kpa(80±3psi) |
Measurement range |
±0.01mm |
Debugging tolerance |
±0.01mm |
Weight |
40Kg |
Overall dimension |
40×200×850 mm |
CE certificate and ISO9001:2008 certificate
