Specifications
1 stepless frequency conversion,HY-PT Pump Test Bench2 BOSCH rail pipe
3 Cast iron operation platform
4 BOSCH pump.

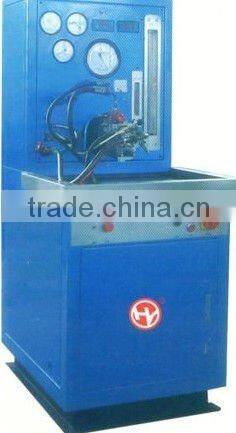

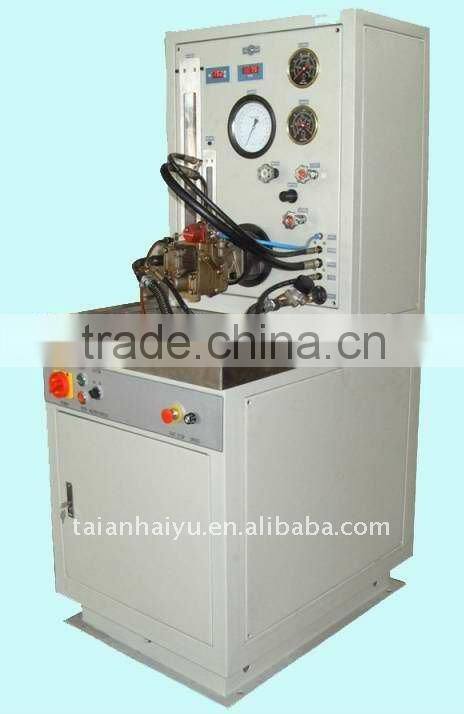

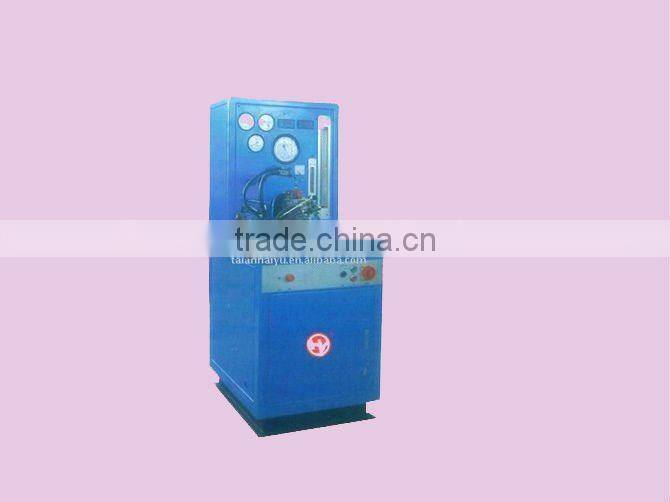

HY-PT Pump Test Bench!!
Professional test bench for PT pump
ISO 9001:2008 Certificate and CE Certificate
High quality with competitive price
PT Pump Test Bench is designed for testing PT Fuel Pump which is the patented product of CUMMINS in America. Its host uses the advanced and reliable stepless frequency conversion which guarantees its wide speed range and high accuracy of testing and also uses dedicated dual rotameter to meet the requirement of testing the CUMMINS PT Pump. It can meet the requirement of all kinds of PT Fuel pump such as PT(G),PT(G)VS,PT(G)MVS,PT(G)AFC,PT(G)AFC-VS,PT(G)EFC,PT(G)R,PT(H).
Alpha Frequency Converter |
3.7kw |
Power |
3KW |
Speed range |
stepless frequency conversion:0-4000 rpm or at will |
Test pressure of fuel |
≤2.5MPa |
Test pressure of air |
≤0.25MPa |
Test pressure of gear pump |
≤5MPa |
Overall dimension |
680(length),935(width),1730(height) |
Voltage |
Three phase four wire, 380v |
Net weigh |
300kg |
Filtering precision |
10um |
Testing type |
PT(G), PT(G)VS, PT(G)MVS, PT(G)AFC, PT(G)AFC-VS, PT(G)EFC, PT(G)R, PT(H) and other PT pumps. |
