HY-PT-1 Pump Test Bench

HY-PT-1 Pump Test Bench thumbnail-1
HY-PT-1 Pump Test Bench photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
haiyu
Model Number:
PT-1
Contact Supplier Request Quote Chat Now
Taian Haiyu Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name haiyu
Model Number PT-1

Specifications

1HY-PT -1pump test bench to test cummis pump with Revolving speed: 0~4000r/min.
2Cast iron operation platform

PT Pump Test Bench is designed for testing PT Fuel Pump which is the patented product of CUMMINS in America. Its host uses the advanced and reliable stepless frequency conversion which guarantees its wide speed range and high accuracy of testing and also uses dedicated dual rotameter to meet the requirement of testing the CUMMINS PT Pump. It can meet the requirement of all kinds of PT Fuel pump such as PT(G),PT(G)VS,PT(G)MVS,PT(G)AFC,PT(G)AFC-VS,PT(G)EFC,PT(G)R,PT(H).

Main function:

  1. Testing gear pump pressure and vacuum experiment of PT Pump
  2. Testing idle speed of PT Pump
  3. Testing weight assisted pressure
  4. Testing pressure and discharge in every checking point of PT Pump
  5. Testing AFC of PT Pump
  6. Testing stoping oil of PT Pump
  7. Testing rack-travel distance of PT Pump
  8. Testing oil return of PT Pump
  9. Testing ASA valve of PT Pump

Configuration:

  1. Power:3KW
  2. speed range: stepless frequency conversion:0-4000 circle/min or at will
  3. test pressure of fuel:≤2.5MPa
  4. test pressure of air:≤0.25MPa
  5. test pressure of gear pump:≤5MPa
  6.  fuel can be cooled by air and heated by heater. The temperature can be displayed in the screen and controlled automatically.
  7. overall dimension:680(length),935(width),1730(height)

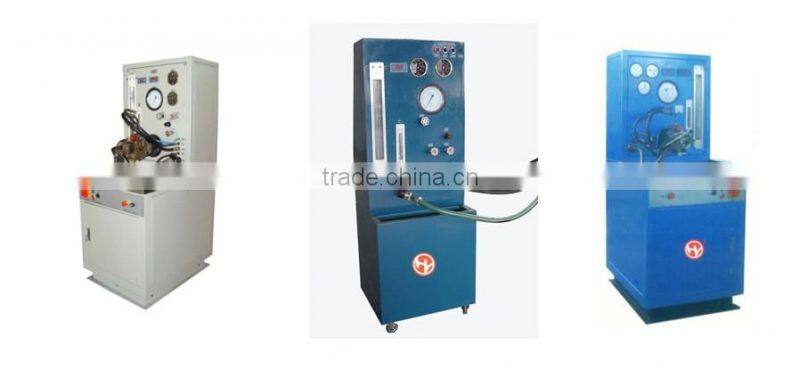

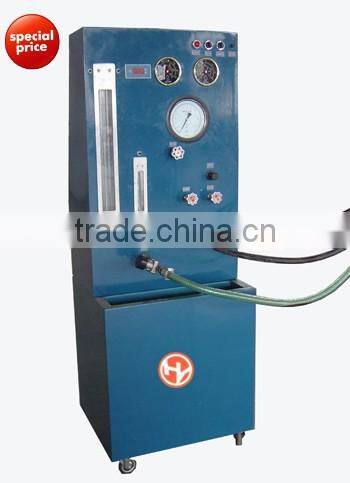

  8. net weigh:300kgHY-PT-1 pump test benchHY-PT-1 pump test bench
