Specifications
Cummins test machineCast iron operation platform
pump test bench
Flow test asjustment.
Spurt inclination

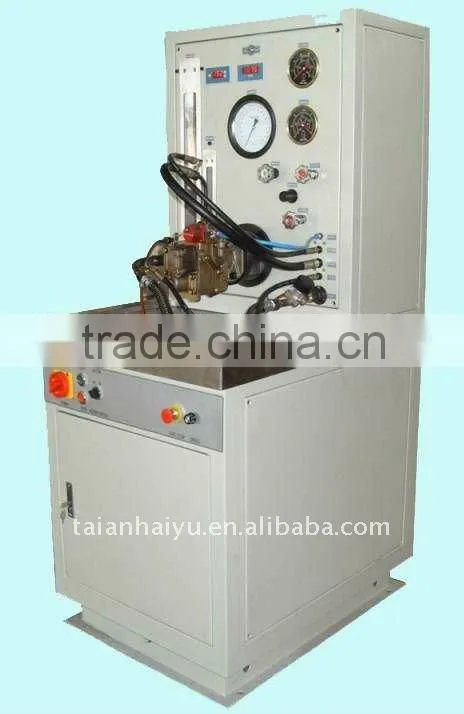

HY-PT Cummins Test Machine
PT Cummins Pump Test bench is used to test, repair and measure Cummins PT pump.
PT Cummins Pump Test bench is used to test, repair and measure Cummins PT pump.
Features:
1. Adjust speed with the inverter, which have high accuracy,easy operation, saves
energy.
2.The flow meter, pressure gauge and vacuum gauge in UK system 3 . The main flow meter has specific design dual scale.
3.fuel injectors test bench is special equipment used to provide adjustment of flow test for CUMMINS PT fuel injector. It can simulate the running condition of engine. It has high measure precision, quick sampling speed, extraordinary property, and convenient operation.
Power |
3KW |
|
speed range |
stepless frequency conversion:0-4000 circle/min or at will |
test pressure of fuel |
<=2.5MPa |
test pressure of air |
<=0.25MPa |
test pressure of gear pump |
<=5MPa |
overall dimension |
680(length),935(width),1730(height) |
net weigh |
300kg |
|
function |
Gear pump pressure and vacuum test of PT Pump. |
Idle speed test of PT Pump. | |
Weight assistant pressure test of PT Pump. | |
Pressure and flow test in every checking point of PT Pump. | |
AFC test of PT Pump. | |
Oil stopping test of PT Pump. | |
ASA valve test of PT Pump | |
Oil return test of throttle of PT Pump. |
