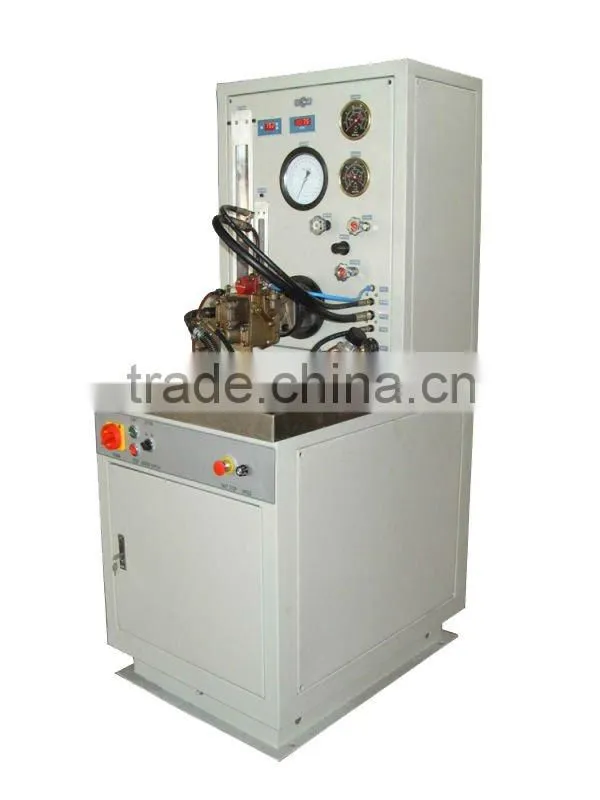

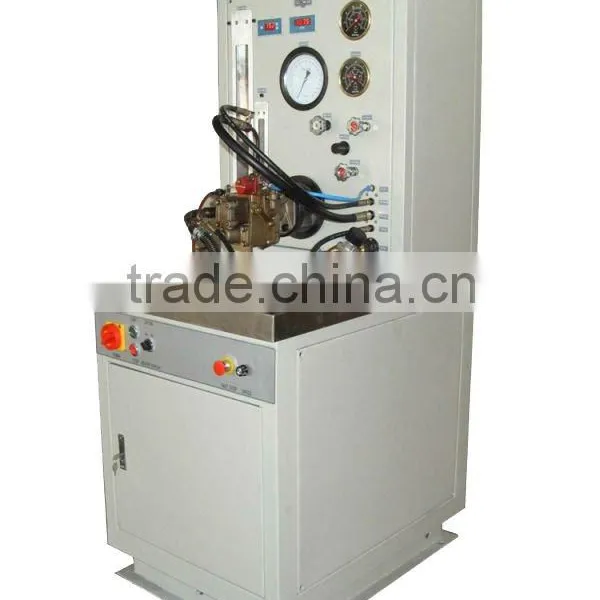

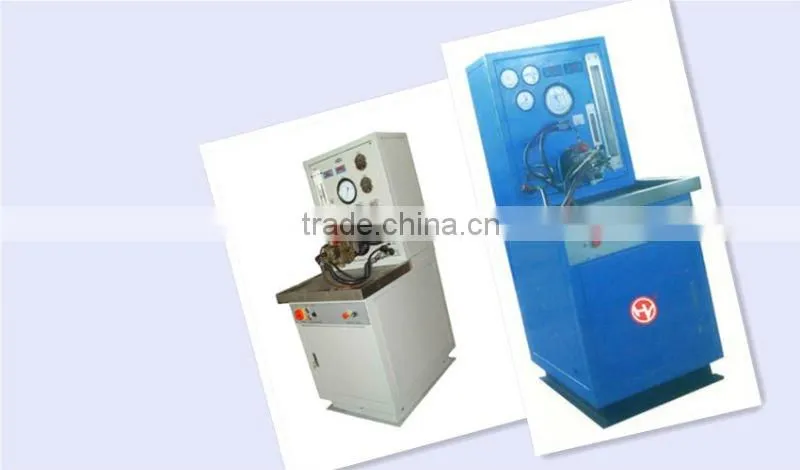

For Engine Test Equipment,HY-PT Pump Test Bench

Name: For Engine Test Equipment,HY-PT Pump Test Bench
Brand: Haiyu
SKU: 114727255

US$ 4,400 - 4,700 MOQ: 1 Set

Key Specifications

Type:

Engine Analyzer

Power:

3kw

Certification:

ISO9001

Taian Haiyu Machinery Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Engine Analyzer

Power 3kw

Certification ISO9001

Place of Origin Shandong, China

Brand Name Haiyu

Model Number HY-PT

Specifications

1.PT Fuel Pump Test Bench
2.Precise measurement
3.Easy to operate and maintain
4.Work reliable

HY-PT Pump Test Bench

Bulk order can be given some discount

Certification:ISO9001:2008 CE certificate

High tensile strength

good toughness

high resistance of vibration

parameters

Alpha Frequency Converter	3.7kw
Power	3KW
Speed range	stepless frequency conversion:0-4000 rpm or at will
Test pressure of fuel	≤2.5MPa
Test pressure of air	≤0.25MPa
Test pressure of gear pump	≤5MPa
Overall dimension	680(length),935(width),1730(height)
Voltage	Three phase four wire, 380v
Net weigh	300kg
Filtering precision	10um
Testing type	PT(G), PT(G)VS, PT(G)MVS, PT(G)AFC, PT(G)AFC-VS, PT(G)EFC, PT(G)R, PT(H) and other PT pumps.

Configuration:

Power:3KW
speed range: stepless frequency conversion:0-4000 circle/min or at will
test pressure of fuel:≤2.5MPa
test pressure of air:≤0.25MPa
test pressure of gear pump:≤5MPa
fuel can be cooled by air and heated by heater. The temperature can be displayed in the screen and controlled automatically.
overall dimension:680(length),935(width),1730(height)
net weight:300kg
