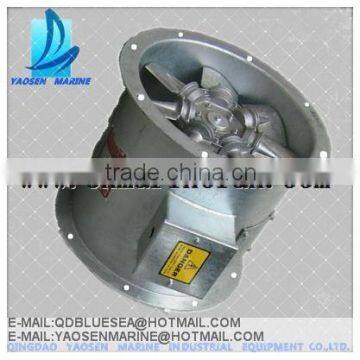

CZT Series Marine Axial Exhaust Fan

CZT Series Marine Axial Exhaust Fan thumbnail-1
CZT Series Marine Axial Exhaust Fan thumbnail-2
CZT Series Marine Axial Exhaust Fan thumbnail-3
CZT Series Marine Axial Exhaust Fan thumbnail-4
CZT Series Marine Axial Exhaust Fan thumbnail-5
CZT Series Marine Axial Exhaust Fan thumbnail-6
CZT Series Marine Axial Exhaust Fan photo-1
CZT Series Marine Axial Exhaust Fan photo-2
CZT Series Marine Axial Exhaust Fan photo-3
CZT Series Marine Axial Exhaust Fan photo-4
CZT Series Marine Axial Exhaust Fan photo-5
CZT Series Marine Axial Exhaust Fan photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Duct Fan
Blade Material:
Other, Aluminum
Contact Supplier Request Quote Chat Now
Qingdao Yaosen Marine Industrial Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT/AIRPORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Duct Fan
Blade Material Other, Aluminum
Place of Origin Shandong, China
Brand Name YAOSEN
Model Number CZT
Voltage 220/230/380/400/415/420/440/480V etc.
Power 0.25~75 KW
Air Volume 200-180000 M3/H
Speed 970-3500RPM
Certification CCC, CSA, GS, ROHS, Other, CCC, CSA, GS, ROHS, CCS/ABS/RINA/RS/BV/DNV/LR/GL/VR etc
After-sales Service Provided Overseas service center available

CZT series Marine Axial flow fan

   CZT series Marine axial exhaust fan

1.General

CZT series Marine axial exhaust fan (simply the fans) are capable of blowing air, such as ocean air containing salt vapor and corrosive air containing a small quantity of oil vapor. They are suitable for cabin air ventilation and exchange on oceangoing vessels. They are also applicable in other places that suit.

The fan is designed and manufactured according to the standard of GB11864 marine or Navy Axial Flow Fans and The manufacture Rules of Sea-going Steel Ships.

2.Characteristics

CZT series Marine axial exhaust fan Casing can be opened.

Reverse rotation possible.

Good anti-corrosiveness.

Strong performance in anti-swing, vibration-proof and impact resistant

3.Structure type

CZT series Marine axial exhaust fan is manufanctured with a built-in casing motor structure.The vane wheel is directly mounted om the motor shaft.The vane wheel is made of anti-corrosive case aluminum allow while the casing is made of welded common steel.As desired, the casing can either be made into an integral one or an open type along the axial direction.



4.Working Conditions

 Medium temperature: -25°C ~ +50°C

Max relative humidity: 95%

Periodical swing:±22.5°

Continued transversal incline:±15°

Continued longitudinal incline:±10°

Vibration: existent

Impact: existent

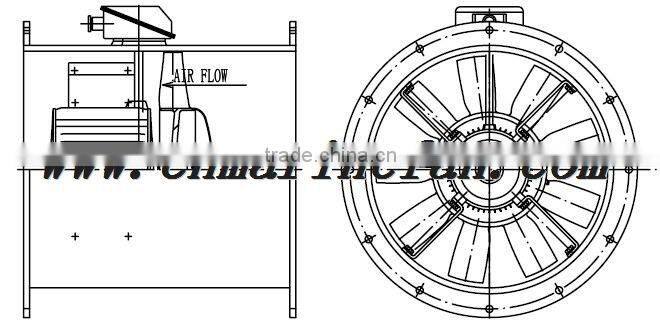

5.CZT Marine Axial Fan Drawings

CZT series Marine axial exhaust fan



Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !

CZT series Marine axial exhaust fan

CZT series Marine axial exhaust fan

CZT series Marine axial exhaust fan
