Automatic plastic blow molding machine
Basic specification:
1. Volume : 1.5L-6L
2. Output : 1-cavity ---- 800 BPH
2-cavity ---- 2400 BPH
4-cavity ---- 5000 BPH
6-cavity --- 7200 BPH
3. Material: PET/PP
Introduction:

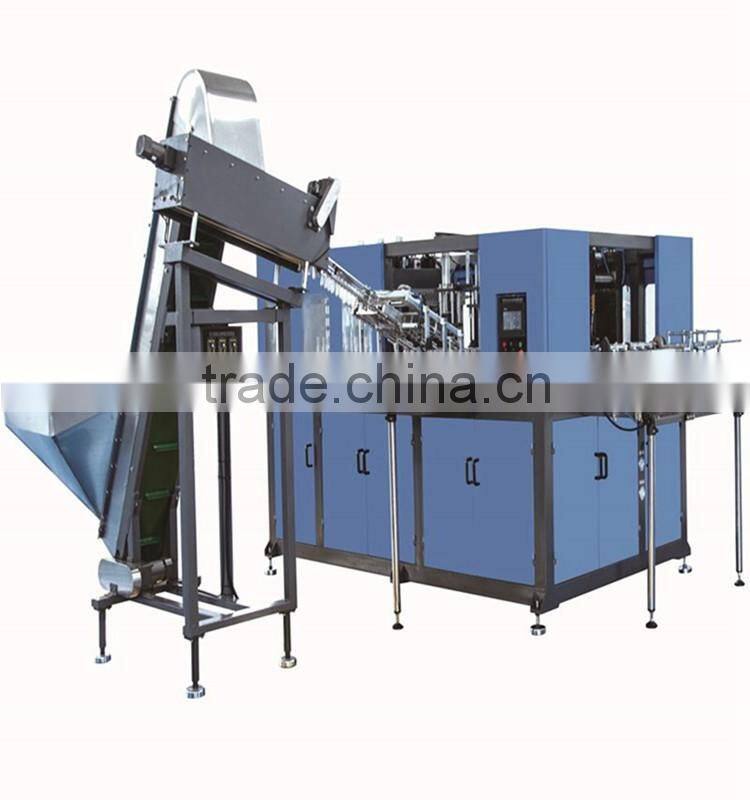

BT-W814 Automatic stretch blow moulding machine is suitable for producing PET/PP, PLASTIC CONTAINERS and BOTTLES IN ALL SHAPES. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle, cosmetics, wide-mouth bottle and hot fill bottle, etc.
Features:
1. Stable performance with advanced Delta PLC.
2. Feeding system carries the preforms by robot automatically.
3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared pre heater.
4. High adjust ability to enable the pre heater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the pre heater with an automatic thermostatic apparatus. Bottle Blowing Machine .
5. High safeties with security automatic-locking apparatus in each mechanical action , which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
6. No contamination and low noise with the air cylinder to drive the action in stead of the oil pump.

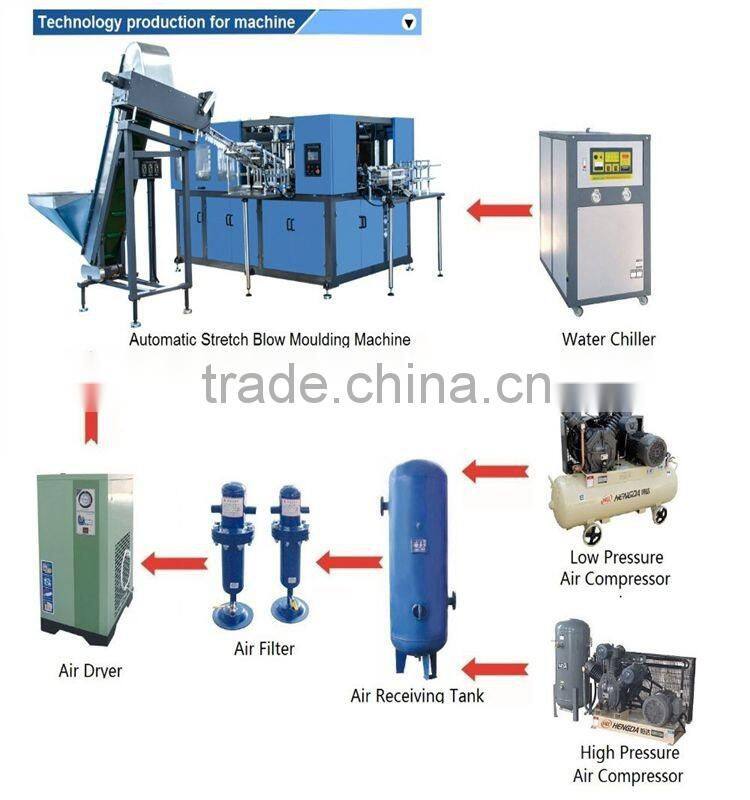

7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the Bottle Blowing Machine.
8. Strong clamping force with high pressure and double crank links to lock the mold.
9. Two ways of operating: automatic and manual. Bottle Blowing Machine .
10. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
11. Contamination is avoided for the bottle body.
12. Ideal effect of the chilling with the chilling system.
13. Easy installation and starting Bottle Blowing Machine.
14. Low rejection rate: less than 0.2 percent.
15. Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting, maintenance and other benefits.
TECHNICAL PARAMETER

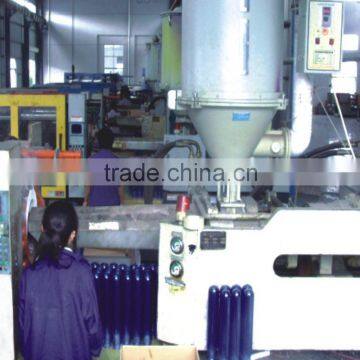

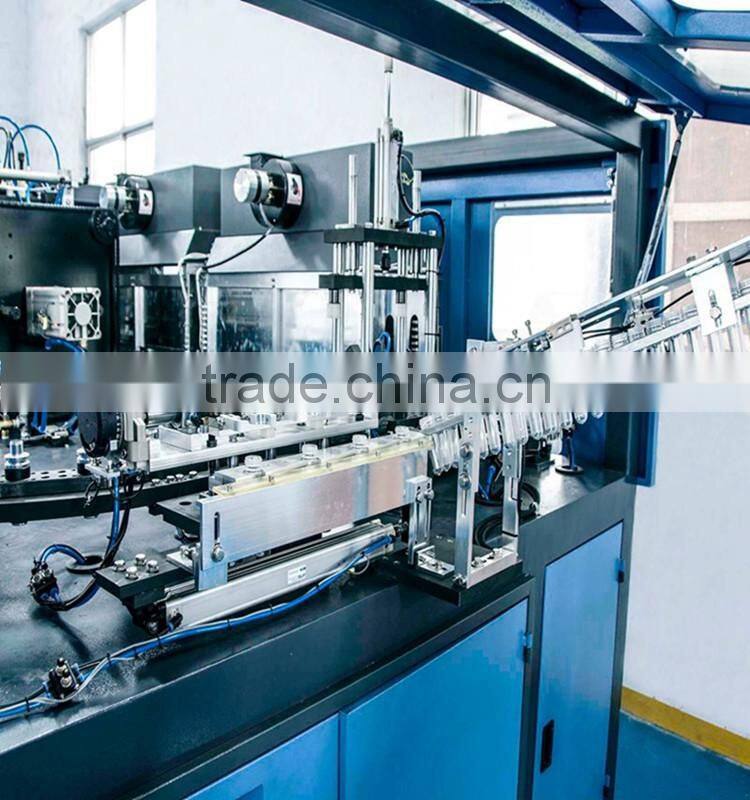

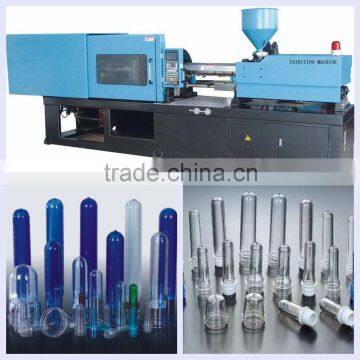

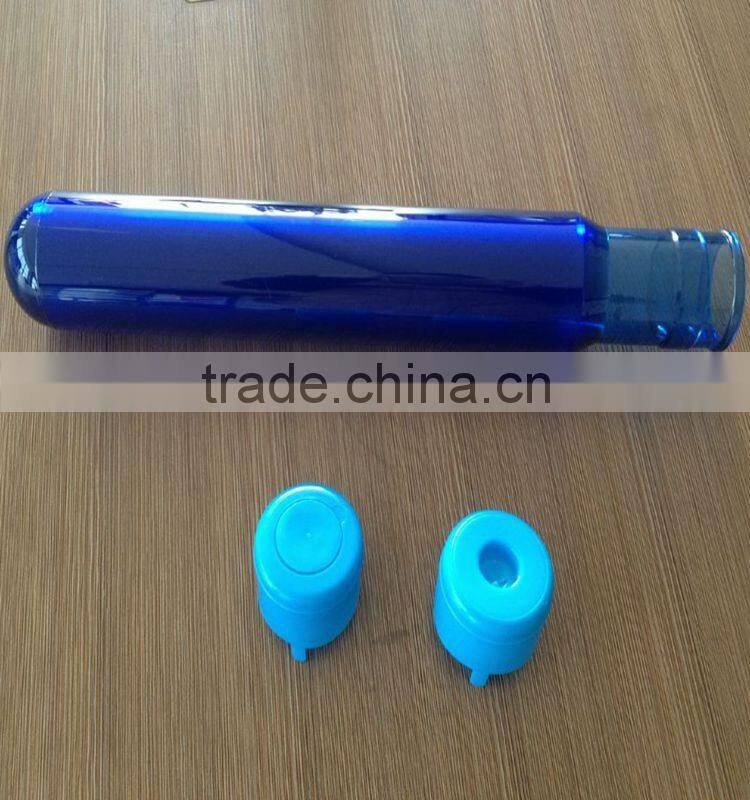

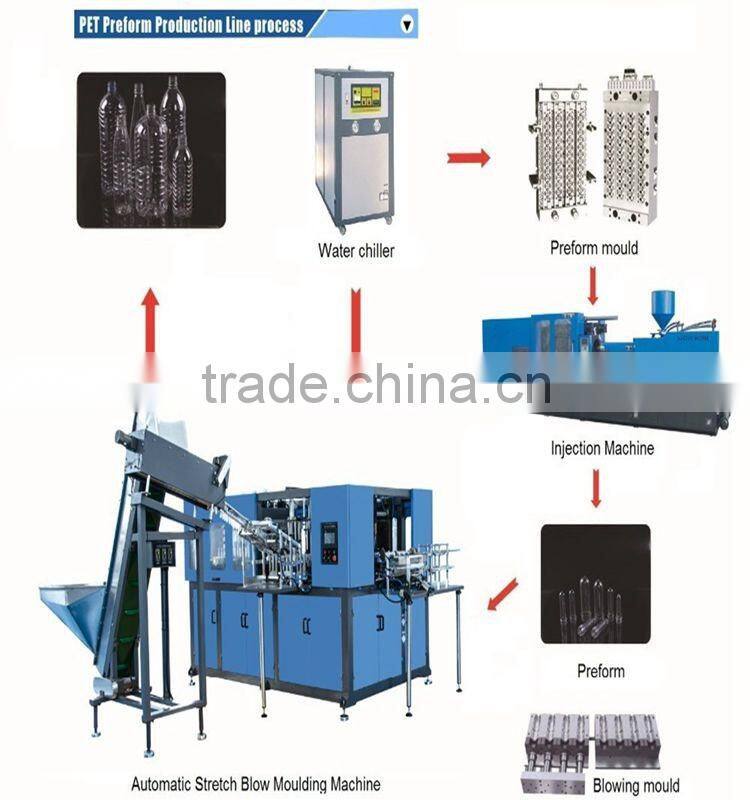

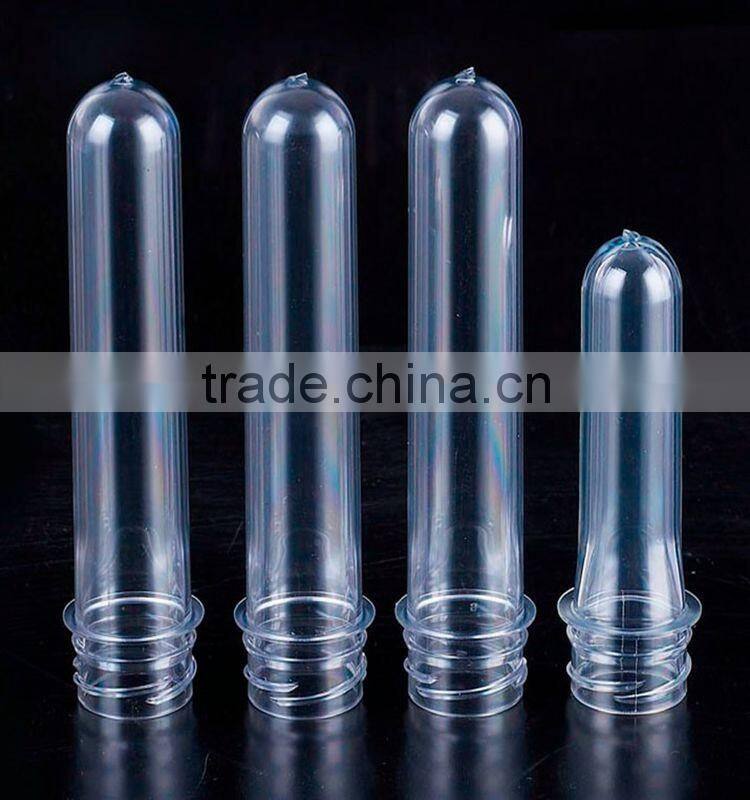

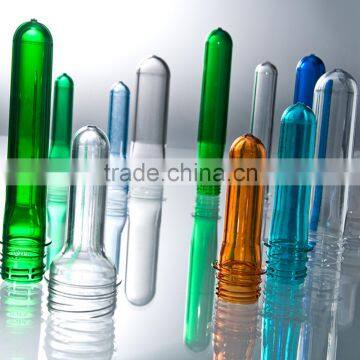

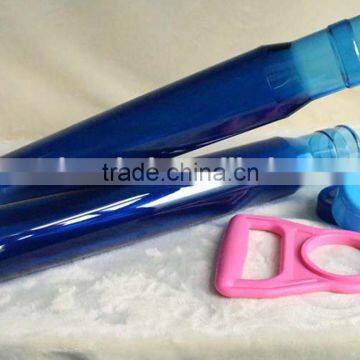

Picture for Ref.:
Our service:
1. your inquiry related to our product & price will be replied within 24hours.
2.Well-trained & experienced staff are to answer all your inquires in English of course.
3.OEM&ODM projects are highly welcomed. We have strong R&D team here to help.
4.Your business relationship with us will be confidential to any third party.
5.Good after sale service offered, please get back if you got question.
