Forged Brass vertical Spring Check Valve
- 300000 Piece / Pieces per Month
- FOB Ningbo
- T/T
Product Details
Standard or Nonstandard: | Standard | Structure: | Check | Pressure: | Medium Pressure |
Power: | Hydraulic | Material: | Brass | Temperature of Media: | Normal Temperature |
Media: | Water | Port Size: | 1/4" 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4" | Place of Origin: | Zhejiang, China |
Model Number: | WD-6103 | Brand Name: | World Brass |
Product Description
Specifications
-Size:1/4" 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4"-Working Pressure:PN16.
-Applicable Medium:Water.
WD-6103 Brass Spring Check Valve
♦ Size:1/2" 3/4" 1"
• Working Pressure:PN16.
• Working Temperature:-20°C≤t≤150°C.
• Applicable Medium:Water.
• Threads Standard:IS0 228.
N | DN(mm) | Weight(g) | BOX/CTN |
1/2" | 15 | 130 | 10/100 |
3/4" | 19 | 180 | 6/60 |
1" | 24 | 250 | 5/50 |
11/4" | 30 | 350 | 3/30 |
11/2" | 35 | 530 | 2/20 |
2" | 46 | 810 | 2/16 |
2 1/2" | 57 | 1400 | 2/18 |
3" | 70 | 2100 | 0/4 |
4" | 85 | 3200 | 0/4 |
Part | Material |
Cap | ABS |
Filter | Stainless Steel |
Body | Brass |
Spring | Stainless steel |
Piston | PVC Or Brass |
Spring | PVC |
Seal Gasket | NBR |
Bonnet | Brass & Zinc |

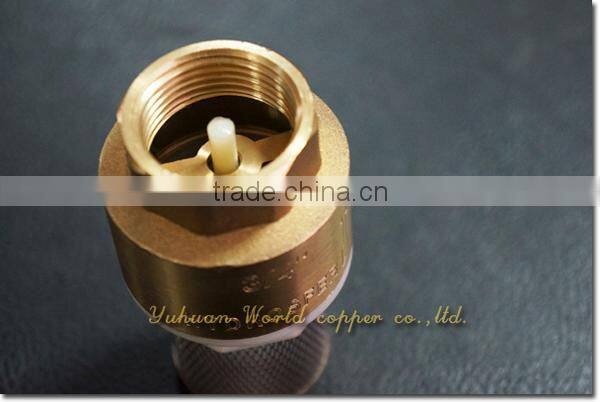

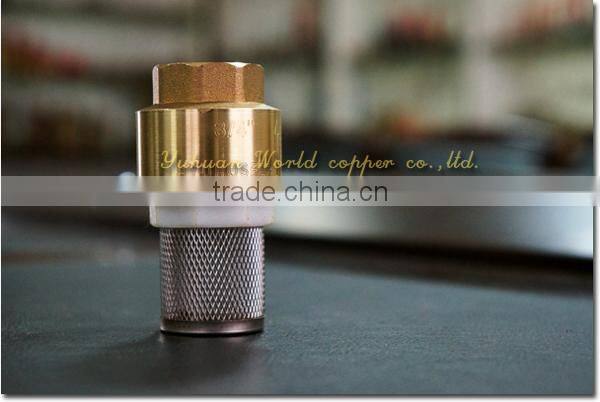

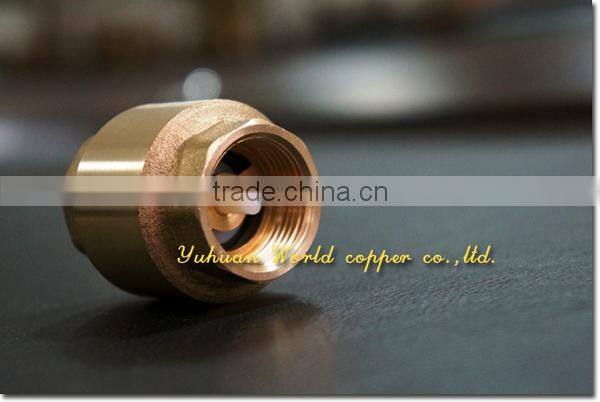

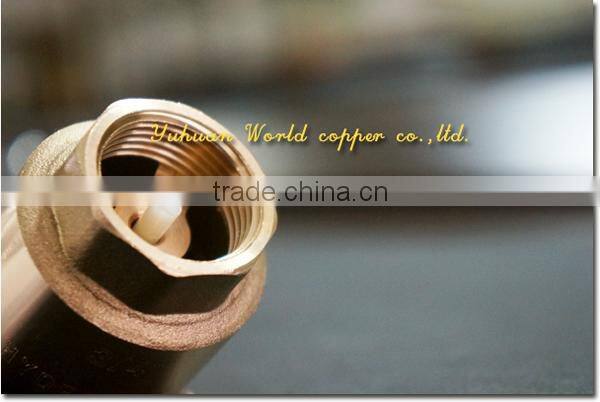

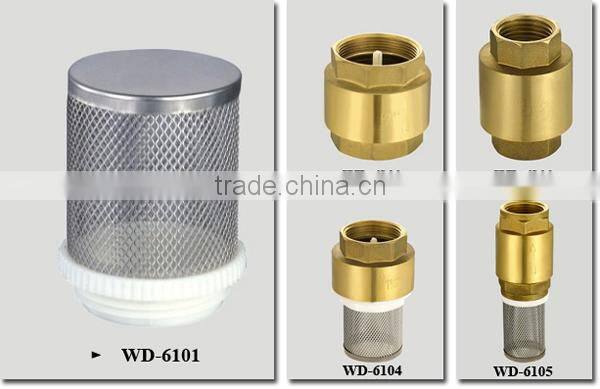

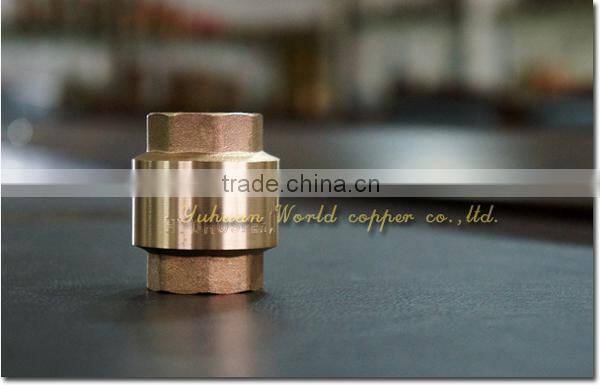

Product's pic:
♦ Advantage |
•Prompt Quotation •Punctual Delivery •Honest Reliable Prestige And Elegant Design. |
•Competitive Price •100% leakage test •Strictly & perfect management is garantee for production |
•Guaranteed Quality •Sincere service •CE approved.ISO9001 Certificate.etc. |
•Specialized in manufacturing,supplying a wide range of Bronze&Brass Valves For more than 15years |
•Have rich experience and strong ability to develop new products. |
•Have ability to design the products based on your requirement. |
•The important that Im on line now and u will contact me about the products u need at any time. |
♦ Production and inspection step | |||
1 | Purchasing the raw material | 10 | PQC inspection |
2 | IQC inspection | 11 | Surface treatment |
3 | Cutting material | 12 | PQC inspection |
4 | PQC inspection | 13 | Assemble parts to full products |
5 | Forging parts | 14 | Testing |
6 | PQC inspection | 15 | Packing |
7 | Sanding or Polishing parts | 16 | OQC inspection |
8 | PQC inspection | 17 | Delivering |
9 | Machines for processing | 18 | Reorder From Customers |
♦ Packaging Detail: | ♦ Delivery Detail: | |||||||
♦ International standard Export Packaging: | ♦ 30-45 days after receipt the deposit. | |||||||
Plastic bag→Inner box→Carton→Pallet. | ||||||||
♦ According to Customers' Specific Requirments. |
♦ Contact Information |
M.B.:86-15958605251 QQ :735734707 Web: /
Tel :86-576-87111617 Skype:yoki.6891 http://world-brass.en.china.cn/
Fax :86-576-87111688
Add:Hexin Industrial Zone,Qinggang,Yuhuan,Zhejiang,PRC.317606
Contact us at any time if have any inquiry!!!
♦ Plz note your Comapny & your name.
♦ Plz let us know exactly what u need along with the item size and quantities required.
