Specifications
1. ISO9001 and ISO14001 approval.2. CE passed.
3. Professional manufacturer.
4. IP65 protective grade.

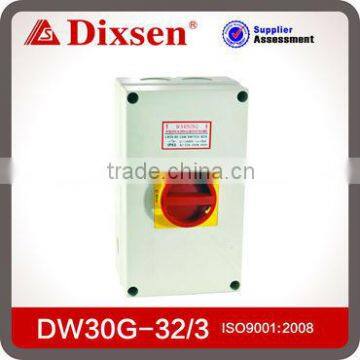

DW30G Series Surface mounting pretective enclosure
It is only suit for M2 escutcheon. It can be used as maintenance switch to prevent from being turned on by unauthorized personnel, or during maintenance and repair work. Three padlocks at most. (M2 Escutcheon available only)
What is maintenance switch?
It's a switch is an enclosed main switch with emergency-off function for an individual electrical load circuit or motors, connecting kinds of electric loads. The switches, which have high strength durable plastic enclosures, are intended for surface mounting or attachment to machines. The enclosure is equipped with entry knockouts and desined with extra space for easy wiring. The enclosures are suitable for applications in an aggressive environment, such as oil, chemical substances and grease, etc. Owing to the installation closed to the motor or the load circuit, each operator can protect himself against unintentional and uncontrolled switching-on of the machine or installation by fixing his padlock (3 max.) For a correct type selection it is important to determine a type according to the switching capacity, cable cross section, size of enclosure and knockouts are essential factors for the selection of the suitable Switch.
Cam Switch with Protective enclosure (IP65): Below is the selection form.
| Type | Rated Thermal Current |
No. of Poles |
PCS./CTN. |
DW30G-20/3 |
20A |
3P |
30 |
DW30G-20/4 |
4P |
30 |
|
DW30G-32/3 |
32A |
3P |
30 |
DW30G-32/4 |
4P |
30 |
|
DW30G-40/3 |
40A |
3P |
18 |
DW30G-40/4 |
4P |
18 |
|
DW30G-63/3 |
63A |
3P |
18 |
DW30G-63/4 |
4P |
18 |
|
DW30G-80/3 |
80A |
3P |
8 |
DW30G-80/4 |
4P |
8 |
|
DW30G-100/3 |
100A |
3P |
8 |
DW30G-100/4 |
4P |
8 |
Feature: Cam Switch with Protective enclosure (IP65) can be use as maintenance switch. Also called Cam Switch with Protective enclosure or cam switch with box IP65.
2. Packing show
3. Company show
4. Production series
....
