Help CenterRemovable Key Drive Main Switch/Cam Switch/Off-on Switch
Related Products
-
DW26Z ON/OFF Cam Switch With Indicating LightUS$ 7.5 - 13MOQ: 100 Pieces -
CAM Switch Main Switch With Lock and Indicate LightUS$ 8.5 - 14.5MOQ: 100 Pieces
-
Change Over Switch CAM Switch Selector SwitchUS$ 1.5 - 16.5MOQ: 100 Units
-
Surface Mounting Cam Switch With Plastic ShieldUS$ 2.5 - 4.5MOQ: 100 Pieces
-
DW30S OFF-ON Padlock Cam SwitchUS$ 3 - 5.5MOQ: 100 Packs
Specifications
1. ISO9001 and ISO14001 approval.2. CE passed.
3. Professional manufacturer.
4. Removable key drive.

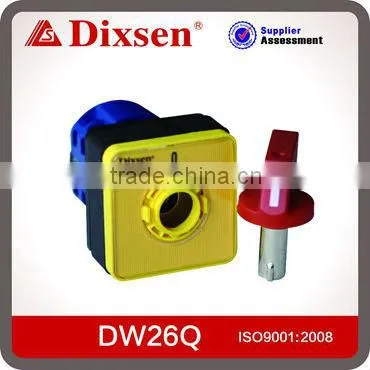

Removable key drive Main switch:(OFF-ON SWITCH)
The switch is designed a key can be removed when handle at OFF position. this function to prevent from being turned on by unauthorized personnel.
Below is selection form:
Type |
Rated Thermal Current |
No. of Cells |
PCS./CTN. |
CARTON SIZE(cm) |
DW26Q-20/1 |
20A |
1 |
100 |
44×32×31 |
DW26Q-20/2 |
2 |
100 |
44×32×31 |
|
DW26Q-20/3 |
3 |
100 |
44×32×31 |
|
DW26Q-20/4 |
4 |
100 |
52×32×33 |
|
DW26Q-20/5 |
5 |
100 |
52×32×33 |
|
DW26Q-25/1 |
25A |
1 |
100 |
44×32×31 |
DW26Q-25/2 |
2 |
100 |
44×32×31 |
|
DW26Q-25/3 |
3 |
100 |
47×32×33 |
|
DW26Q-25/4 |
4 |
100 |
52×32×33 |
|
DW26Q-25/5 |
5 |
100 |
52×32×33 |
|
DW26Q-32F/1 |
32A |
1 |
72 |
47×32×33 |
DW26Q-32F/2 |
2 |
72 |
47×32×33 |
|
DW26Q-32F/3 |
3 |
64 |
47×32×33 |
|
DW26Q-32F/4 |
4 |
64 |
52×32×33 |
|
DW26Q-32F/5 |
5 |
100 |
unknow |
Notice: 32A switch is Finger protective main switch, please take note it.
Feature: Removable key drive, to prevent from being turned on by unauthorized personnel.
2. Packing show
3. Company show
4. Production series
....
