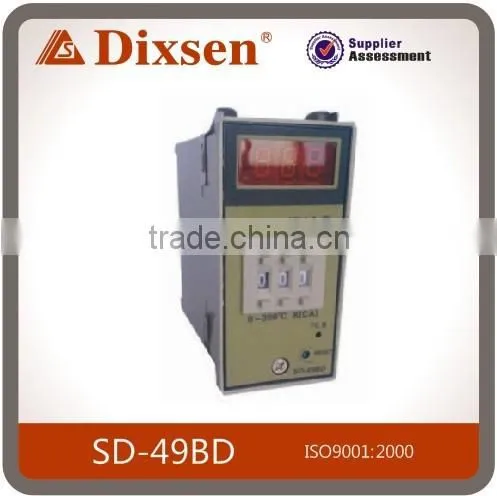

SD-49BD encoded setting nunber indicate temperature adjuster
- 20000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Dixsen | Model Number: | SD-49BD |
Product Description
Specifications
1. 96x96, 72x72, 48x96, 96x48, 48x482. Acuracy class: 1.5, 1.0, 0.5
3. Intelligent digital display temperature controller
XMT SERIES INTELLIGENT DIGITAL DISPLAY TEMPERATURE CONTROLLER
1. Display PV value and SV value by the high bright red and green double-row digital tube
2. Appointed input by sensing signal
3. Automatic amend by sensing unit
4. Function of second class data lock protection
5. Precise measurement:
1) ±1% FS ± one digit
2) ±0.5% FS ± one digit
6. Alarm range: free set the complete range
7. Operating power supply:
1) Switch power 85~264 VAC 50/60Hz
2) Transformer power supply: AC220V, 50/60Hz
Model | Size | Hole size |
XMTA | 96X96 | 92X92 |
XMTD | 72X72 | 68X68 |
XMTE | 48X96 | 45X92 |
XMTF | 96X48 | 92X45 |
XMTG | 48X48 | 45X45 |
SELECTION OF THERMOREGULATOR | |||||||||
Model | Setting Type | Input Signal | Accuracy Class | Law of Regulation | Alarm Function | Output | Power | Size(mm) | Hole size(mm) |
SD-96VN | Dial setting, No indicating | K,J,Pt100 | 1.5 | Two-phase style, time proportion adjustment style | It has alarm function | Solid state relay | AC110/220V 50/60Hz | 96X96X100 | 92X92 |
SD-96BM | Encoded setting, Deviation indicate | K,J,Pt100 | 1.5 | Two-phase style, time proportion adjustment style | It has alarm function | Solid state relay | AC110/220V 50/60Hz | 96X96X100 | 92X92 |
SD-72BN | Encoded setting, Deviation indicate | K,J-thermocouple thermal resistance | 1.5 | Time proportion adjustment style | - | Solid state relay | AC110/220V 50/60Hz | 72X72X100 | 68X68 |
SD-72BD | Encoded setting, Digital display | K,J-thermocouple thermal resistance | 1.0 | Time proportion adjustment style | - | Solid state relay | AC110/220V 50/60Hz | 72X72X100 | 68X68 |
SD-49BD | Encoded setting, Number indicate | K,J-thermocouple | 1.0 | Time proportion adjustment style | - | AC220V 3A resistance | AC110/220V 50/60Hz | 48X96X100 | 45X92 |
XMT-301 | Encoded setting, Deviation indicate | k-thermocouple thermal resistance | 0.5, 1.0 | two-phase style, time proportion adjustment style | It has alarm function | AC220V 3A resistance | AC110,220V,380V 50/60Hz | 160 X 80 X 150mm | 175 X 76mm |
