Specifications
1.VDE,UL,KEMA,CE,RoHS2.ISO9001,ISO14001,Found in 1992
3.MSQ, MES,ABO,MBO,DBP,D363,MR,RS
4.Europ,USA,Asia,Middle east,Africa

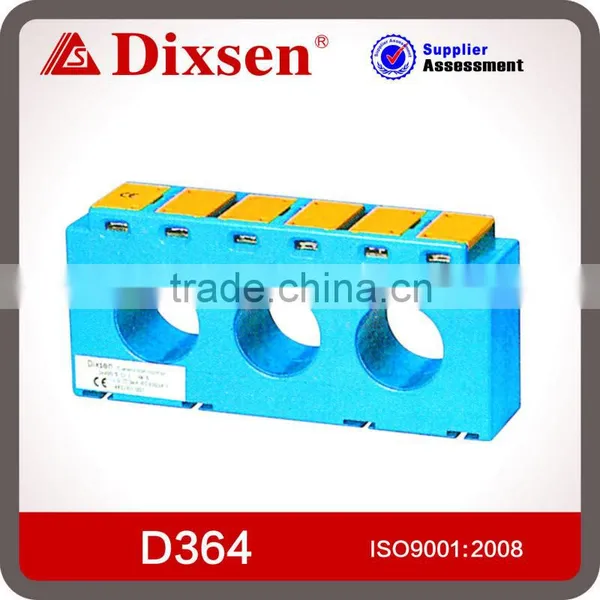

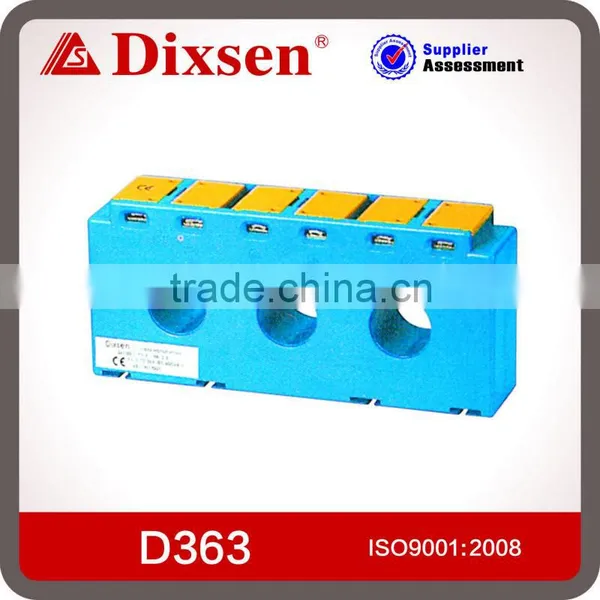

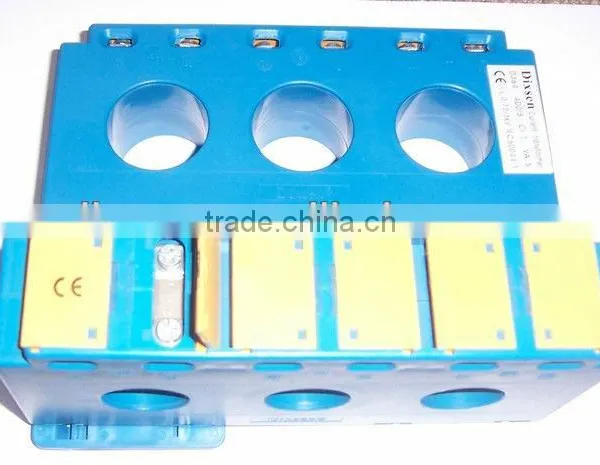

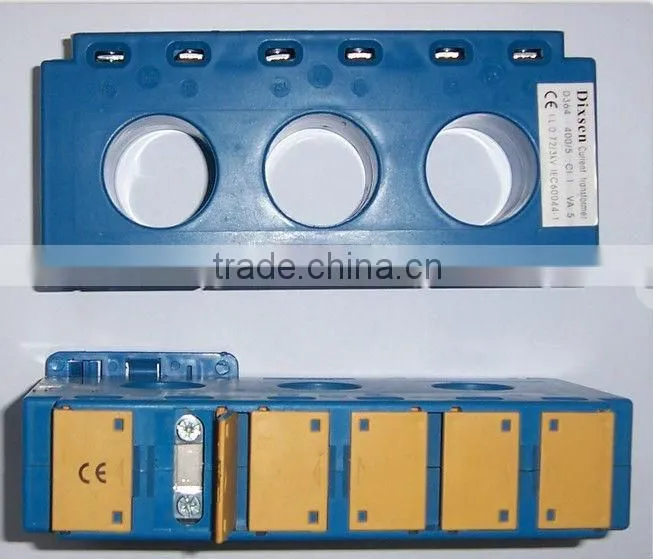

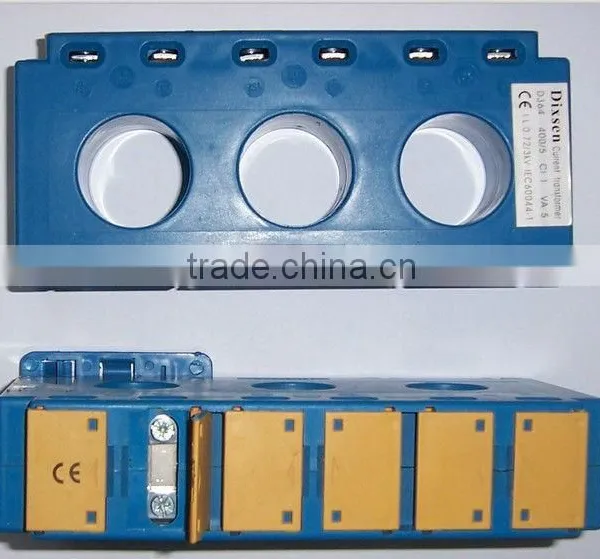

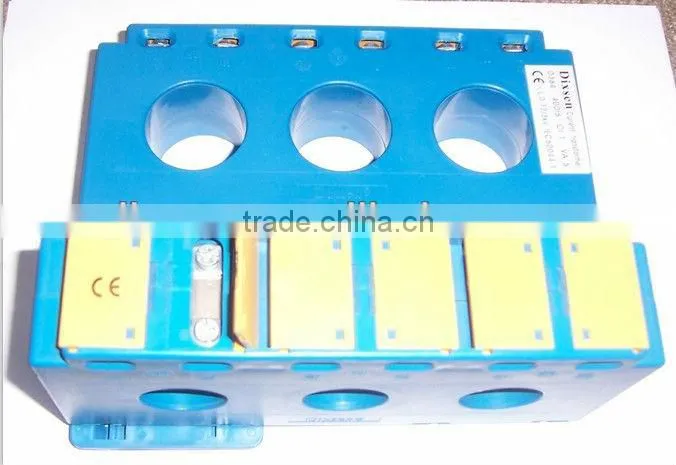

D363,D364 Three-Phase DIN rail current transformer
1.Description
A range of (2 frames) combination design 3 in 1 plastic case current transformer, perfectly math for install with most popular MCCB, greatly save space. Getting more and more popular in worldwide.

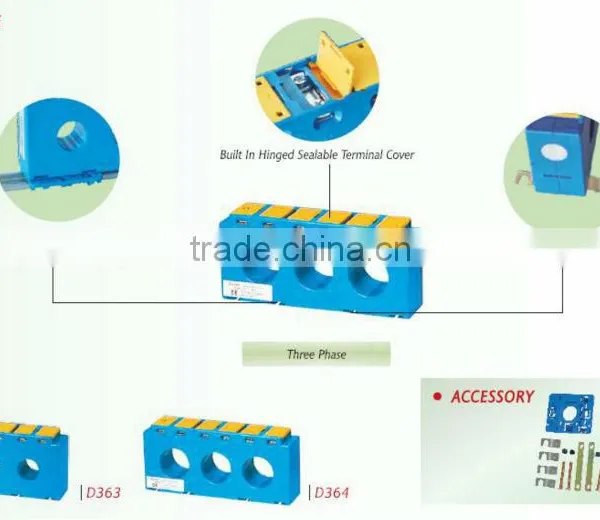

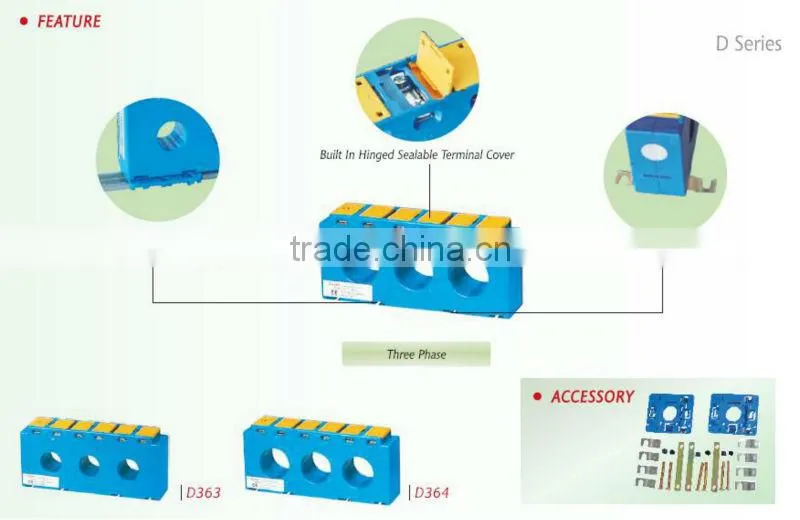

2.Feature
Base mounting
With or without plastic terminal cover
Greatly save space
Primary current from 60A to 630A.
3.Specification
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A
.
4. Packing show
5. Company show

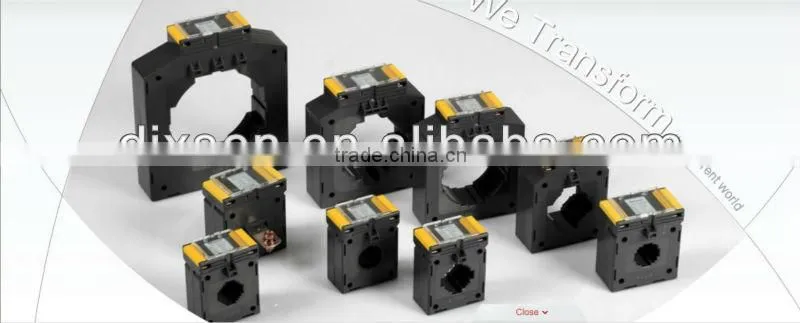

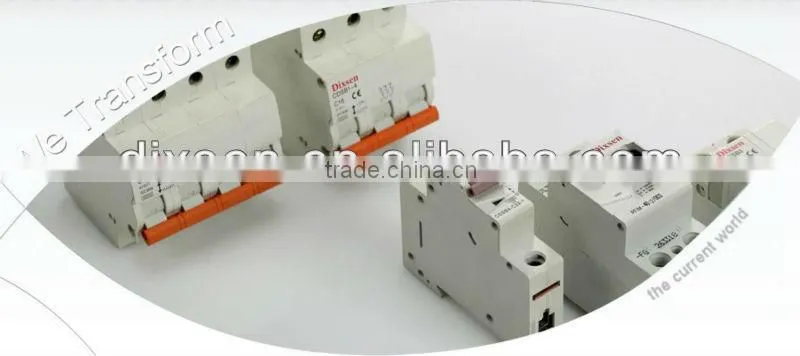

6. Production series
....
