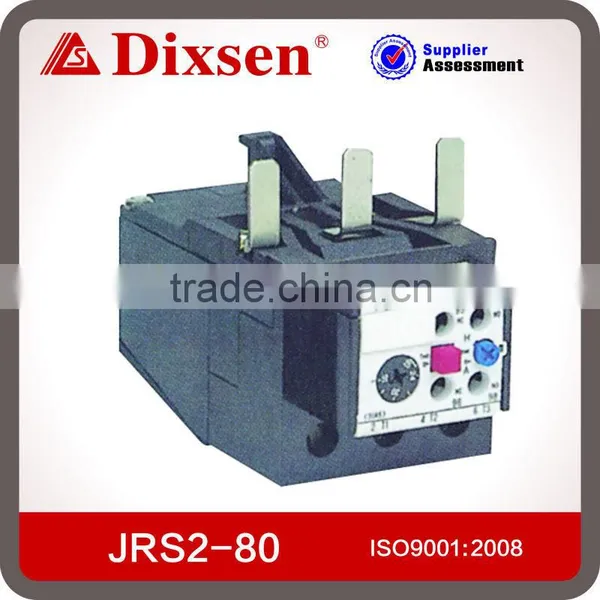

Thermal Relay JRS2-80(for CJX1 AC Contactor)

Thermal Relay JRS2-80(for CJX1 AC Contactor) thumbnail-1
Thermal Relay JRS2-80(for CJX1 AC Contactor) photo-1
US$ 4.63 - 4.95 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dixsen
Model Number:
JRS2 Series
Contact Supplier Request Quote Chat Now
Zhejiang Dixsen Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dixsen
Model Number JRS2 Series
Theory Thermal Relay
Usage Protective
Size Miniature
Protect Feature Sealed
Contact Load High Power

Specifications

1. ISO9001 and ISO14001 approval.
2. CE passed.
3. Professional manufacturer.
4. Reasonable packing.

Thermal relay JRS2-80(for CJX1 AC contactor)

General

A thermal relays connected with a contactor breaks the circuit in order to isolate the motor in case of over load or phase is cut out. The contactor with a thermal relay becomes a much useful device. That protects the consumer against the over current, also protects the contactor against the effects or over heat.

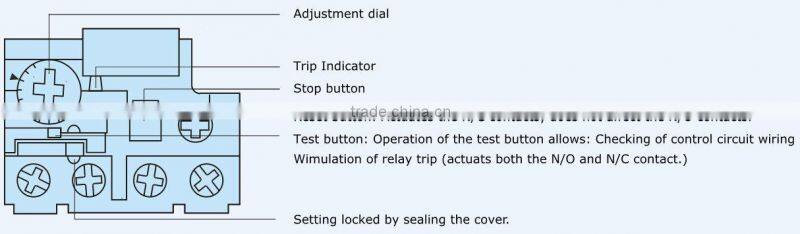

Thermal relay JRS2-80(for CJX1 AC contactor)

Full fill following standard

IEC60947-4-1



How Thermal Relay Works

Each phase of thermal overload relay is related to over current angle. Bimetals pushes the differential bar and opens the circuit when it is heated. Only two bimetals operate when one phase is cut out and the over current angle operates much rapidly due to over current. The mechanism of the thermal relay compensates changes of ambition temperature and prevents the relay against effects of temperature changes. The average value of opening characteristic of thermal current relay under not condition operation is smaller than cold condition. In other words, cold relay open later than hot relay approximately ratio at the determined current. That is important about safety of for the relay and protected device. The relay under hot condition and over loaded 1.5 times should break circuit within 2 min. for motors according to IEC60947-4-1.

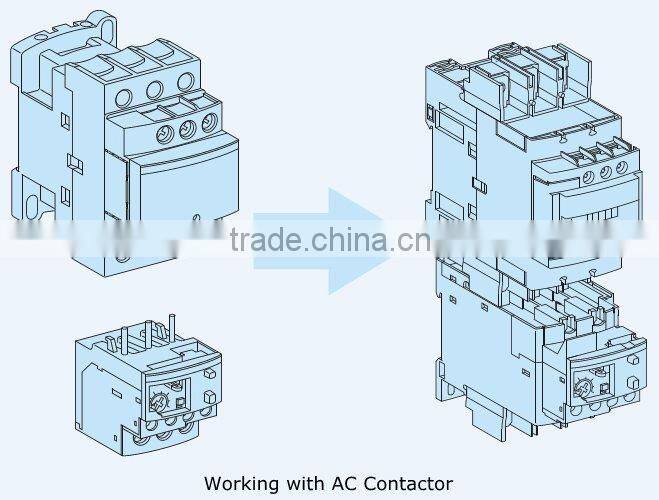

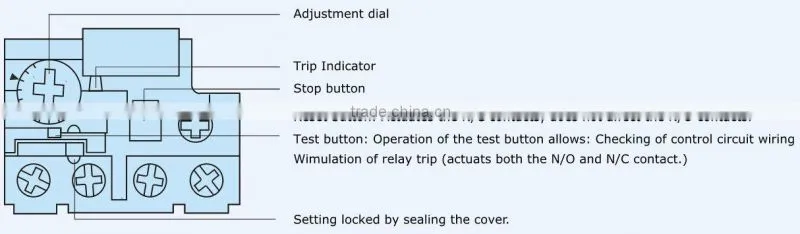

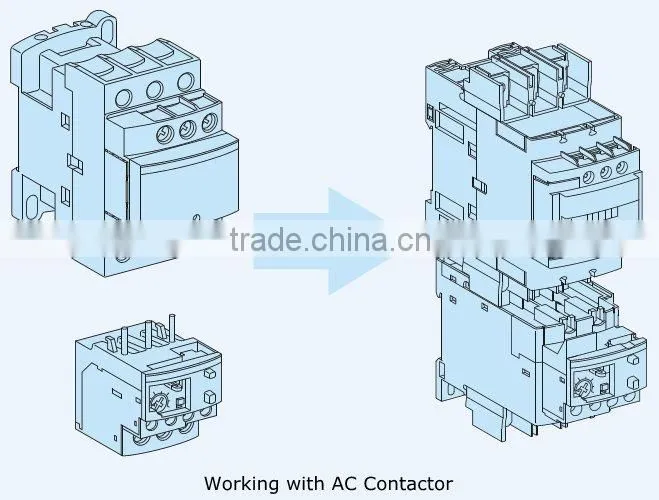

Thermal relay JRS2-80(for CJX1 AC contactor)Thermal relay JRS2-80(for CJX1 AC contactor)

Below is selection form for JRS2 Series Thermal Relay:

Type Setting Range(A) For Contactor Case Qty.(Pcs)
JRS2-80/Z-1G 4~6.3 CJX1-45~85 48
JRS2-80/Z-8A 11~17 CJX1-45~85 48
JRS2-80/Z-2B 12.5~20 CJX1-45~85 48
JRS2-80/Z-2C 16~25 CJX1-45~85 48
JRS2-80/Z-2D 20~32 CJX1-45~85 48
JRS2-80/Z-2E 25~40 CJX1-45~85 48
JRS2-80/Z-2F 32~50 CJX1-45~85 48
JRS2-80/Z-2T 40~57 CJX1-45~85 48
JRS2-80/Z-2P 50~63 CJX1-45~85 48
JRS2-80/Z-2V 57~70 CJX1-45~85 48
JRS2-80/Z-2U 63~80 CJX1-45~85 48
JRS2-80/Z-8W 70~88 CJX1-45~85 48



Model Rated Current(A) Rated Insulation Voltage(V)
JRS2-12.5 14.5 660
JRS2-25 25 660
JRS2-32 36 660
JRS2-45 45 660
JRS2-63 63 660
JRS2-80 88 660
JRS2-135 135 660
JRS2-150 150 660
JRS2-180 180 660
JRS2-400 400 660
JRS2-630 630 660



Feature: JRS2 Series Thermal relay aslso called Overload relay to protect Contactor which is working with.



1. Company show

Thermal relay JRS2-80(for CJX1 AC contactor)



 Thermal relay JRS2-80(for CJX1 AC contactor)



Thermal relay JRS2-80(for CJX1 AC contactor)

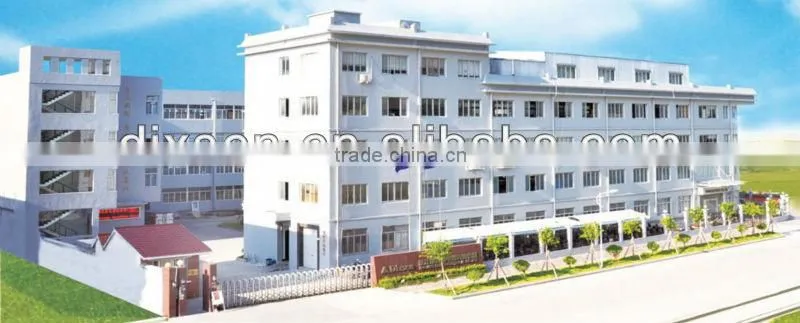

Workshop
