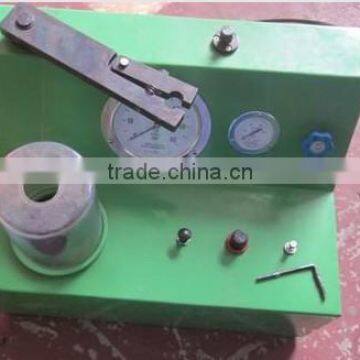

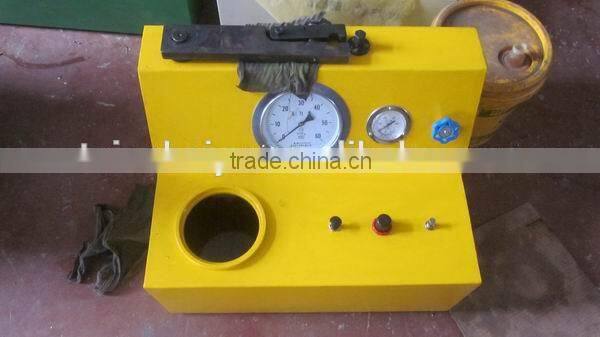

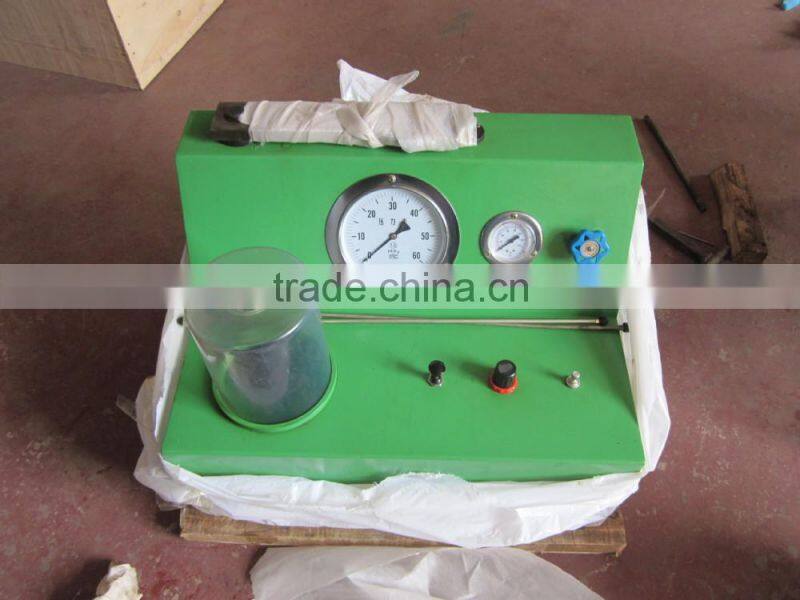

PQ-400 Double Spring Nozzle Tester
Functions and Advantage:
1.Test and calibrate normal injector and diesel double springs injectors.
2.Equipment with a manometric gauge for internal pressure regulation
3. Digital display permits to calibrate the injector opening pressure
4. One shot and continuous spraying test
5.High accuracy with competitive price.
6.Easy to operate and maintain.
Opeartion:
Main Button:
A: Internal pressure meter
B: Air supply meter
C: Air supply throttle
If the throttle whirls in clockwise, quantity of air input will be less, and oil input is less as well. Inverse, the input oil will increase.
D: Governor valve
If the governor valve circumgyrate to the bottom, rate of oil pressure and air pressure is 100:1. For example, when air pressure
7kg, the oil pressure will be 700kg.
E: Air switch valve
The air valve is opened by pulling, and closed by pushing
