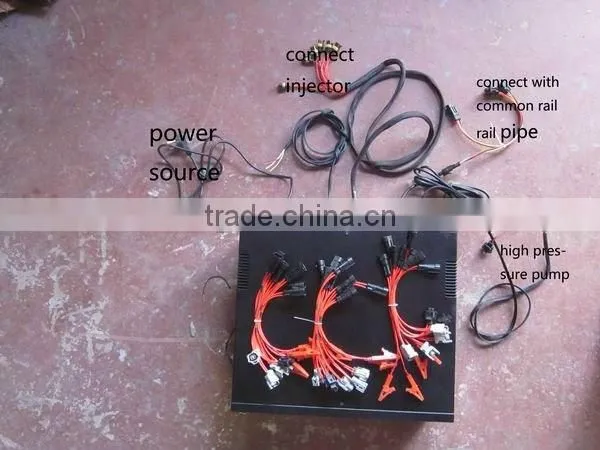

Help CenterCRS3 Diesel Injector and Pump Tester,Full Wire Harness
Related Products
-
PQ-400 Double Spring Nozzle Tester With Air Supply MeterNegotiableMOQ: 1 Set -
PQ-400 Double Spring Nozzle Tester Test Seal of NeedleNegotiableMOQ: 1 Set
-
HY-1 Diesel Nozzle Tester,test Seal of Needle ValveNegotiableMOQ: 1 Set
-
PQ-400 Double Spring Nozzle Tester With Rate of Oil Pressure and Air Pressure is 100:1NegotiableMOQ: 1 Set
-
an Electrical Motor ,CRI700 Common Rail Electronic Injector TesterNegotiableMOQ: 1 Set
Specifications
big screen for displaytest regulator in pump
used with test bench
Continuous injection

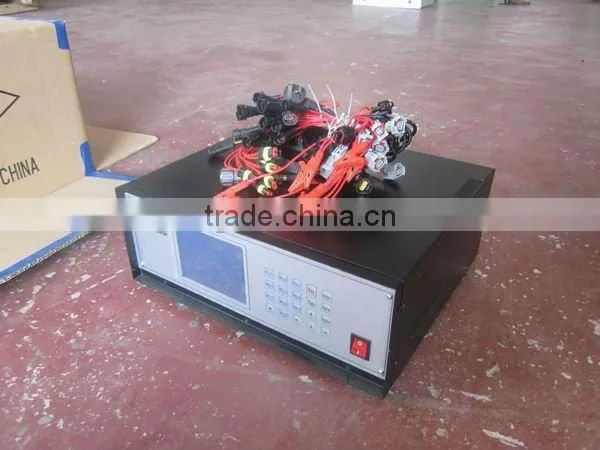

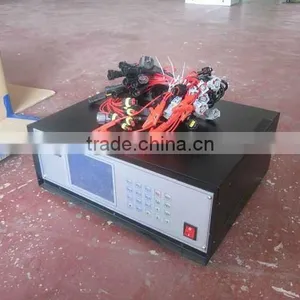

CRS3 Common Rail Diesel Injector and Pump Tester
Bosch,Delphi,Denso common rail injector and pump
1.Simulate signals to drive a CR pump and one CR injector
2.Pump control
Two user adjustable output signals to control two pressure regulators independently, especially for Siemens DCP pumps
Monitoring fuel rail pressure
3.Injector control
Dual drive outputs
Piezo injector made by Siemens
Solenoid injector
High voltage drive for Bosch/Denso injectors
Low voltage drive for Delphi injectors
Adjustable frequency and pulse width
Software based over-pressure protection
Short circuit protection for solenoid driving signals
4.Rich accessories, ready to test Bosch, Denso, Delphi and Siemens injectors and pumps
5.The frequency and the pulse width of the injector driving signal are user adjustable.
6.Adjustable duty cycle for the pump driving signal
