Diesel Nozzle Tester HY-1,For Mechnical Injector
- Qingdao
- T/T Credit Card PayPal
You May Like
-
Fuel Injector Nozzle Tester, Cast iron tester body
-
CRS3 Diesel Injector and Pump Tester,Full Wire Harness
-
CRS3 Diesel Injector and Pump Tester,Full Wire Harness
-
PQ-400 Double Spring Nozzle Tester with Air supply meter
-
PQ-400 Double Spring Nozzle Tester test seal of needle
-
HY-1 Diesel Nozzle Tester,test seal of needle valve
Product Details
Type | Emergency Tool Kit | Certification | ISO9001:2008 | |
Place of Origin | Shandong, China | Brand Name | Haiyu | |
Model Number | HY-1 |
wood package
Product Description
Specifications
nozzle tester must be far away from flame or high temperature placeneedle valve seals
sealing function in response to press

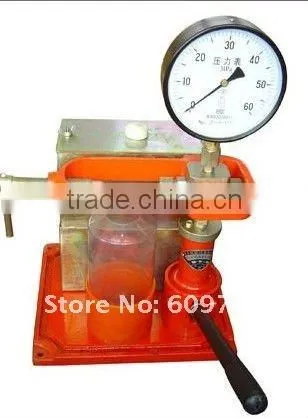

HY-1 Diesel Nozzle Tester
adjust normal injector
It is used to adjust and calibrate the injecting pressure, atomizing quality, injecting angle and needle valve seas of nozzle of diesel ingine in order to ensure cxeelent power and economic performance of diesel engine.
It is suitable for following performance tests.
1. initiative injecting press of injector
2. sound of needle valve vibration
3. spraying shape
4. sealing function of needle valve and nozzle body mating pair
5. sealing function in response to press.
Main technical parameters
1. diameter of pressure gauge 150mm
2. pressure gauge range 0∼60MPa
3. pressure gauge accuracy rating 0.4
4. largest tested pressure 60MPa
5. capacity of fuel tank 1.6L
6. overall dimension (L×W×H ) 250mm×150mm×480mm
7. net weight 13Kg
