train refueling unit with YB pump / mobile refueling unit
Main Features

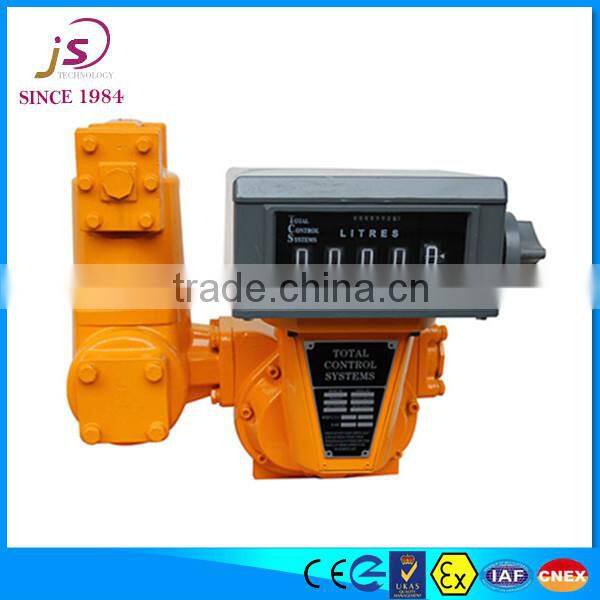

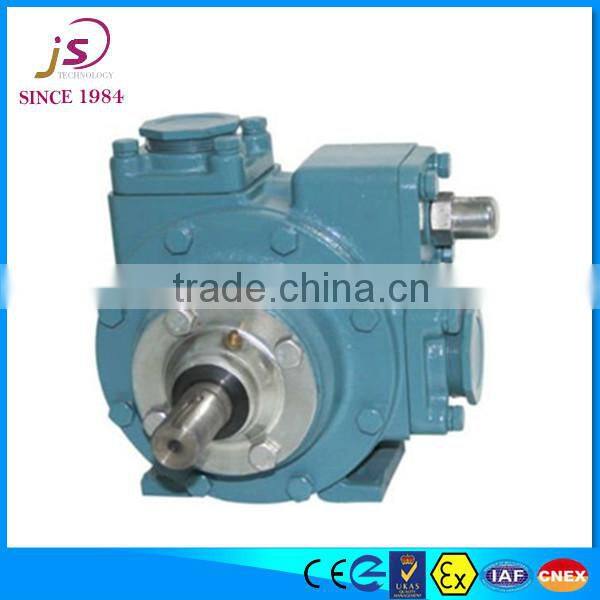

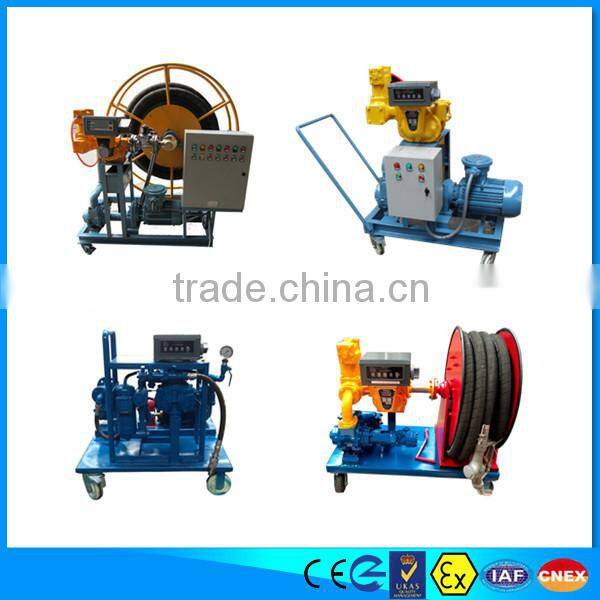

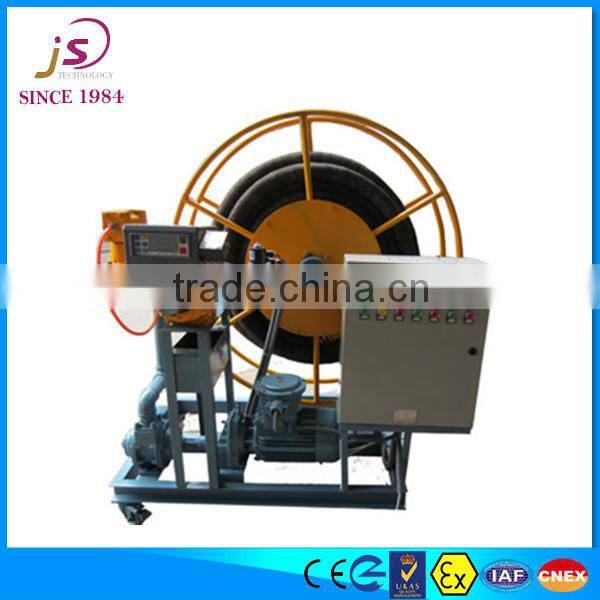

YDJ Series Mobile Fuel Unit , containing a large flow Flowmeter, Pump, Pipe, Mechanical Counter or Electronic Control Systems and Pulse Output etc, is applied to ship, public transportation vehicle, big bus, truck, train, military vehicle, aircraft, with advantage of high flow rate, convenience, long working life, etc.
According to users’ requirements, electronic counter, mechanical preset counter, tubing, tubing dial(or motor-driven tubing dial), nozzle, prompt coupling, etc., are available for Mobile Fuel Unit.
Technical Specification
| Model | YDJ-50 | YDJ-80 | YDJ-100 |
| Flow Rate | 300L/min | 800L/min | 1200L/min |
| Size | 50mm,2'' | 80mm.3'' | 100mm,4'' |
| Accuracy | ±0.2% | ±0.2% | ±0.2% |
| Repeatability | ≤0.1% | ≤0.1% | ≤0.1% |
| Max working pressure | 0.5MPa | 0.5MPa | 0.5MPa |
| Speed | 780r/min | 780r/min | 780r/min |
| Motor | 4Kw,50Hz,380V (220V) | 7.5Kw,50Hz,380V (220V) | 15Kw,50Hz,380V (220V) |
| Current | 8A | 15.4A | 30A |
Packaging: Wooden case
Shipping:
7-15 working days after receiving the payment
Shanghai Jiasong Machine Co., Ltd enjoys the honor being a member of China electrical industrial association. As a high tech corporation, Jiasong has experienced over 30 years in designing, manufacturing and distributing various fuel dispensers, valves, pumps and flow meters, which leads the company to be well-known both at home and abroad.
