Help CenterPetroleum Positive Displacement Vane Meter / Flow Meter for Oil Flow Measuring
Related Products
-
Positive Displacement Flow Meter / Vane MeterUS$ 400 - 700MOQ: 1 Piece -
Positive Displacement Flow Meter / Volumetric Vane MeterUS$ 400 - 700MOQ: 1 Piece
-
Positive Displacement Flow Meter / Vane Meter for GasolineUS$ 400 - 700MOQ: 1 Piece
-
Positive Displacement Flow Meter / Vane Meter for DieselUS$ 400 - 700MOQ: 1 Piece
-
Volumetric Flow Meter / Vane Meter for DieselUS$ 400 - 700MOQ: 1 Piece
Specifications

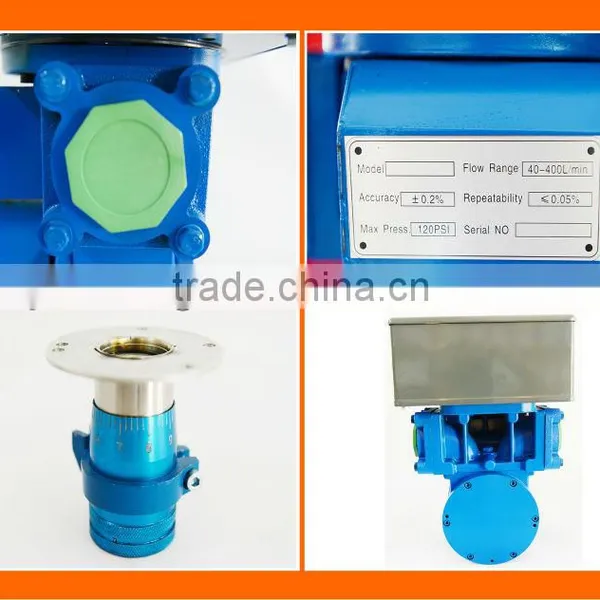

petroleum positive displacement vane meter / flow meter for oil flow measuring is of low lead loss, simple structure, long life.petroleum positive displacement vane meter / flow meter for oil flow measuring
Characteristic:
Stepless adjusting mechanism allow a micro adjustment of the meter;

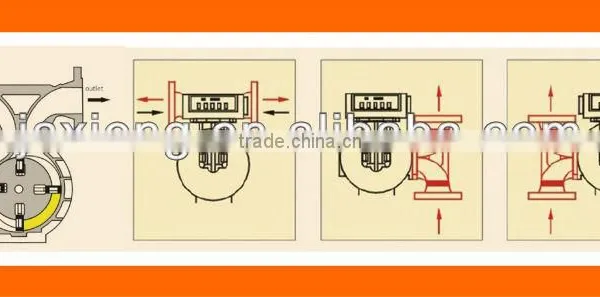

Special designed Manifold in line separates from measuring chamber to avoid stress coming from the installation;
Low pressure loss;
Simple construction : Rotor - blades for easy and low maintenance cost;
Wearing compensation :To maintain a good accuracy all along the years;
Meter also for viscous products : up to 800 Cst.
Materials:
Manifold: steel or Aluminum;
Body: nickelic cast iron;
Covers: Steel;
Rotor: aluminum;
Blades: carbon;
Bearings: stainless steel;
Seals/ gaskets: viton, Buna'N'.
Application:
1. Oil company: refineries, Oil depots, gas station and Tank trucks distribution ;
2. Airports: aircraft refuellers ;
3. Army: depot reception or loading trucks ;
4. Administration (railway companies, public transport) ;
5. Ports: Boats/barges ;
6. Private oil transport companies.
Technical Specification:
Model |
SM80 |
Size |
80mm/3" |
Volume Per Revolution |
2.27L/0.6US Gallons |
Max. Flow Rate |
80m3/H 1333L/min |
Min. Flow Rate |
8m3/H 40L/min, 133.3US Gallons |
Accuracy |
±0.2% |
Repeatability |
≤0.05% |
Max. Operation Pressure |
10Bar / 150PSI / 10.5Kg/cm3 |
Working Temperature Range |
-40°C~+60°C |
Max. Viscosity |
800cps/3850 SSU |
Model |
SM-50-1 |
SM-80-1 |
Dimension |
290*235*400mm |
360*370*400mm |
Net weight |
20kg |
56kg |
Gross weight |
22kg |
58kg |
Package |
1pc/carton |
|

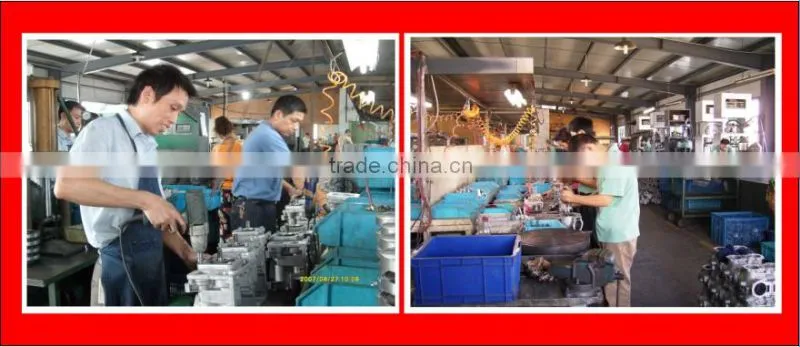

We employ more than 50 senior technicians in different majors, and about 300 experienced workers. Our company has already established a quality guarantee system, as well as a set of after sales service system, to make sure the production and distributing be managed systemically and scientifically.
Jiasong will always offer the high quality products as usual by our leading technology and management to repay our clients. With the principle of 'for all the customers', Jiasong will keep researching and developing new material and technique to offer more and more excellent products and service for you! We're striving for being a famous international high tech enterprise around the world!
Shanghai Jiasong Machine Co., Ltd enjoys the honor to be a member of China electrical industrial association, as well as the cooperation partner of Daqing Oilfield Company, CNPC (China National Petroleum Corporation). As a high tech corporation, Jiasong has experienced over 30 years in designing, manufacturing and distributing various fuel dispensers, valves, drivers and cleaning equipments, which leads the company to be well-known around the whole country as high tech corporation.
As our main products, submersible pump, LPG flow meter, vane pump, valve and polishing machines have possessed a very high market share at home and abroad. Shanghai Jiasong Technology Co., Ltd owns two production bases, Shanghai and Wenzhou. Wenzhou base is named as Zhejiang Jiasong Technology Co.,Ltd. Two bases cover a total area of 20,000 sq.m.
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in No. 6415, North Jiasong Road, Jiading District, Shanghai, China (Mainland).
3.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
4.Q:How about quality control in your factory?

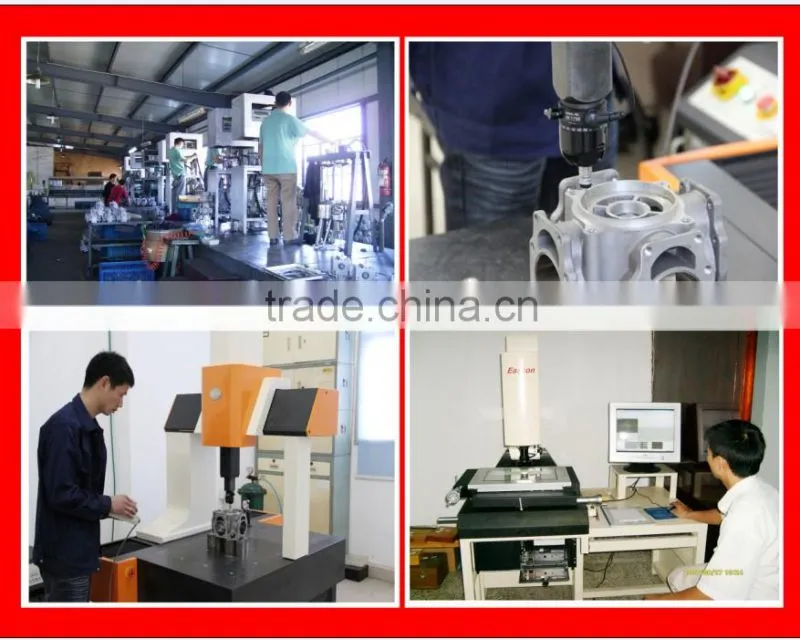

A:"Quality is first, Customers are friends". Every piece of goods is tested strictly one by one before packing and shipping.
We keep goods to meet the standard of CE,EPA, ISO9001:2008.
5.Q:How about guarantee?
A: It's within one year after goods is discharged in the destination. During that period,if some breakdown easily spare parts need to change,my factory can offer.
