positive displacement vane meter / truck vane meter / vane meter SM50
USD $300 - $1,000
/ Piece
1 Piece(Min.Order)
- 200 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin: | China | Brand Name: | JS | Model Number: | SM |
Product Description
Specifications
positive displacement vane meter / truck vane meter / vane meter SM50positive displacement vane meter / truck vane meter / vane meter

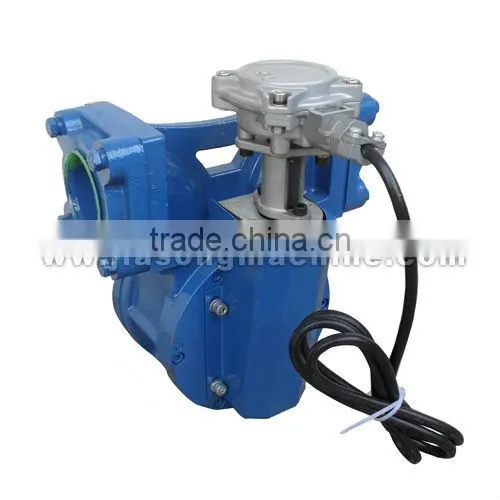

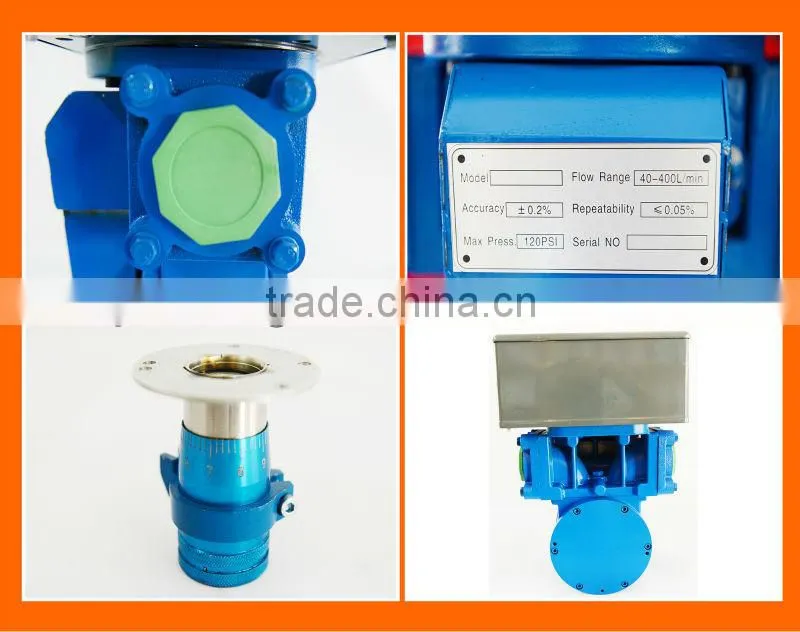

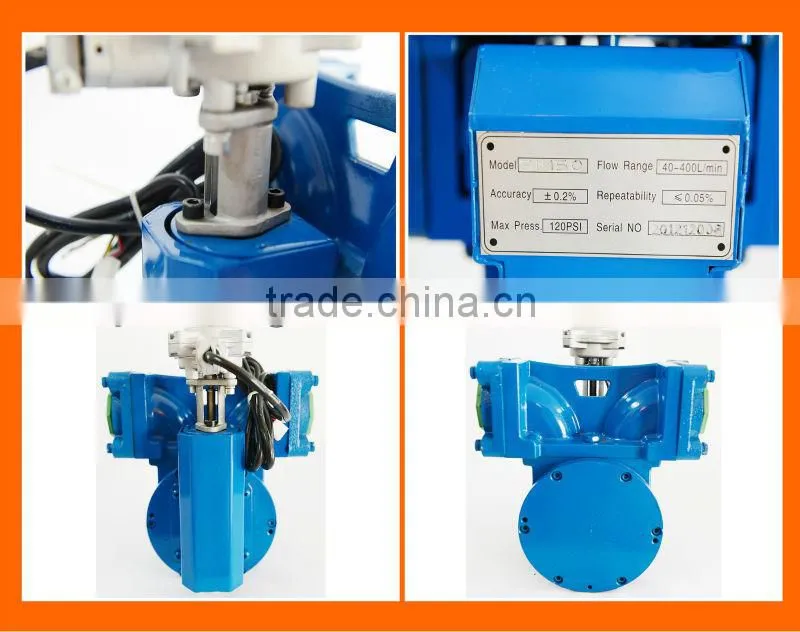

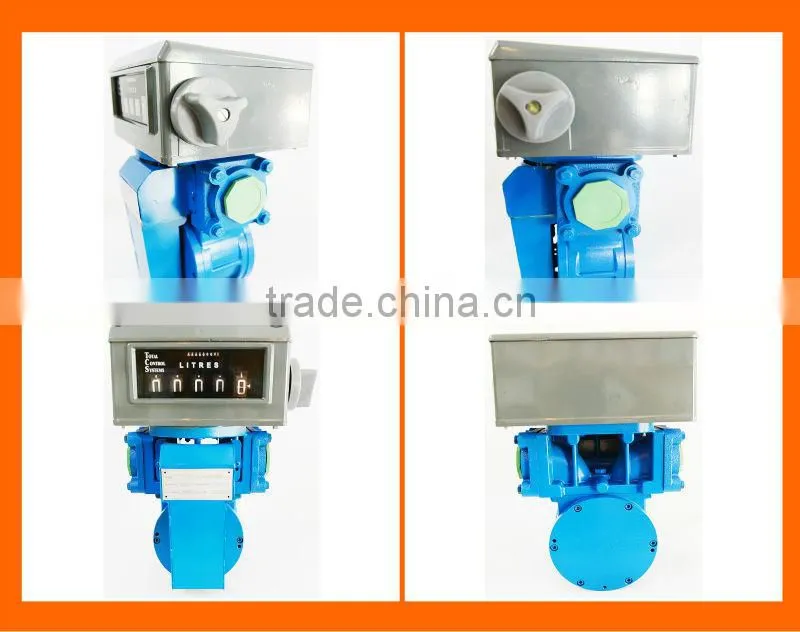

Product Details: SM series positive displacement vane meter
Characteristic:
Stepless adjusting mechanism allow a micro adjustment of the meter;

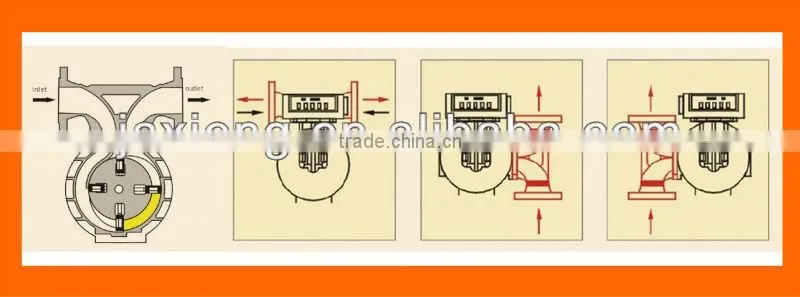

Special designed Manifold in line separates from measuring chamber to avoid stress coming from the installation;
Low pressure loss;
Simple construction : Rotor - blades for easy and low maintenance cost;
Wearing compensation :To maintain a good accuracy all along the years;
Meter also for viscous products : up to 800 Cst.
Materials:
Manifold: steel or Aluminum;
Body: nickelic cast iron;
Covers: Steel;
Rotor: aluminum;
Blades: carbon;
Bearings: stainless steel;
Seals/ gaskets: viton, Buna'N'.
Application:
1. Oil company: refineries, Oil depots, gas station and Tank trucks distribution ;
2. Airports: aircraft refuellers ;
3. Army: depot reception or loading trucks ;
4. Administration (railway companies, public transport) ;
5. Ports: Boats/barges ;
6. Private oil transport companies.
Technical Specification:
Model | SM50 |
Size | 50mm/2 " |
Volume Per Revolution | 0.4L/0.08US Gallons |
Max. Flow Rate | 24m3/H 400L/min |
Min. Flow Rate | 2.4m3/H 40L/min, 10.5US Gallons |
Accuracy | ±0.2% |
Repeatability | ≤0.05% |
Max. Operation Pressure | 8Bar/120PSI/8.3Kg/cm3 |
Working Temperature Range | -40°C~+60°C |
Max. Viscosity | 800cps/3850 SSU |
