Specifications
LPG Multistage pump / centrifugal pump with EX electronic motor is a centrifugal pump used for transferring LPG.
LPG Multistage pump / centrifugal pump with EX electronic motor
Main Features
DB-65 multistage pump is a centrifugal pump, which adopts horizontal structure of 6 classes. And the shaft adopts mechanical seal without cooling. The pump is used for transferring LPG, especially it is high differential pressure, low NPSH and the gas of LPG up to 50% when pumping LPG from underground tank. The suction end of the pump adopts precompression turbine, which makes it better in use under the requirement of low NPSH. So this pump can work under the condition of bad suction.
Application
LPG tank filling
Pumping LPG from underground storage
Bulk filling operations
Loading/unloading of oil tank trucks
Vapor recuperation
Technical Specification
| direction of rotation | anti-clockwise facing the end of of the pump drive shaft. |
| Max. pressure | 40bars at 120°C |
| speed | 1450rpm |
| power | 380V,50Hz,4KW |
| ambient temperature | 20°C-+60°C |
| class | 6 |
| connecting flanges | DIN2501,PN40 |
| bearings | slip bearing at the pump end.ball bearing at the drive end |
| lubrication | The slip bearing at the pump end lubricated by the pump liquid drive the ball bearing to self lubricate. |
Performance Data(Density = 1kg/1)
| FLOW rate | DB-65 | NPSH 1(m) | NPSH 2(m) | |
| 1.0m3/H | H(Kw) | 6 | 1.35 | 0.17 |
| P(m) | 243 | |||
| 1.5m3/H | H(Kw) | 5.5 | 1.25 | 0.17 |
| P(m) | 219 | |||
| 2.5m3/H | H(Kw) | 4.35 | 1.1 | 0.17 |
| P(m) | 169 | |||
| 3.5m3/H | H(Kw) | 3.4 | 0.95 | 0.17 |
| P(m) | 120 | |||
| 4.5m3/H | H(Kw) | 2.65 | 0.95 | 0.18 |
| P(m) | 76 | |||

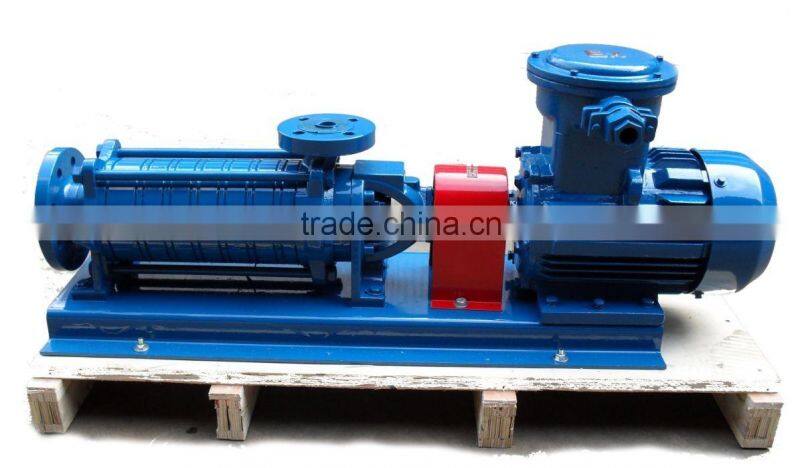

Product Images: DB-65 Coupling Drive
Packaging: wooden case
Shipping:
7-15 working days after recieving the payment
Products sent by sea, air or road( road only for the 5 centrial Asian countries)
We employ more than 50 senior technicians in different majors, and about 300 experienced workers. Our company has already established a quality guarantee system, as well as a set of after sales service system, to make sure the production and distributing be managed systemically and scientifically.
Jiasong will always offer the high quality products as usual by our leading technology and management to repay our clients. With the principle of 'for all the customers', Jiasong will keep researching and developing new material and technique to offer more and more excellent products and service for you! We're striving for being a famous international high tech enterprise around the world!
Shanghai Jiasong Machine Co., Ltd enjoys the honor being a member of China electrical industrial association. As a high-tech corporation, Jiasong has experienced over 30 years in designing, manufacturing and distributing various fuel dispensers, valves, drivers and cleaning equipments, which leads the company to be well-known around the whole country as high-tech corporation.
As for our main products, we have Industrial flowmeter & pump, Fuel dispenser and parts, LPG series, Oil measuring tools etc; they have possessed a high market share both at home and abroad. We have two production bases, Shanghai and Wenzhou. Wenzhou base is named as Zhejiang Jiasong Technology Co.,Ltd. Two bases cover a total area of 20,000 sq.m.

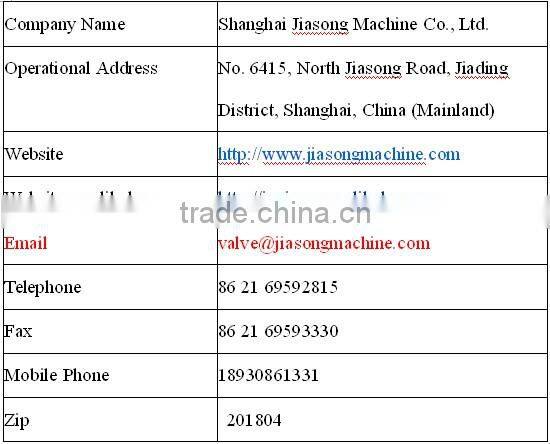

Contact information
Our Location
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in No. 6415, North Jiasong Road, Jiading District, Shanghai, China (Mainland).
3.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
4.Q:How about quality control in your factory?
A:"Quality is first, Customers are friends". Every piece of goods is tested strictly one by one before packing and shipping.
We keep goods to meet the standard of CE,EPA, ISO9001:2008.
5.Q:How about guarantee?
A: It's within one year after goods is discharged in the destination. During that period,if some breakdown easily spare parts need to change,my factory can offer.
