Fuel Pump Testing and Calibration Machine Hot Selling Machine

Name: Fuel Pump Testing and Calibration Machine Hot Selling Machine
Brand: Haiyu
SKU: 114684649
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Engine Analyzer

Voltage:

220V/380v

Power:

11kw

Taian Haiyu Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Engine Analyzer

Voltage 220V/380v

Power 11kw

Certification ISO9001:2008 Certificate CE certificate

Applicable Models diesel vehicles

Place of Origin Shandong, China

Brand Name Haiyu

Model Number HY-WKD

Specifications

HY-WKD fuel injection pump test bench
1.power:11kw
2.high precision
3.reliable performance
4.precise measurement

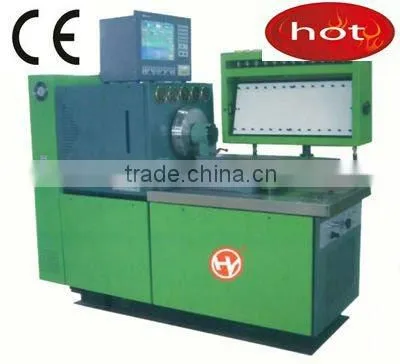

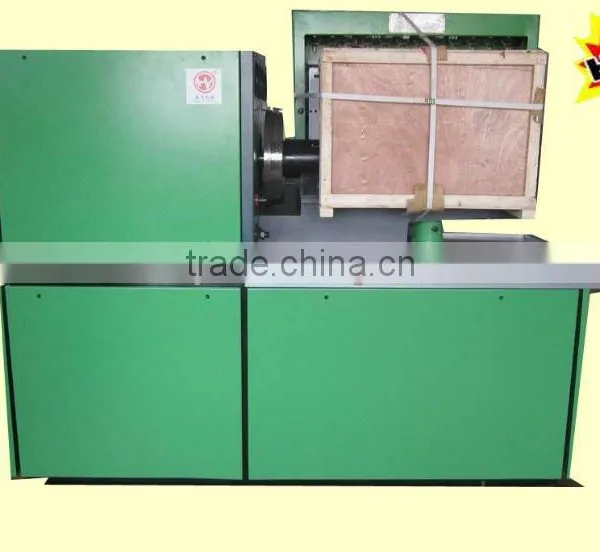

HY-WKD Fuel Pump Testing and Calibration Machine

Function parameters of computers and digital tube dual display

Position of operation: Two sides

Graduates: 45CC

Volume of oil tank: 60L

Temperature stabilization: 40+/-2oC

Test oil filtering unit: 5u

DC. Supply: 12/24V

Screen and date display: SpeedCountsTemperatureAhead of angle

Power	11KW/15KW
Speed Range	stepless frequency conversion, multi-gear speed overhead, speed :50-400 circle/min or at will
Number of station can be debugged	12
Fuel supply	0-0.4MPa(low pressure) 0-4MPa(high pressure)
Overall dimension	length:2100mm width:700mm height:1470mm
Net weight	1000kg
Function	debugging the uniformity and quantity of the oil supply of each cylinder in injector pump
	debugging the test point and interval angle of oil supply of injector pump
	debugging the performance of different speed governor
	checking the tightness of injector pump
	Testing the quantity of oil return of distribution pump
	checking pressure compensator of distribution pump
	measuring the pressure of pump chamber
	measuring the advance angel
	measuring the travel of gear lever
