Help CenterHY-WK Fuel Pump Test Bench, Digital Indicator Control,Hot Selling
Related Products
-
HY-NK High Performance Testing Equipment: Diesel Injection Pump Test BenchUS$ 3,000 - 5,000MOQ: 1 Set -
HY-NK High Performance Testing Equipment: Diesel Injection Pump Test BenchUS$ 3,000 - 5,000MOQ: 1 Set
-
Deisel Fuel Injection Pump Test Bench/computer ControllerUS$ 3,000 - 5,000MOQ: 1 Set
-
Bosch in Line Pump/ Fuel Injection Pump Test BenchUS$ 3,000 - 5,000MOQ: 1 Set
-
Bosch in Line Pump/ Fuel Injection Pump Test BenchUS$ 3,000 - 5,000MOQ: 1 Set
Specifications
1.HY-WK fuel pump test bench2.simple operation
3.for VE pump
4.accurate measurement
5.380V,3phase,high quality

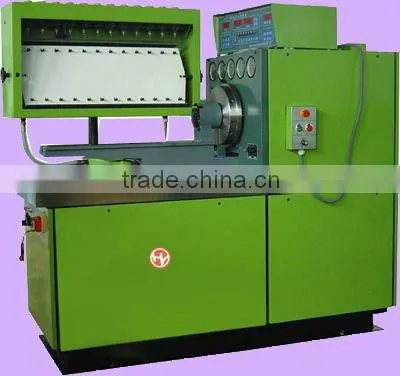

HY-WK fuel injection pump test bench
( in-line pump and distributor pump test bench )
Main function:
- debugging the uniformity and quantity of the oil supply of each cylinder in injector pump
- debugging the test point and interval angle of oil supply of injector pump
- debugging the performance of different speed governor
- checking the tightness of injector pump
- Testing the quantity of oil return of distribution pump
- checking pressure compensator of distribution pump
- measuring the pressure of pump chamber
- measuring the advance angel
- measuring the travel of gear lever
Configuration:
- Power:11KW/15KW
- Speed Range: stepless frequency conversion, multi-gear speed overhead, speed :50-400 circle/min or at will
- the number of station can be debugged:12
- fuel supply:0-0.4MPa(low) 0-4MPa(high) filtration:10um
- fuel can be cooled by air and heated by heater. The temperature can be displayed in the screen and controlled automatically.
- overall dimension:length:2100 width:700 height:1470
- net weigh:1000kg
FUNCTIONS
-
1. Frequency-changing and speed-regulation
2. Measurement of the delivery at various rotation speeds
3. Checking of each line's injection timing with static
4. Checking of the mechanical speed governors
5. Checking of the electromagnetic vale of distributor pump
6. Checking of the pneumatic speed governors
7. Checking of the pressure compensators
8. Measurement of the reflux delivery of distributor pump
9. Measurement of the distributor pump's body internal pressure (special order)
10. Checking of sealing of the in-line injection pump body -
1.Operating position can be on both sides
2.tank capacity:45L
3.temperature stabilization:40°C±2°C
4.air pressure:-0.03—0.3 MPa
5.test oil filtering unit:5u
6.DC supply: 12V/ 24V
7.Three figures show that the fuel temperature control
8.feed pressure: Low pressure 0-0.4Mpa high pressure 0-4Mpa
9.4-digit display injection advance angle
10.displayed: Pressure Vacuum
11.adjustable rotation speed range:0-4000rpm
12.3-phase power supply:220V/60Hz 380v/50hz
13.overall dimensions:2100×850×1700(mm)
weight:700kg
15. center height:125mm flywheel:0.8kgm2
16.output :7.5kw 11kw 15KW 18.5kw
digital display:
working picture:
