Specifications
1. fuel injection pump test bench2.CE certificate
3.perfect design
4.good reputation
5.distributor pump test bench

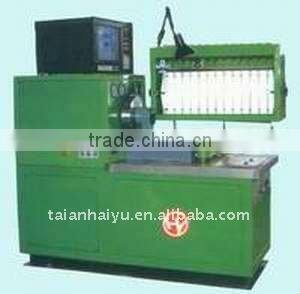

HY-NK Fuel Injection Pump Test Equipment
Power |
11kw/15kw |
Speed range |
stepless frequency conversion, multi-gear speed overhead |
Speed range |
50-400 rpm or at will |
the number of station can be debugged |
12 |
fuel supply |
0-0.4MPa(low pressure) 0-4MPa(high pressure) |
Filtering precision |
10um |
Fuel system |
using radiator, air temperature display and automatic control |
overall dimension |
1800×750×1410(mm) |
net weight |
1000kg |
Main function:
1.Measurement of each cylinder delivery at any speed.
2.Test point and interval angle of oil suppply of injection pump.
3.Adjusting the performance of different mechanical governor.
4.Checking of the sealing of injection pump.
5.Measurement of oil return of distributing pump.
6.Checking of the pressure compensatory device of distributor pump.
7.Measurement of the internal pressure of distributor pump.
8.Measurement of the advance angle.
9.Measuring the travel meters of gear lever.
